48
EN

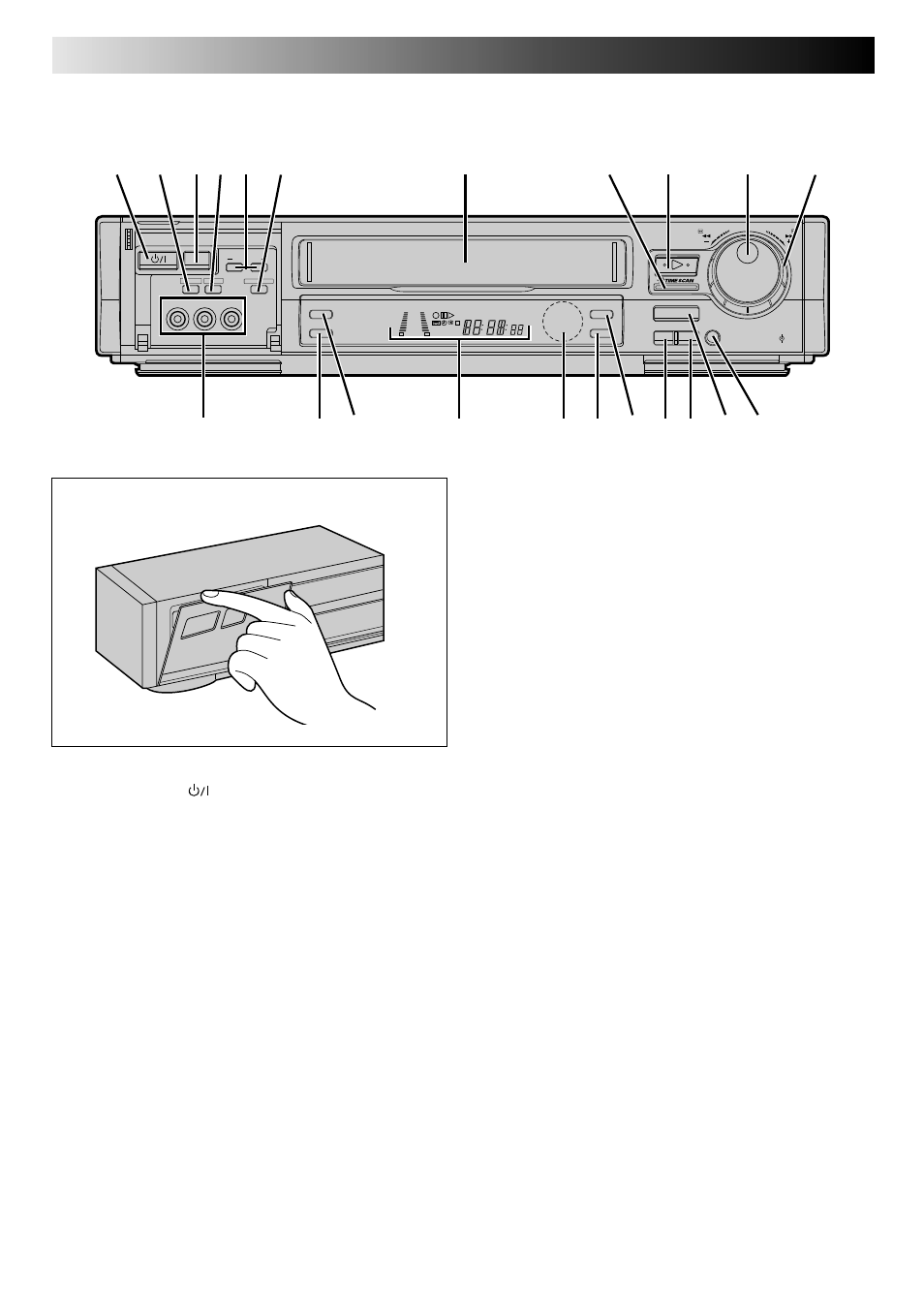

FRONT VIEW
INDEX
SLO W SLOW
5 / 8
¡ 1 q
6
VIDEO
TIMER
(MONO) L–AUDIO–R
TV PROG
3R PICTURE
AUTO SP/LP TIMER SP/LP TV PROG/
JOG
SHUTTLE
A. DUB SPATIALIZER INSERT
8
REW FF
+8
4
0
6 10 –20dB
NORM L R
M
SP LP EP
REMAIN
REVIEW
34 6 2 5 7 0 9 8 1 !
@ ^ & # $ % * ( ) q w
Open the lid to access covered connectors and buttons.
1 STANDBY/ON Button
੬ pg. 4
2 INSERT Button
੬
pg. 37
3 TIMER Button
੬ pg. 25, 27
4 A. DUB [Audio Dubbing] Button ੬ pg. 35
5 TV PROG +/– Buttons
੬
pg. 18
6 SPATIALIZER Button
੬
pg. 14
7 Cassette Loading Slot
8 TIME SCAN Indicator
੬
pg. 16
9 PLAY Button
੬
pg. 10
0 TV PROG Dial
੬
pg. 18
JOG Dial
੬
pg. 11
! TIME SCAN SHUTTLE Ring
੬
pg. 16
@ VIDEO/AUDIO Input Connectors
੬
pg. 34
# AUTO SP/LP TIMER Button
੬
pg. 29
$ 3R PICTURE Button
੬
pg. 12
% Display Panel
੬
pg. 49
^ Infrared Beam Receiving Window
& RECORD Button
੬
pg. 18
* PAUSE Button
੬
pg. 11
( Rewind [REW] Button
੬
pg. 10
) Fast Forward [FF] Button
੬
pg. 10
q STOP/EJECT Button
੬
pg. 10
w SP/LP Button
੬
pg. 18
