Torretta™ 36 Whirlpool Bath
Model: EH95
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
EH95 Torretta™ Whirlpool Bath
Right Hand
• Left hand Drain Location
• Accessories / Hardware:
Trim Kit: 2 HTA Jet Rings #P412
Trim Kit: 2 HTC Jet Rings #P413
Rotary Drain Kit, 30” Cable #K606
Trim Kit: 2 BMH Jet Rings #J869
Oval Trim Kit #N557
Trim Kit: 2 Neck Jet Rings #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifications
Dimensions
72” L x 35-1/8” W x 22-7/8” H1 x 21” H2 x 23-1/2” H3
(1829 mm) L x (892 mm) W x (581 mm) H1 x (533 mm) H2 x (597 mm) H3
Drain/Overflow
A: 18-3/16” (459 mm) B: 15” (381 mm)
Cutout
Template Provided P/N: P652000
Total Weight
948 lb (430 kg) / 54 lb/sq. ft. (264 kg/m2)
Operating Gallonage
70 U.S. Gal. (265 Liters)
Product Weight
115 lb (52 kg)
Skirt Mounting
Not Available
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
72"
36"
18"
6-3/4"
15" X 4"
Heater
Motor
Opt. Service Access
12" H x 18"
L
Service Access
15-1/4"
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
SIDE VIEW END VIEW
H1
H2
2"
(51 mm)
H3
W
L
TORRETTA 36
(Heater)
(Motor)
MAX. 1/2"
#FS31 12/06
DRAIN/OVERFLOW
A
B

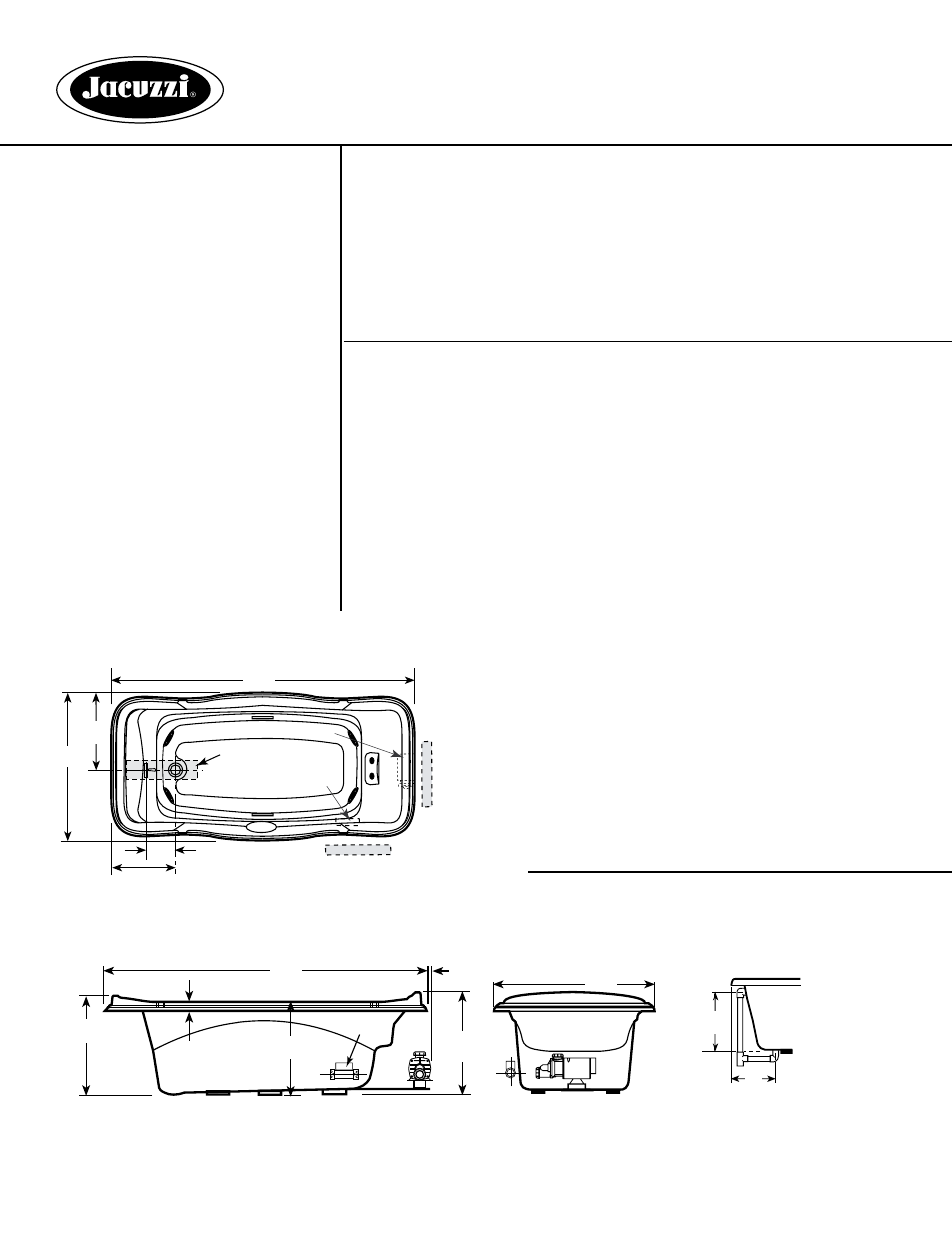

Product Shown: Torretta™ Whirlpool Bath Right Hand Shown Model: EH95
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
