Page 7
- 7 -

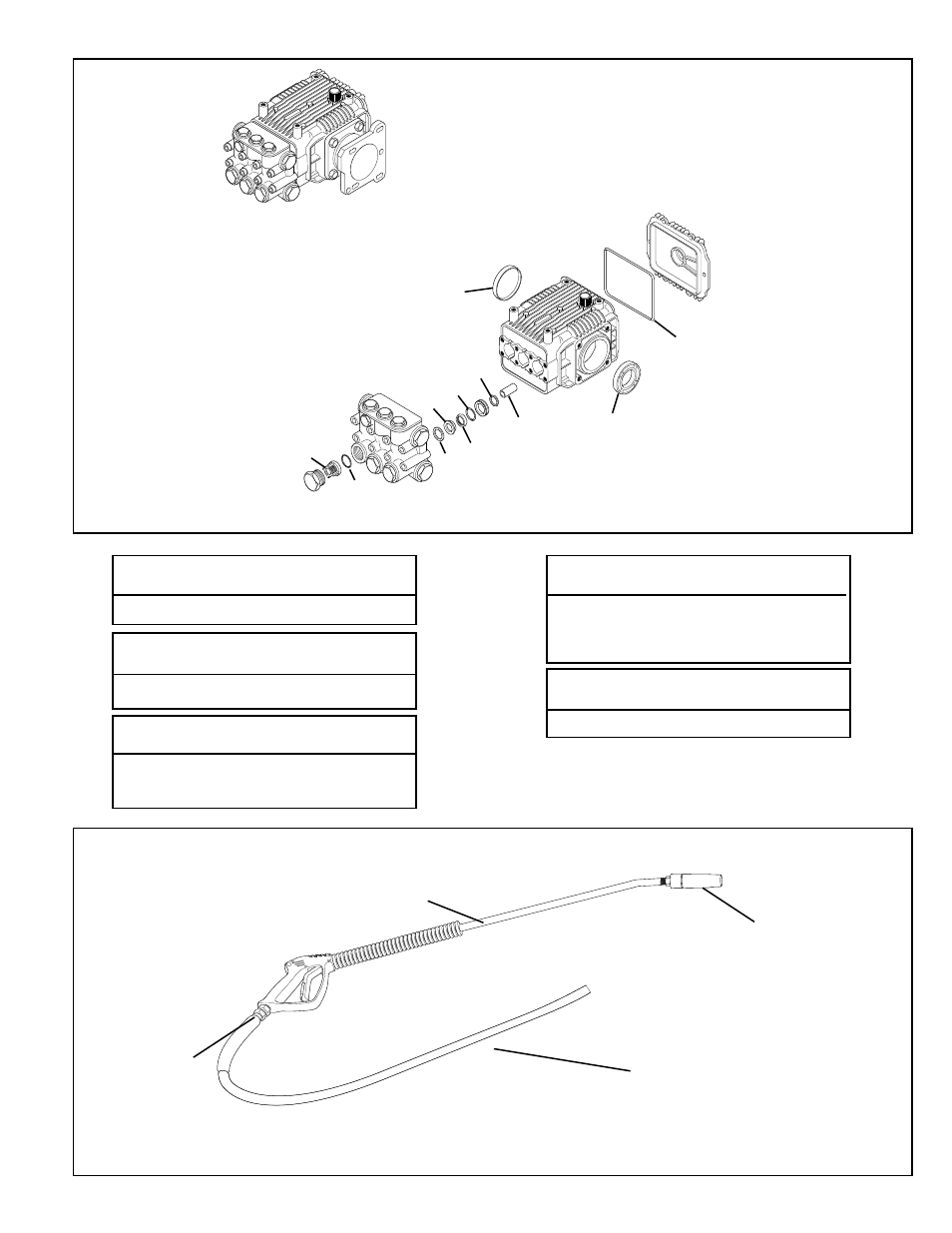

FIGURE 18
Gun, Lance, and Nozzle, Replacement Components
Piston Kit PMKIT2746
Ref.
Description
Qty.
8
Piston
3
Complete Pump
Part No. PMXMA4G20ESX
1
2
3
4
7
5
6
8
9
10
11
Oil Seal Kit PMKIT2787
Ref.
Description
Qty.
10
Cap
1
11
O-ring
1
9
Seal
1
7
Seal
3
Valve Kit PM34300424
Ref.
Description
Qty.
1
Complete Valve
6
2
O-ring
6
Cup Spreader Kit PMKIT2745
Ref.
Description
Qty.
3
Support Ring
3
Water Seal Kit PMKIT2747
Ref.
Description
Qty.
4
Gasket
3
6
O-ring
3
5
Gasket
3
FIGURE 17
Service Parts for Pressure Pump
Gun
PM33810032
Lance
PM3365000436
Nozzle
PM332420015
Replacement Hose
Order direct by calling:
1-877-535-5336
Part No. 851-0007
