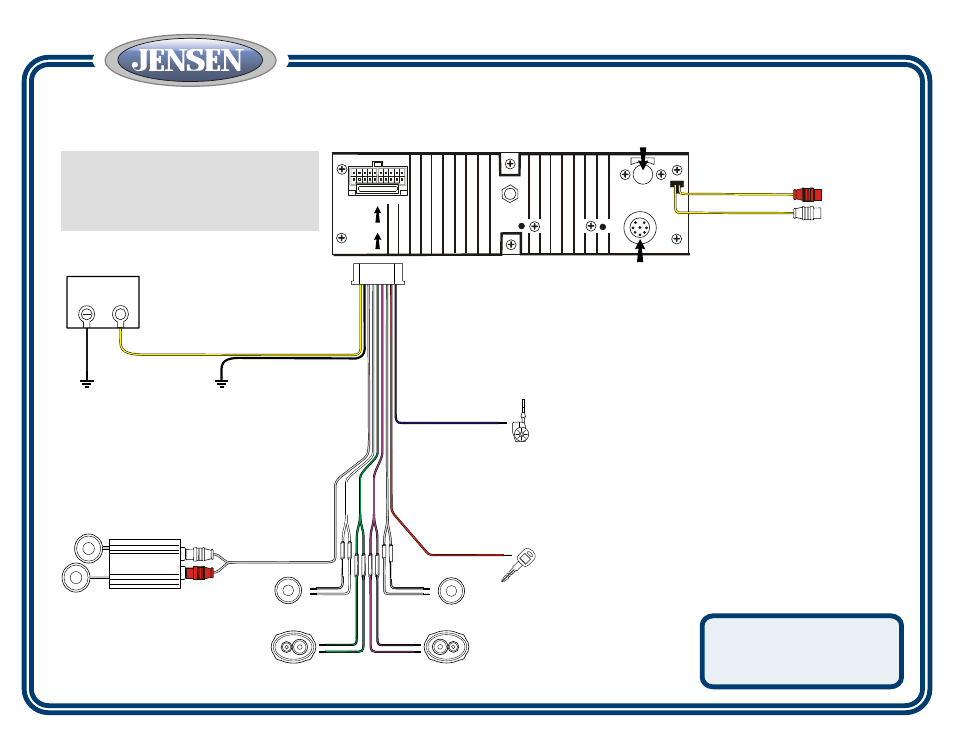

CD2610 Receiver Quick Start Guide
CHASSIS GROUND
Connect the red wire to the factory
Accessory or Ignition wire, which
receives power when the key is
turned on.
ACCESSORY
POWER ANTENNA/
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head
unit is turned on. Connect the blue wire to
a motorized antenna or to an amplifier.
BATTERY
RCA OUTPUT
Connect to an
optional amplifier.
ANTENNA JACK
Connect to the factory or aftermarket antenna lead. (Optional
extensions or adapters may be necessary depending
on the type of vehicle you have.)
)
-
(
)
(+
Connect the black wire to the factory ground wire. If a
factory ground wire is not provided, locate a clean,
unpainted metal part of the dash and secure the ground
wire with a "ring" terminal and a sheet metal screw.
Connect the yellow wire to the battery
or 12 volt power source that is always
live. This wire MUST be connected
for the radio to work.
AMP
Need help?
For technical assistance, call
the Jensen customer
support line at 1-800-323-4815.
SPEAKERS
Left Front
Right Front
Left Rear
Right Rear
AUXILIARY INPUT
CD CHANGER
CONNECTOR
IMPORTANT: Incorrect wiring connections
can damage the unit. Follow the wiring
instructions carefully, or have the
installation handled by an experienced
technician.
10A
