5
U
SING
Y
OUR
C
OOKTOP ,
CONT
.

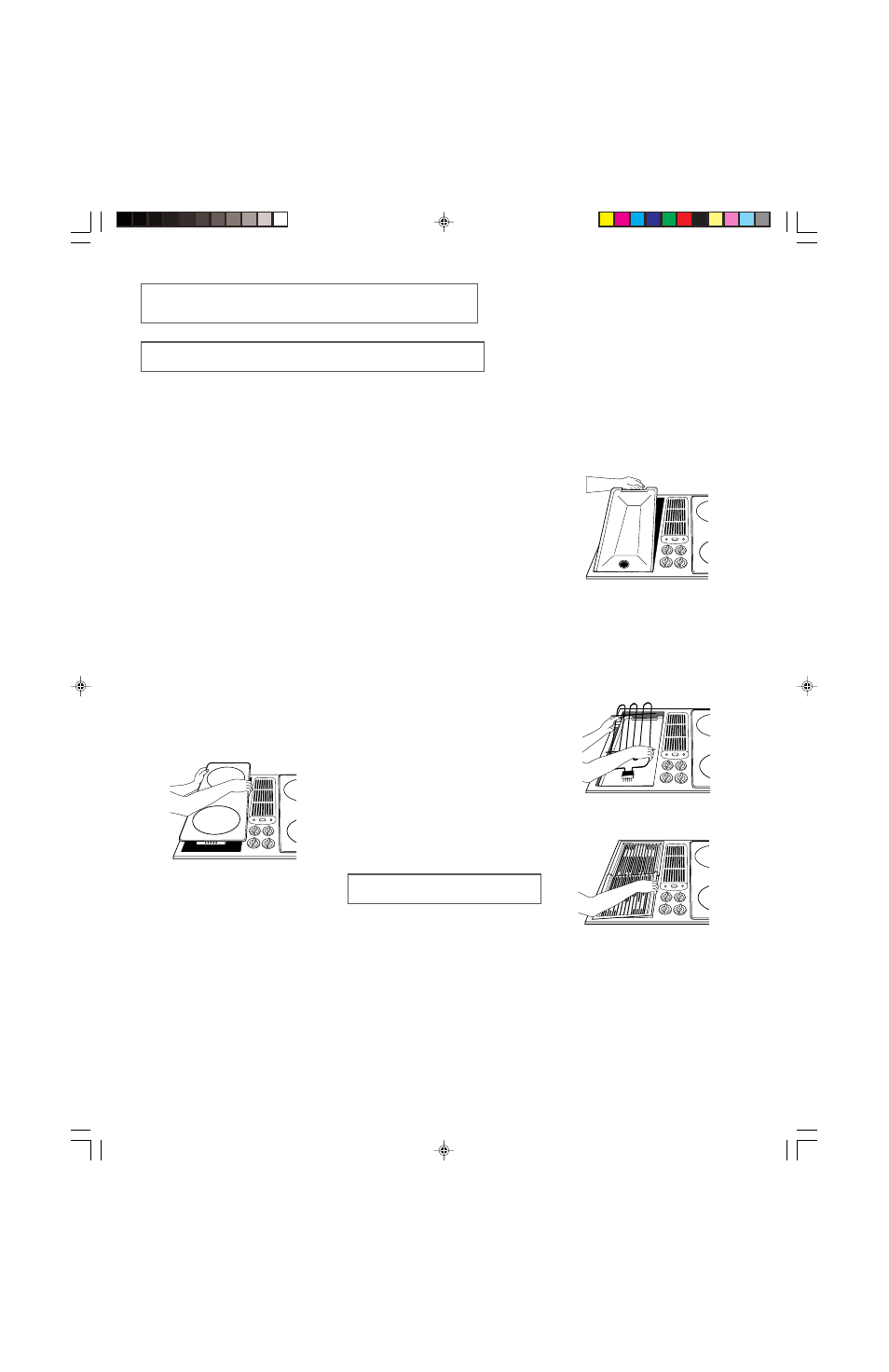

TO REMOVE CARTRIDGES
1. Controls must be Off and the
cartridge should be cool.
2. Lift up the edge of the cartridge until
top of cartridge clears the opening
on the cooktop by about 2 inches.
(Lifting the cartridge too high while
still engaged in the receptacle could
damage the terminal plug.)
3. To disengage terminal, hold
cartridge by the sides and pull away
from the terminal receptacle. Lift out
when fully unplugged.
4. Do not stack cartridges where they
may fall or be damaged. Never store
other materials on top of the glass-
ceramic cartridges since this could
damage or scratch the surface.
H
OME
C
ANNING
Canning should be done on the
conventional coil cartridge only.
Canning element accessory, Model
A145A, makes it possible to use large
oversized canners with the conventional
coil cartridge.
For additional information, refer to the
user’s guide packaged with your
cartridge.
Cooktop cartridges, either conventional
coil, halogen or radiant element, can be
installed on either side of the downdraft
air grille on models JED8230 and
JED8345. Model JED8130 will accept an
optional cartridge on the left side only.
(See page 10 for all available cartridges
and accessories, and their model
numbers.)
TO INSTALL CARTRIDGES
1. If the grill grates, element, and/or
basin pan are in place, remove
before installing a cooktop cartridge.
Clean porcelain basin of any grease
accumulation. (See page 9 for
cleaning recommendations.)
2. To install any of the optional cooktop
cartridges, be sure controls are
turned Off and the cartridge is cool.
Position the cartridge terminal plug
towards the terminal receptacle.
This receptacle is located at the front
of the left side and at the back of the
right side of the cooktop.
3. With the back raised, slide the
cartridge towards the receptacle
until the cartridge terminal plug is
completely engaged.
4. Lower the opposite end of the
cartridge into the cooktop until it is
flush with the surface. Your cooktop
is now ready to use.
The grill accessory consists of two black
grill grates, a grill element and a basin
pan. The grill can be installed on either
side of the downdraft air grille on
models JED8230 and JED8345. Model
JED8130 will accept the grill on the left
side only. NOTE: The far right bay on
Model JED8345 will accept cooktop
cartridges only.
C
OOKTOP
C
ARTRIDGE
I
NSTALLATION
G
RILL
I
NSTALLATION
TO INSTALL GRILL
1. Before installing grill components, be
certain controls are Off.
2. Place the basin liner pan into the
empty basin.
3. Position the grill element with the
terminal plug towards the terminal
receptacle. This receptacle is located
at the front of the left side of the
cooktop. Slide the element towards
the receptacle until the terminal plug
is completely engaged and all four
supports rest on the sides of the basin.
4. Place the grill grates on the top of the
cooktop.
TO REMOVE GRILL
1. Be sure controls are Off. Remove grill
components when they are cool.
2. To remove grill element, pull away
from receptacle until it is unplugged.
(Note: Lifting the element more than
2 inches above the cooktop surface
while it is engaged in the receptacle
could damage the terminal plug.)
