CM-141MCL/PMCL/-RA / CB-141MCL/PMCL/-RA
25

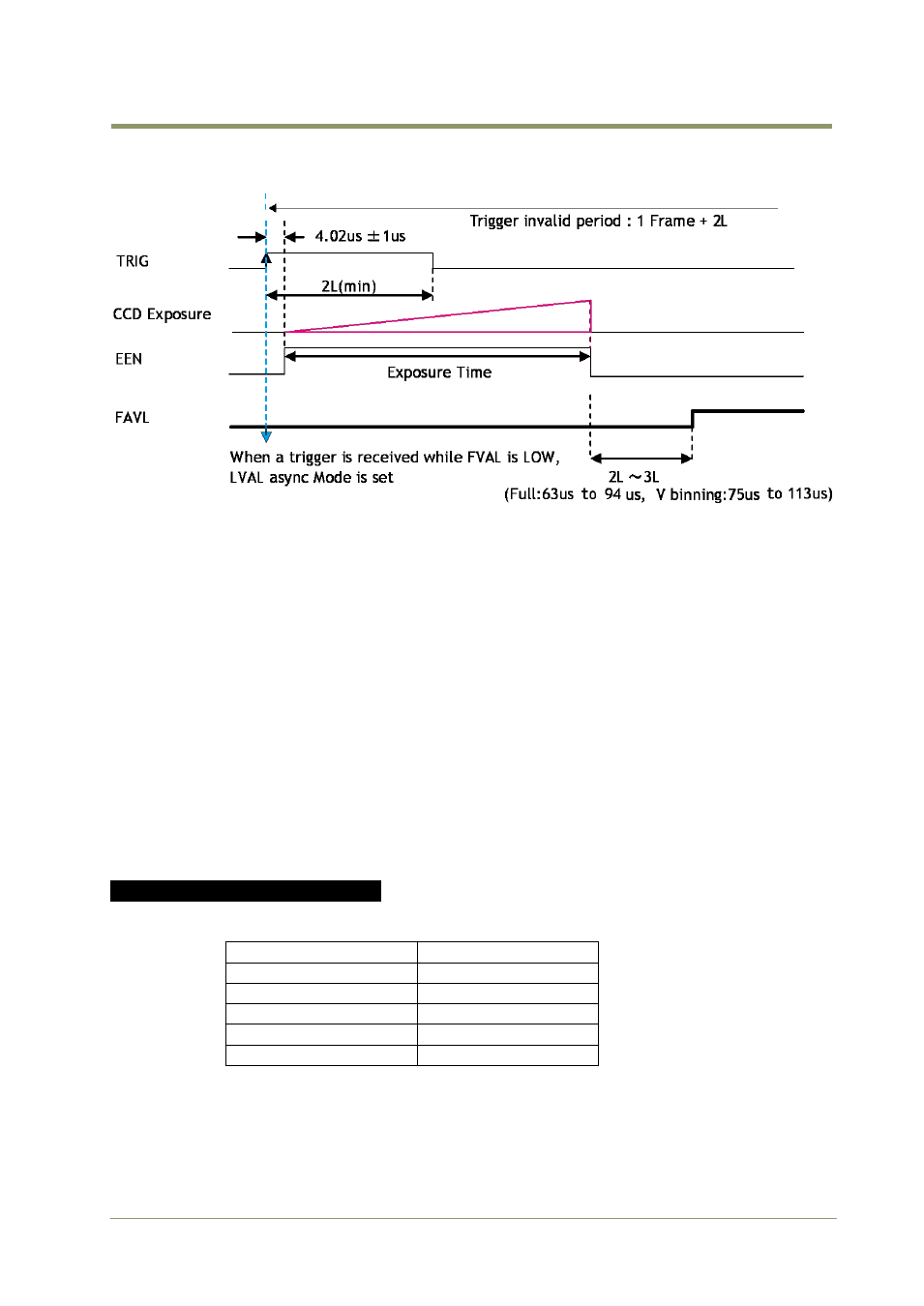

LVAL async timing
Fig.27 Edge Pre-select LVAL a-sync Timing
6.3.3 Pulse Width Control (PWC) Trigger Mode
In this mode the accumulation time is equal to the trigger pulse width. Here it is possible to
have a long time exposure. The maximum recommended time is <2 seconds.
The accumulation can be LVAL synchronous or LVAL asynchronous.
The resulting video signal will start to be read out after the trigger rising edge.
For timing details, refer to fig. 20 through fig. 25 and fig.28 and 29.
To use this mode:
Set function: Trigger mode
PWC
Scanning Full, Partial
Vertical binning ON / OFF (CM-141MCL only)
Accumulation (Auto) LVAL sync / LVAL a-sync
Other functions and settings
Input: External trigger 12-pin Hirose or Camera Link
Important notes on using this mode

Trigger pulse width >2LVAL to <2 seconds

The following table shows minimum trigger interval in synchronous accumulation mode
Full scan 1054 L
2/3 Partial 774 L
1/2 Partial 635 L
1/4 Partial 427 L
1/8 Partial 323 L
V Binning 529 L
In the case of asynchronous mode, the exposure time should be added to the above
table.
