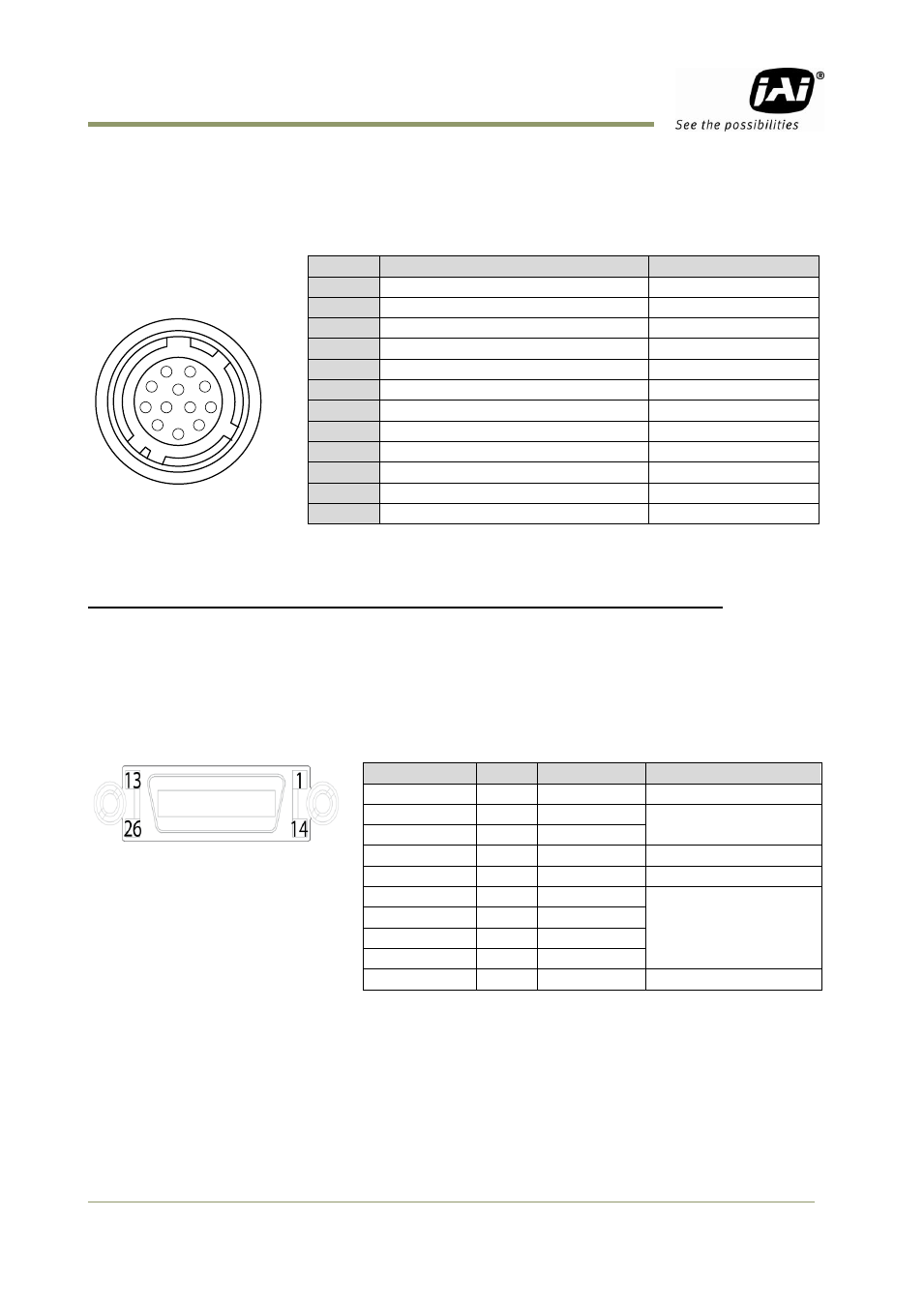

5. Pin Assignment
5.1 12-pin Multi-connector (DC-in/GPIO/Iris Video)
Type: HR10A-10R-12PB
(Hirose) male.
(Seen from the rear of
camera)
Fig.3. 12-pin connector.
Note: 12-pin connector is only present on CM-141MCL/-RA and CB-141MCL/-RA.
5.2 Digital Output Connector for Mini Camera Link
Type: 26-pin SDR connector(3M or Honda type)
5.2.1 CM-141MCL/-RA and CB-141MCL/-RA
Pin no. Signal Remarks
1 GND
2 +12 V DC input
3 GND
4 Iris Video out Continuous and RCT
5 GND
6 NC
7 NC
8 GND
9 XEEN output
10 Trigger input (Note*1)
11 NC
12 GND
*1: Default setting is via Camera Link. This can be selected by
command TI. 75ohm termination is available by SW 600.
Pin No I/O Name Note
1,13,14,26 GND DC GND
7(+),20(-) I/O RXD
Serial
8(-),21(+) O TXD
10(+),23(-) I Reserve
9(-),22(+) I Trigger CC1 Trigger
6(-),19(+) O TxOUT3
CameraLink output
4(-),17(+) O TxOUT2
3(-),16(+) O TxOUT1
2(-),15(+) O TxOUT0
5(-),18(+) O TxClk Clock for CL
Fig.4. 26-pin
connector
