4
EN
INDEX

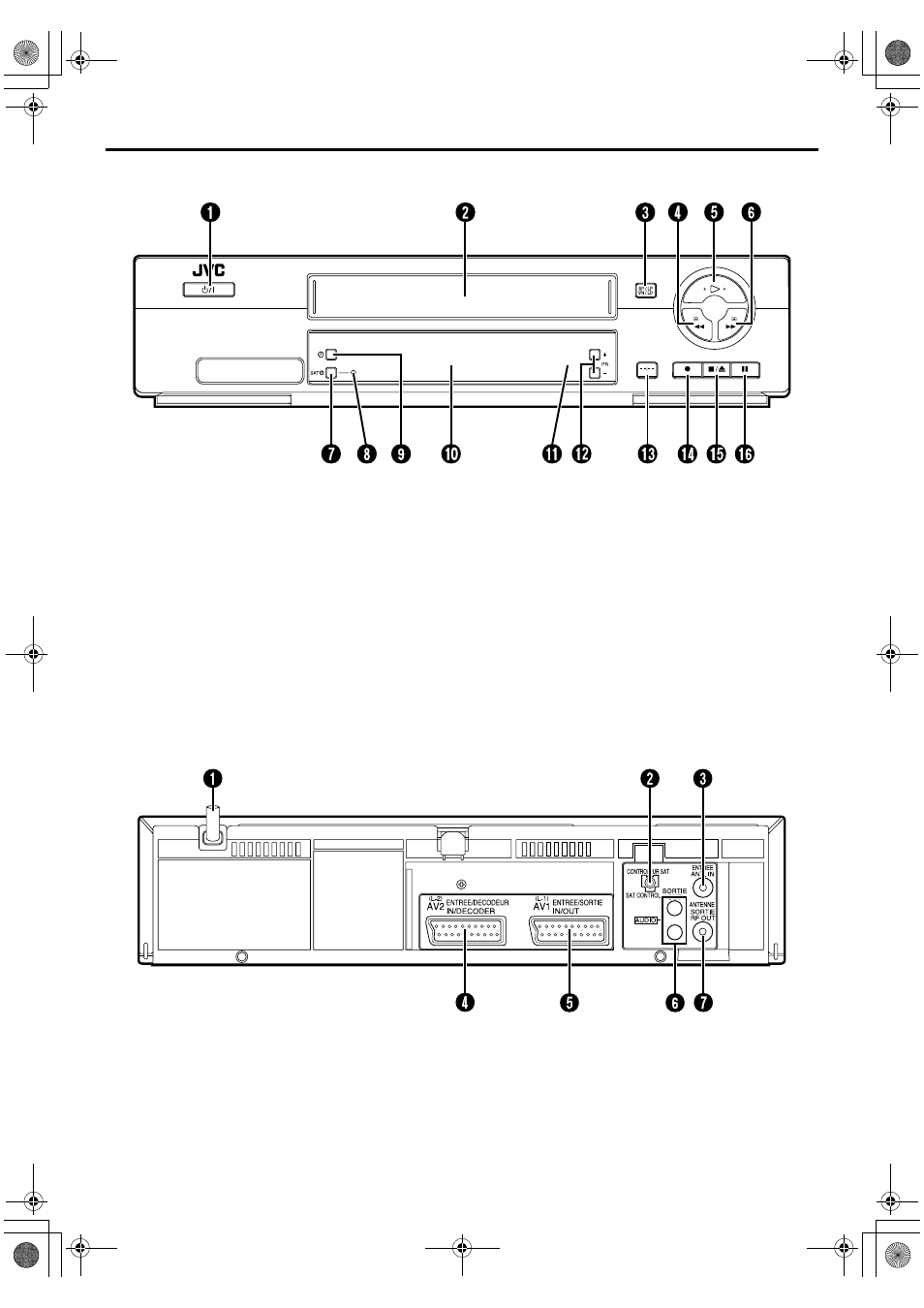

FRONT VIEW
A
STANDBY/ON
1
Button
੬ pg. 8
B
Cassette Loading Slot
C
SP/LP Button (HR-J670/671/672/673/674/470/
472EU)
੬ pg. 20
REVIEW Button (HR-J270/272EU)
੬ pg. 18
D
Rewind
3
Button
੬ pg. 16, 17
E
Play
4
Button
੬ pg. 16
F
Fast Forward
5
Button
੬ pg. 16, 17
G
SAT
#
Button
੬ pg. 30
H
SAT
#
Indicator
੬ pg. 30
I
Timer
#
Button
੬ pg. 25, 27
J
Front Display Panel
੬ pg. 5
K
Infrared Beam Receiving Window
L
PR +/– Buttons
੬ pg. 20
M
Display – – : – – Button
੬ pg. 22
N
Record
7
Button
੬ pg. 20
O
Stop/Eject
0
Button
੬ pg. 16
P
Pause
9
Button
੬ pg. 17
REAR VIEW
A
Mains Power Cord
੬ pg. 7
B
SAT CONTROL Connector
੬ pg. 13
C
ANT. IN Connector
੬ pg. 7
D
AV2 (L-2) IN/DECODER Connector
੬ pg. 13, 31, 32, 33, 34
E
AV1 (L-1) IN/OUT Connector
੬ pg. 7, 31, 32, 33, 34
F
AUDIO OUT (L/R) Connectors
(HR-J670/671/672/673/674EU only)
੬ pg. 35
G
RF OUT Connector
੬ pg. 7
