® 1. iPod docking bay
® 2. iPod docking connector
3
. ON/STANDBY button ----- To turn the unit on or off.
4. VOLUME + / - button ----- Adjust volume level up or down.
5. Three Speakers
6. Remote Infrared Sensor
7. DC15V IN jack ----- For the connection of external DC power supply.
8. S-VIDEO Jack ----- S-Video signal output
9. RCA VIDEO Jack ----- Composite video signal output
10. Subwoofer Out ----- For the connection of external active(self-powered) Subwoofer.
11. AUX Input Jack ----- For the connection of external audio input source.
12. Audio Input Selector switch ----- Select iPOD or Auxiliary input.
7

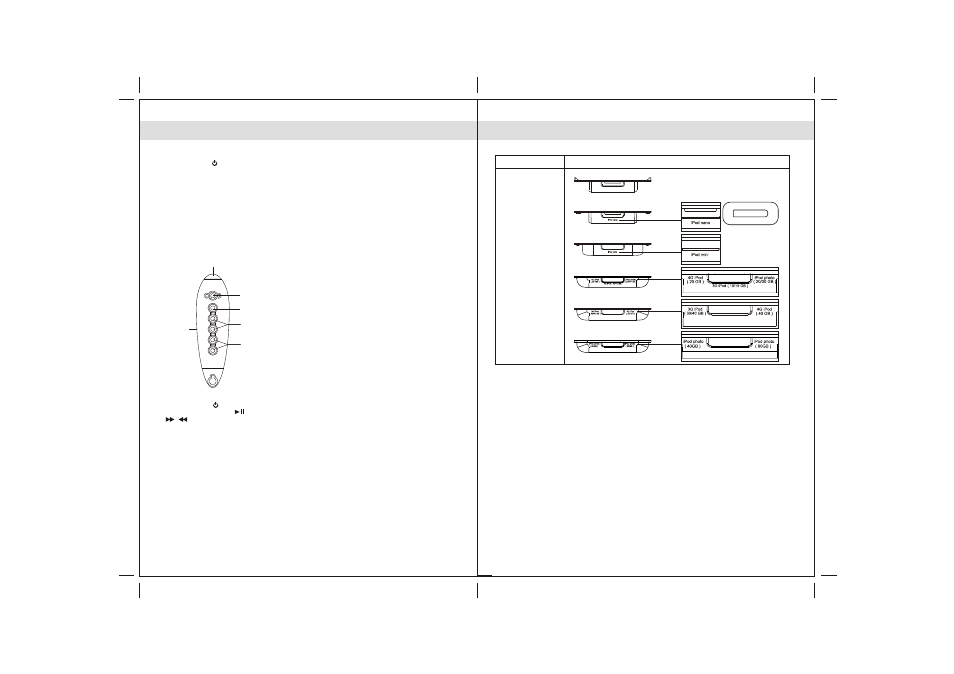

iPod ADAPTORS
Please see below for the iPod Adaptor included in the package:
iPod Adaptor iPod Models
Docking Cover
iPod nano
iPod mini
3Gen iPod 10/15GB
4Gen iPod 20GB
iPod Photo 20/30GB
3Gen iPod 30/40GB
4Gen iPod 40GB
iPod Photo 40/60GB
Align 1st G en iP od nano here
Align 2nd G en iP od nano here
NOT E : No adaptors are provided for iP od with video 30G B , 60G B and 80G B . P lease use the adaptors
included with these iP ods at time of purchase. T hey will fit properly into the docking bay of
this system.
1
2
3
4
5
6
6
LOCATION OF CONTROLS
Remote Control
1. Infra-red Transmitter
2. ON/STANDBY button ----- To turn the unit on or off
3. iPod PLAY / PAUSE button
4. / buttons ----- Skip iPod tracks Forward/Backward or perform high-speed search.
5. VOLUME + / - button ----- Adjust volume level up or down.
6. Battery Compartment -----located on bottom of the Remote Control.
