Riva
®
5
puRe aiR® ii Bath
technical Specifications
DimenSionS
62” L x 43” W x 19” H
(1575 mm) L x (1092 mm) W x (483 mm) H
DRain/oveRflow
A: 14-3/4” (375 mm) B: 9-1/2” (241 mm)
Cutout
Template Provided Part Number: P186000
total weight
787 lb (357 kg) /45 lb/ft
2 (220 kg/m 2 )
opeRating gallonage
45 U.S. Gal. (254 Liters)
pRoDuCt weight
89 lb (40 kg)
SkiRt mounting
Not Available
eleCtRiCal SpeCifiCationS
Requires a dedicated gfCi protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
heateR
No water heater is available on this unit. Blower has integral air heater.
© 2008 Jacuzzi Whirlpool Bath • 14525 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inStallation noteS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FQ97-000 05/08
ea30 Riva ® 5 Pure Air ® II Bath, Left Hand
• Accessories / Hardware:
Rotary Drain Kit, 26" Cable #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze.

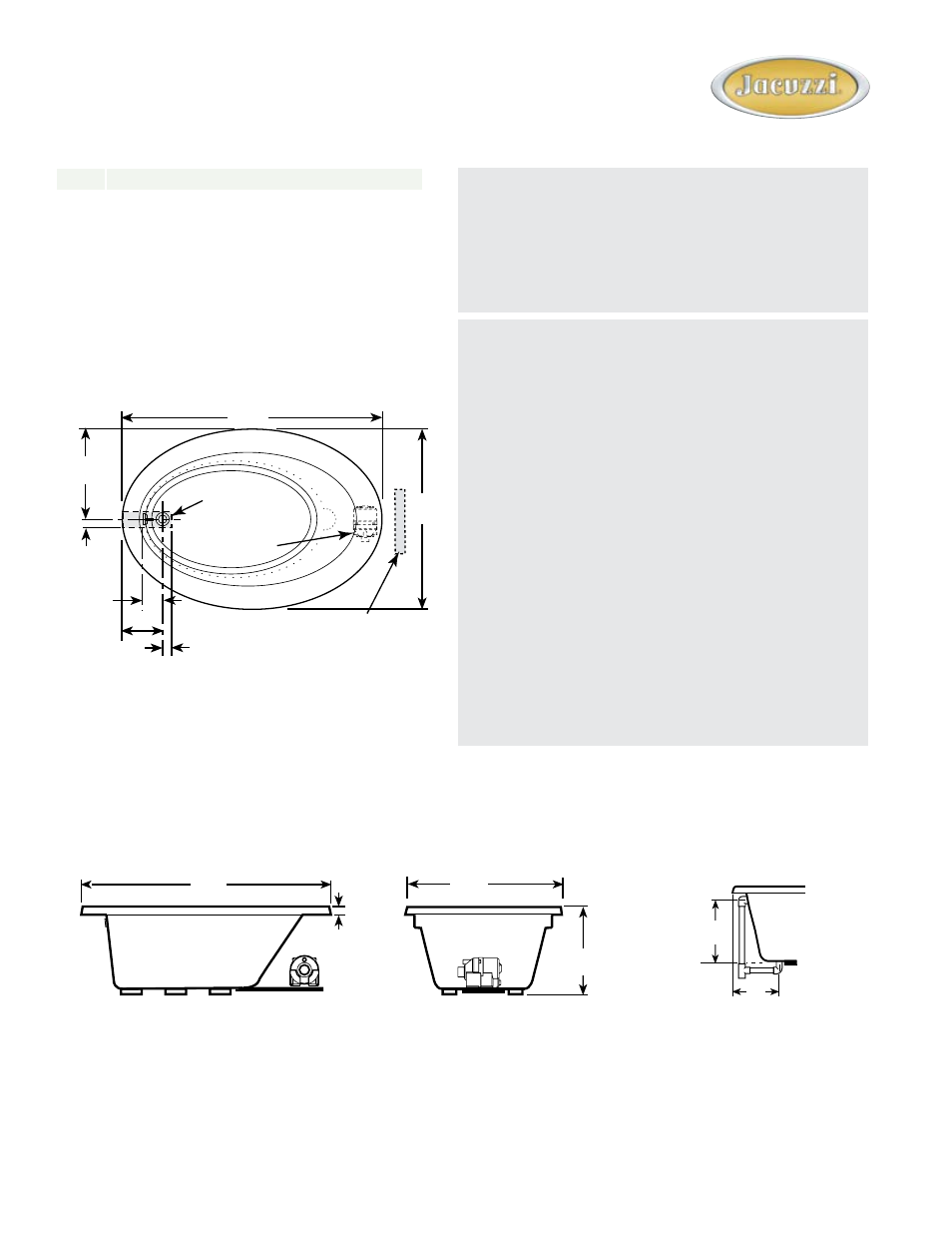

62"
21-1/2"
2"
2"
43"
12" x 4"
9-1/2"
5"
Blower
12" H x 18" L
Service Access
END VIEW
19"
43"
SIDE VIEW
62"
2"
(51 mm) (Blower)
DRAIN/OVERFLOW
A
B
product Shown: Riva® 5 pure air® ii Bath
left hand Shown model: ea30
* Measurements inside unit represent cutout
in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
