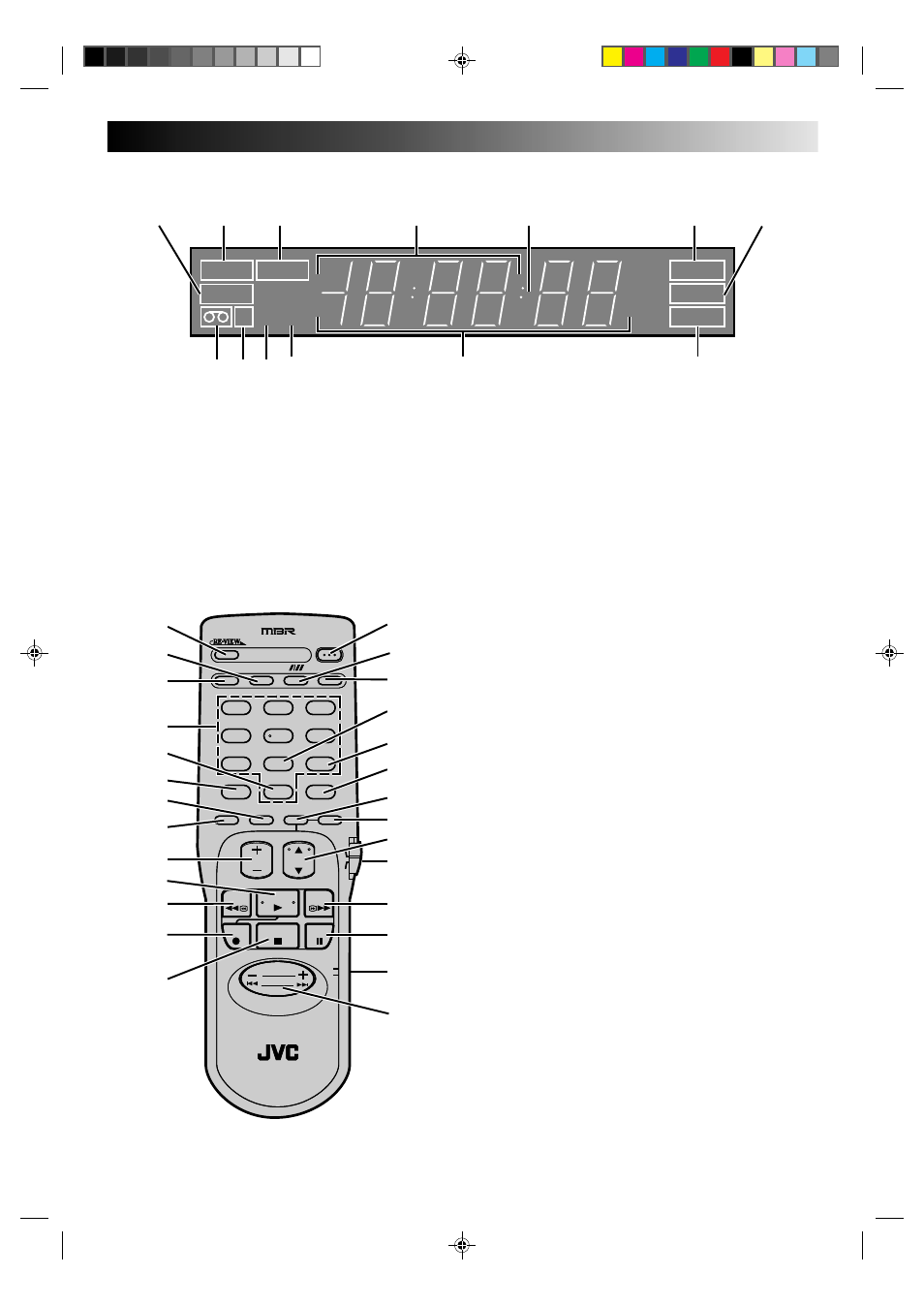

1 Video Mode Indicator (
੬
pg. 5)
2 Instant Timer Recording Indicator (
੬
pg. 22)
3 Timer Mode Indicator (
੬
pg. 23)
4 Clock Display (
੬
pg. 6)
5 Counter Display (
੬
pg. 16)
6 Recording Mode Indicator (
੬
pg. 11)
7 Play Mode Indicator (
੬
pg. 10)
8 “Cassette Loaded” Mark
9 Counter Memory Mark (
੬
pg. 16)
0 Tape Speed Indicators (
੬
pg. 11)
! AM/PM Indicators (
੬
pg. 6)
@ Channel Display [“AU” for AUX mode]
(
੬
pg. 27)
# Pause Mode Indicator (
੬
pg. 11)
REMOTE CONTROL (Provided)
1 Instant REVIEW Button (
੬
pg. 16)
2 DISPLAY Button (
੬
pg. 16)
3 TV/VIDEO Button (
੬
pg. 5)
4 NUMBER Buttons (
੬
pg. 6)
5 “AUX” Mode Select Button (
੬
pg. 27)
6 CANCEL Button (
੬
pg. 24)
Counter [C.] RESET (
੬
pg. 16)
Channel [CH.] SKIP Button (
੬
pg. 9)
7 Counter [C.] MEMORY Button (
੬
pg. 16)
ADD Button (
੬
pg. 9)
8 SKIP SEARCH Button (
੬
pg. 15)
9 Volume [VOL] +/– Buttons (
੬
pg. 31)
0 PLAY Button (
੬
pg. 10)
! Rewind [REW] Button (
੬
pg. 10)
@ Record [REC] Button (
੬
pg. 11)
# STOP Button (
੬
pg. 10)
$ POWER ON/OFF Button (
੬
pg. 5)
% Recording Speed [SP/EP] Button (
੬
pg. 11)
^ ENTER Button (
੬
pg. 11)
On-Screen Display [OSD] Button (
੬
pg. 14)
& DAILY Timer Recording Button (
੬
pg. 23)
* WEEKLY Timer Recording Button (
੬
pg. 23)
( TIMER Button (
੬
pg. 23)
) OK Button (
੬
pg. 5)
q MENU Button (
੬
pg. 5)
w Channel [CH]
5∞ Buttons ( ੬
pg. 5)
e TV/VCR Switch (
੬
pg. 31)
r Fast-Forward [FF] Button (
੬
pg. 10)
t PAUSE Button (
੬
pg. 11)
y A/B Code Select Switch (
੬
pg. 28)
u PUSH JOG Button (
੬
pg. 12)
POWER
TV/VIDEO DISPLAY
1 2 3
4 5 6
7 8 9
DAILY(M-F) WEEKLY
AUX
TIMER 0
C.MEMORY OK
ADD
TV
VOL.
CH
REW PLAY
MULTI BRAND
REMOTE CONTROL UNIT
FF
REC STOP PAUSE
PUSH JOG
A
B
TV
VCR
POWER
TV/VIDEO DISPLAY
CANCEL
ENTER
OSD
C.RESET/CH SKIP
1 2 3
4 5 6
7 8 9
DAILY(M-F) WEEKLY
AUX
TIMER 0
SKIP
SEARCH
ADD
A
B
TV
VCR
MENU
3
7
8
4
9
!
0
@
#
6
$
^
&
(
*
)
q
w
e
r
t
y
u
% 2
1
5
H M S
I T R TIMER
VIDEO SP
EP AM
PM
R E C
PAUSE
PLAY
1
8 9 ! @ #
2 3 4 5 6 7
M
0
FRONT DISPLAY PANEL
