- 17 -

CV-M300

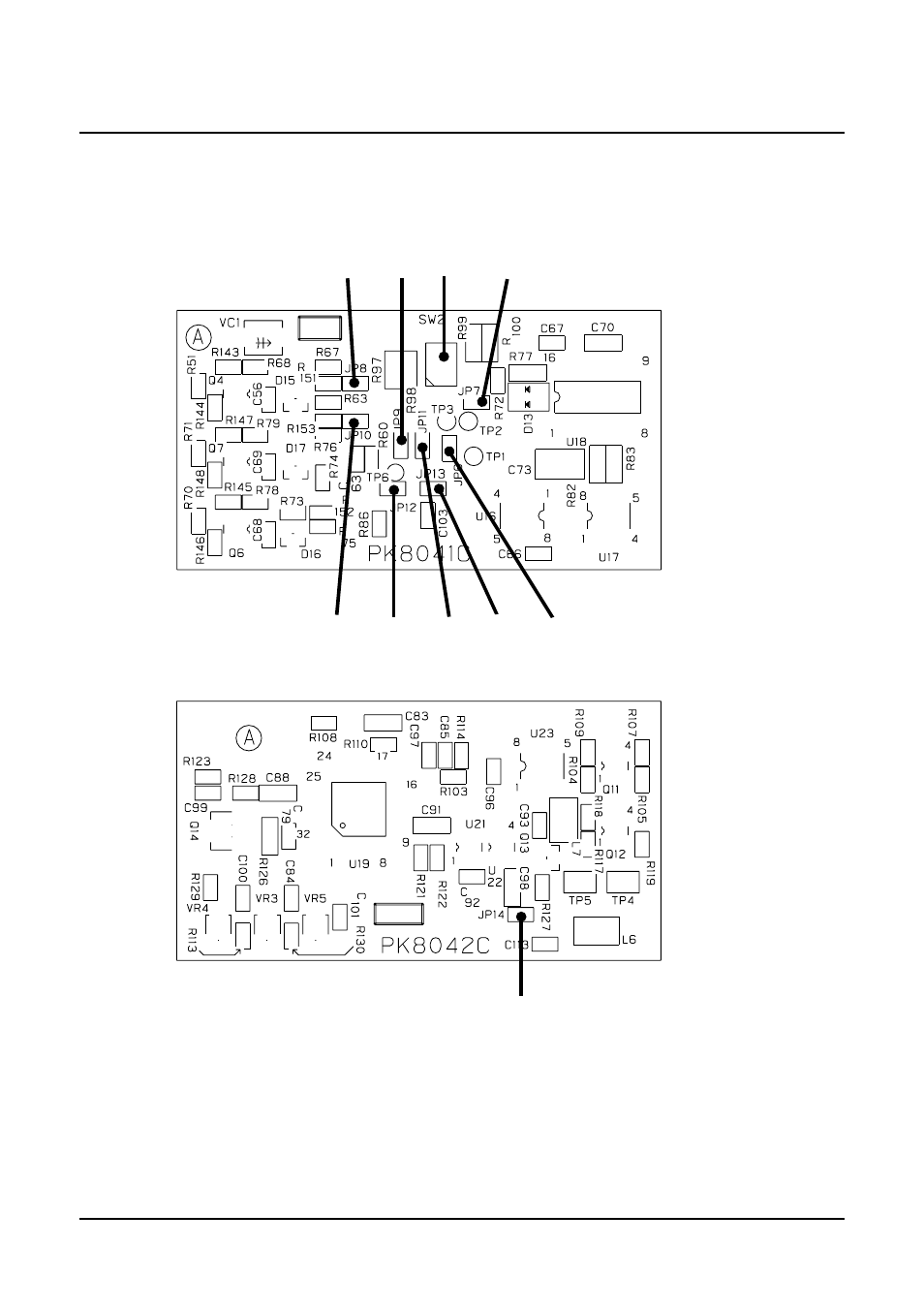

7.4. Location of SW2 and Jumpers

Jumpers are shorted with a 0 Ohm resistor or by a soldering between the 2 points. To remove the solder
tin from a jumper position, use a special tin remover such as de-soldering wick.

7.4.1. Board PK8041 Side A

7.4.2. Board PK8042 Side A

JP10

JP8

JP9 SW2

JP7

JP12 JP11 JP13 JP6

JP14
