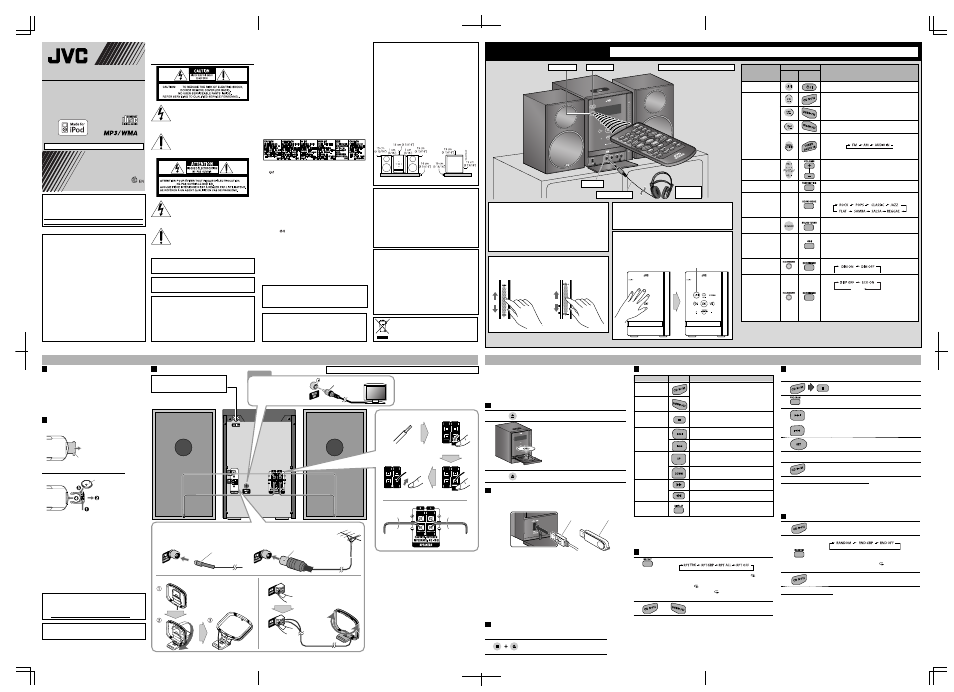

CAUTION: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent
damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the

areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate

air path for ventilation by placing on a stand with a height
of 10 cm or more.

ATTENTION: Aération correcte
Pour prévenir tout risque de décharge électrique ou
d’incendie et éviter toute détérioration, installez l’appareil de
la manière suivante:
1. Avant: Bien dégagé de tout objet.
2. Côtés/dessus/dessous: Assurez-vous que rien ne bloque

les espaces indiqués sur le schéma ci-dessous.

3. Dessous: Posez l’appareil sur une surface plane et

horizontale. Veillez à ce que sa ventilation correcte puisse
se faire en le plaçant sur un support d’au moins dix
centimètres de hauteur.

Connections

For iPod

Using Headphones
Be sure to turn down the volume before connecting or putting on
the headphones.
• Connecting the headphones will deactivate the speakers.
• Sound adjustments also affect the sound through the headphones.

Display Demonstration
When you plug in the System, the display demonstration
automatically starts.
To cancel the display demonstration, press and hold DEMO until
“DEMO CLR” is displayed while the System is on standby.
• When the ECO Mode is activated, the display demonstration does

not work (and you cannot deactivate it).

• When the display demonstration is activated, it also starts if no

operation is done for about 2 minutes while the System is turned
on.

Laser Touch Operation
You can use

4/¢ and VOL +/– on the front panel by sliding

your finger up or down on the illumination.

Motion Sensor on the Front Panel
When you move your hand close to the front panel while the System
is on standby, the controls on the front panel illuminate.
• When no operation is done for about 5 seconds, the illumination

turns off.

• When the ECO Mode is activated, the motion sensor does not work.

INSTRUCTIONS

LVT1989-001A[J/C]

0209RYMMDWDAT

©2009 Victor Company of Japan, Limited

1

2

4

Basic and Common Operations

Supplied Accessories

After unpacking, check to be sure that you have all the
following items.
• Remote control, RM-SUXGN6J (× 1)
• Lithium coin battery (× 1: installed in the remote control)
• AM loop antenna (× 1)
• FM antenna (× 1)
• Video cord (× 1)
If anything is missing, consult your dealer immediately.

Prepare the Remote Control

When you use the remote control for the first time, pull out
the insulation sheet.

To Replace the Battery in the Remote Control

NOTES:
Store the battery in a place where children cannot reach. If

a child accidentally swallows the battery, consult a doctor
immediately.

To prevent the battery from overheating, cracking, or starting

a fire:

– Do not recharge, short, disassemble or heat the battery or

dispose of it in a fire.

– Do not leave the battery with other metallic materials.
– Wrap the battery with tape and insulate when throwing

away or saving it.

– Do not poke the battery with tweezers or similar tools.
Dispose of battery in the proper manner, according to federal,

state, and local regulations.

Basic Disc/USB Mass Storage Class Device Operations

To

Press

Indication/Result

Play back the disc

• During playback, press again to pause.

Play back the USB
mass storage class
device

Stop playback

• While playback is stopped, total track number

and total playing time (for MP3/WMA files,
group number and track number) appear.

Select a track

Select the next tracks.

To go back to the beginning of the current or
previous tracks.

Select a group
(MP3/WMA only)

Select the next groups.

Select the previous groups.

Forward search/
Reverse search

Press and hold to fast-forward the track during
playback.

Press and hold to fast-reverse the track during
playback.

Change
the display
information

(only for USB)
Press repeatedly.

NOTES:
If no disc is inserted or no USB mass storage class device is connected, “NO DISC” or

“NO USB” appears on the main display.

If MP3/WMA files are not recorded on the disc or in the USB mass storage class device,

“NO PLAY” appears on the main display.

Playing Repeatedly—Repeat Play

1

Press repeatedly to specify the repeat mode as follows:

RPT TRK:

Repeats the current (or specified) track. [ 1]

RPT GRP:

Repeats all tracks in the current group (MP3/WMA
only). [ ]

RPT ALL:

Repeats all tracks. [ ALL ]

RPT OFF:

Normal playback

2

or

Getting Started

Playing Back a Disc/USB Mass Storage Class Device

MICRO COMPONENT SYSTEM

UX-GN6

—Consists of CA-UXGN6 and SP-UXGN5

This System can play back...
– CD.
– CD-R/CD-RW recorded in audio CD format (CD-DA) or recorded MP3/WMA files

in ISO 9660 format.

– USB mass storage class device containing MP3/WMA files.
• When playing back an MP3 or WMA track, corresponding indicator lights up.

Loading a Disc

(on the System only)

1

Touch to open the disc tray.

2

• When using an 8 cm (3 3/16 inch) disc, place it on

the inner circle of the disc tray.

3

Touch to close the disc tray.

Connecting a USB Mass Storage Class Device

You can connect a USB mass storage class device such as a USB flash memory
device, MP3 player, multimedia card reader, etc. to the System.

Front view

NOTES:
When connecting with a USB cable, use the USB 2.0 cable whose length is less than

1 m (3.3 ft).

USB mass storage class device is charged through the USB terminal when the System

is turned on and the source is “USB.”

You cannot connect a computer to the USB terminal of the System.
Do not disconnect the USB mass storage class device when the System is turned on. It

may cause malfunction of both this System and the device.

Noise and static electricity may stop the USB mass storage class device sound. In this

case, disconnect the USB mass storage class device and connect it again after turning
off the System.

Depending on the shape of USB mass storage class device, the USB terminal may

not be fully inserted into the USB terminal on the System. In such a case, use a USB
extension cable (not supplied) to connect.

Prohibiting Disc Ejection

(on the System only)

You can lock the disc tray so that no one can eject the loaded disc.
While the System is on standby...

To cancel the prohibition, repeat the same
procedure.

3

Programming the Playing Order—Program Play

(only for Disc)

1

Select disc as the source.

2

Activate the Program Play.

3

or

Select tracks you want for Program Play.
• For MP3/WMA files only: You can also use UP or

DOWN.

4

Press to store the selected track.

5

Repeat steps 3 and 4 to program other tracks you want.
• If you try to program a 33rd track, “PGM FULL” appears.

6

The tracks are played back in the programmed
order.

Operations for Program Play (while not playing)

• To check the programmed contents, press

4 or ¢.

• To add tracks, repeat steps 3 and 4 above.
• To erase the entire program, press and hold CANCEL for about 2 seconds.
• To exit from Program Play, press PROGRAM or

7.

– The stored program is kept.

Playing at Random—Random Play

(only for Disc)

1

Select disc as the source.

2

Press repeatedly to select the desired Random Mode.

RANDOM:

Plays all tracks in random order. [ALL RND ]

RND GRP:

Plays tracks in the current group in random
order. (MP3/WMA only). [ RND ]

RND OFF:

Normal playback

3

Playback starts in random order.

Operations for Random Play

• To skip a track, press

¢.

• To go back to the beginning of the current track, press

4.

Thank you for purchasing a JVC product.

To

Press

Indication/Result

Main

unit

Remote

Turn on or off
(standby) the power

The STANDBY lamp on the System turns off/on.

Select a source

See “Playing Back a Disc/USB Mass Storage Class Device”
on page 4.

See “Listening to an iPod/Viewing Images on the iPod”
on page 5.

Press repeatedly to select “FM,” “AM,” or “AUDIO IN” as
the source.

• See “Listening to FM and AM Broadcasts” or “Listening

to Other Equipment” on page 5.

Adjust the volume

Drop the volume in
a moment

To restore the volume, press again, or adjust the
volume level.

Select the Sound
Mode

Press repeatedly to select the desired Sound Mode.
The SOUND indicator lights up.

Emphasize the
sound (Sound
Turbo)

The S.TURBO indicator lights up.
To cancel this function, press again.

Reinforce the bass
sound (Hyper Bass
Sound)

The HBS indicator lights up.
• When Sound Turbo function is activated (see above),

the HBS indicator goes off and HBS button does not
work.

To cancel this function, press again.

Change the display
brightness

Press repeatedly when the System is turned on.

Turn off the display
while on standby

Press repeatedly while the System is on standby.

Clock

DISP OFF:

ECO ON:

Turns off the display with the motion sensor
on.
Turns on the ECO (Ecology) Mode.
ECO Mode reduces power consumption
while the System is on standby by turning
off the display and motion sensor.

NOTE:
DO NOT turn off (standby) the System with the volume set to an extremely high level; otherwise, the sudden
blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start
playback.

Rear view

Outdoor FM antenna
(not supplied)

FM antenna (supplied)

NOTES:
Make sure the antenna conductors do not touch any other

terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System, connecting
cords, and the AC power cord. This could cause poor reception.

Keep the AM loop antenna cable wrapped around the AM loop

antenna frame, otherwise the effectiveness and sensitivity of the
AM loop antenna may be reduced.

Make sure both the speakers are connected correctly and firmly.
When connecting the speaker cords, match the polarity of the

speaker terminals: red color to (+) and black color to (–).

DO NOT connect more than one speaker to each terminal.
DO NOT allow the conductor of the speaker cords to be in touch

with the metallic parts of the System.

Do not connect the AC power cord until all other connections have been made.

To connect the FM antenna (supplied)
Extend it so that you can obtain the best reception.

For better FM reception

Disconnect the supplied FM antenna, and connect
to an outdoor FM antenna using a 75 Ω wire with
coaxial type connector.

Press and hold

Insert

Release

Red

Black

From left
speaker

From right
speaker

LVT1989-001A EN_UX-GN6[JC]

USB cable (not
supplied)

or

USB memory
(not supplied)

STANDBY lamp

Stereo mini plug cord

PHONES jack

Touch to turn on the System.

To use

4/¢

To use VOL +/–

To a wall outlet
Plug the AC power cord only after all
connections are complete.

CA-UXGN6

CA-UXGN6

Turn the AM loop antenna until
the best reception is obtained.

To connect the AM loop antenna

To assemble the AM loop antenna (supplied)

Red

Black

To connect the speaker cords

For customer use:
Enter below the Model No. and Serial No. which are
located either on the rear, bottom or side of the cabinet.
Retain this information for future reference.
Model No.
Serial No.

Warnings, Cautions and Others
Mises en garde, précautions et indications
diverses

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

For U.S.A.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.

Le symbole de l’éclair à l’intérieur d’un triangle
équilatéral est destiné à alerter l’utilisateur sur
la présence d’une “tension dangereuse” non
isolée dans le boîtier du produit. Cette tension
est suffisante pour provoquer l’électrocution
de personnes.
Le point d’exclamation à l’intérieur d’un
triangle équilatéral est destiné à alerter
l’utilisateur sur la présence d’opérations
d’entretien importantes au sujet desquelles
des renseignements se trouvent dans le
manuel d’instructions.

IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover or cabinet. There

are no user serviceable parts inside the unit; leave all
servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation

when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED

INSIDE THE UNIT.

IMPORTANT POUR PRODUITS LASER
1. PRODUIT LASER CLASSE 1
2. ATTENTION: N’ouvrez pas le couvercle supérieur ni

le coffret de l’appareil. Il n’y a aucune pièce réparable
par l’utilisateur à l’intérieur de l’appareil; confiez toute
réparation à un personnel qualifié.

3. ATTENTION: Rayonnement laser visible et/ou invisible

de classe 1M une fois ouvert. Ne pas regarder directement
dans le faisceau avec des instruments optiques.

4. REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE DE

PRÉCAUTION PLACÉE À L’INTERIEUR DE L’APPAREIL.

CAUTION:
Changes or modifications not approved by JVC could void
the user’s authority to operate the equipment.

[European Union only]
[Union européenne seulement]

CAUTION
The

button in any position does not disconnect the mains

line.
Disconnect the mains plug to shut the power off completely
(the STANDBY lamp goes off).
The MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
• When the System is on standby, the STANDBY lamp lights

red.

• When the System is turned on, the STANDBY lamp goes off.
The power can be remote controlled.

ATTENTION
La touche

, quelle que soit sa position, ne coupe pas la

ligne principale.
Débrancher la fiche principale pour couper complètement
l’alimentation du secteur (le témoin STANDBY s’éteint).
La fiche secteur ou un coupleur est utilisé comme dispositif
de déconnexion de l’appareil, et l’appareil déconnecté doit
être prêt à être utilisé.
• Quand l’appareil est en mode d’attente, le témoin STANDBY

est allumé en rouge.

• Quand l’appareil est sous tension, le témoin STANDBY s’éteint.
L’alimentation peut être commandée à distance.

WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.

CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.

ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le

coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

CAUTION:
• Do not block the ventilation openings or holes. (If the

ventilation openings or holes are blocked by a newspaper
or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted

candles, on the apparatus.

• When discarding batteries, environmental problems

must be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping

or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.

For USA-California Only
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material – special handling may
apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate

Remote sensor

CAUTION: Excessive sound pressure from earphones or
headphones can cause hearing loss.

ATTENTION: Une pression acoustique excessive des écouteurs
ou du casque d’écoute peut entraîner une perte auditive.

Lithium coin battery
(product number: CR2025)

Insulation sheet

To connect the monitor
(not supplied)
—To view video/picture
from the iPod

SP-UXGN5

CAUTION: Battery shall not be exposed to excessive heat
such as sunshine, fire, or the like.

ATTENTION: Les piles ne doivent en aucun cas être
exposées à une chaleur excessive (lumière du solei, feu,
etc.).

SP-UXGN5

Point at the remote sensor on the front panel.

Headphones
(not supplied)

CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

Monitor

Video cord
(supplied)

The operations on pages 4 to 6 are explained using the remote control, unless mentioned otherwise. However, if the System has the same or similar button names, they can also be
used for the operations.

(canceled)

AM loop antenna
(supplied)

(canceled)

ATTENTION:
• Ne bloquez pas les orifices ou les trous de ventilation. (Si

les orifices ou les trous de ventilation sont bloqués par un
journal un tissu, etc., la chaleur peut ne pas être évacuée
correctement de l’appareil.)

• Ne placez aucune source de flamme nue, telle qu’une

bougie, sur l’appareil.

• Lors de la mise au rebut des piles, veuillez prendre en

considération les problèmes de l’environnement et suivre
strictement les règles et les lois locales sur la mise au rebut
des piles.

• N’exposez pas cet appareil à la pluie, à l’humidité, à un

égouttement ou à des éclaboussures et ne placez pas des
objets remplis de liquide, tels qu’un vase, sur l’appareil.

Front/Face

Side/Côté

Table of contents
