Tara™ Plus Whirlpool Bath
Model: BR05, DB83
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BR05 Tara™ Plus Whirlpool Bath
Right Hand
DB83 Tara™ Plus Whirlpool Bath
Left Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
HTC Jet Trim Kit: #D095
BMH Jet Trim Kit (3 Req’d): #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

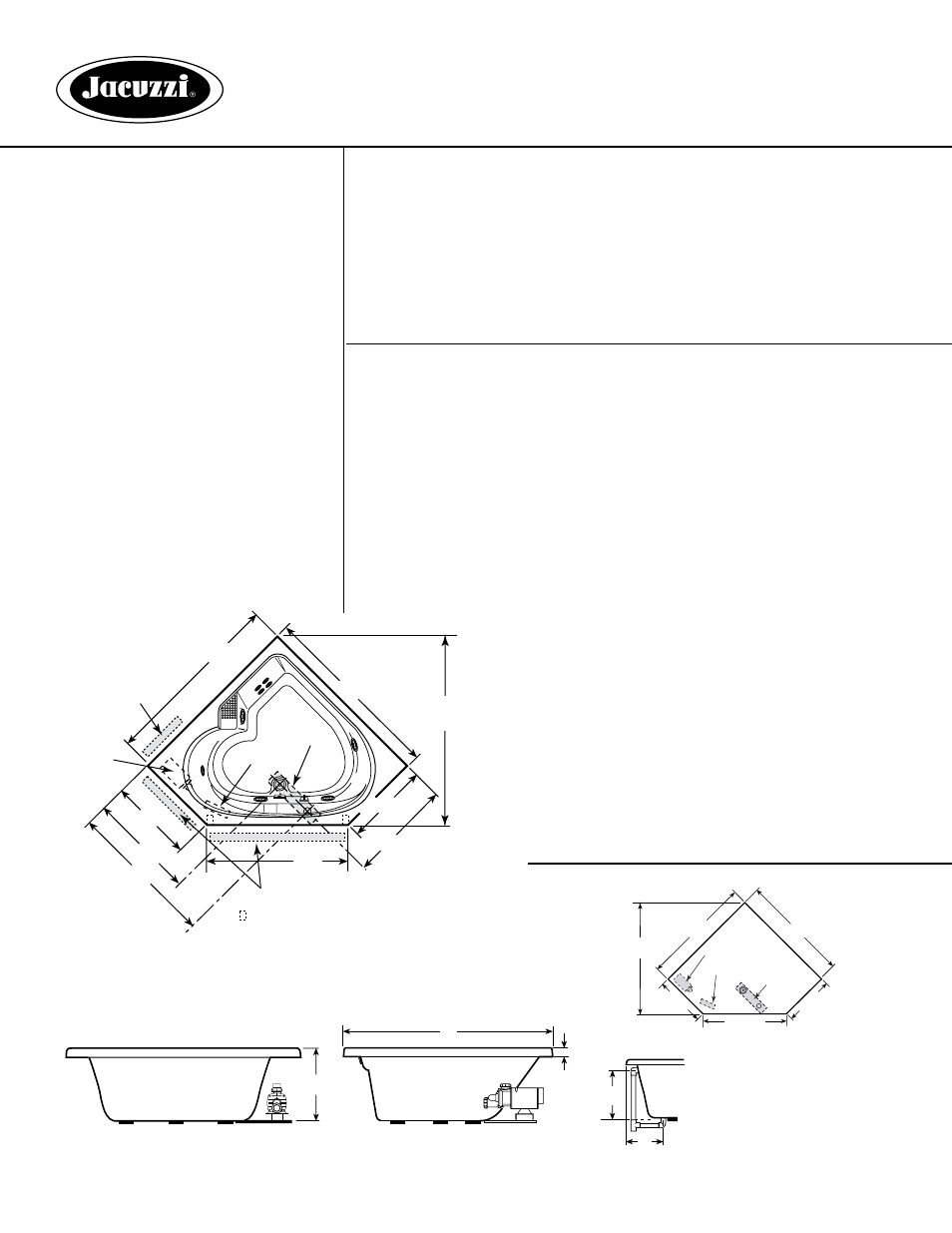

Technical Specifications
Dimensions
60” L x 60” L x 20-3/4” H
(1524 mm) L x (1524 mm) L x (527 mm) H
Drain/Overflow
A: 16” (406 mm) B: 12-3/8” (314 mm)
Cutout
See Illustration Below
Total Weight
984 lb (446 kg) / 39 lb/sq. ft. (192 kg/m 2 )
Operating Gallonage
Min. 61 U.S. Gal. (231 Liters)
Max. 87 U.S. Gal. (329 Liters)
Product Weight
118 lb (54 kg)
Skirt Mounting
Optional
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
H
L
2"
SIDE VIEW END VIEW
#FS22 10/06
DRAIN/OVERFLOW
A
B
- 2" x 4" Stud
14" x 4"*
Heater (S) Motor
12" H x 18" L
Service Access
Opt. Service Access
60"
60"
35"
27-1/4"
Ref.
61-5/8"
46"
44"
35"
27-1/4"
25-1/2"
(648 mm)
58"
(1473 mm)
45-9/16"
(1157 mm)
58"
(1473 mm)
25-1/2"
(648 mm)
Ref.
59"
TARA ™ PLUS LH CUTOUT
Drain Cutout
Motor
Heater
Product Shown: Tara™ Left Hand Motor Plus Whirlpool Bath LH Model: DB83
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
