Page 27
27

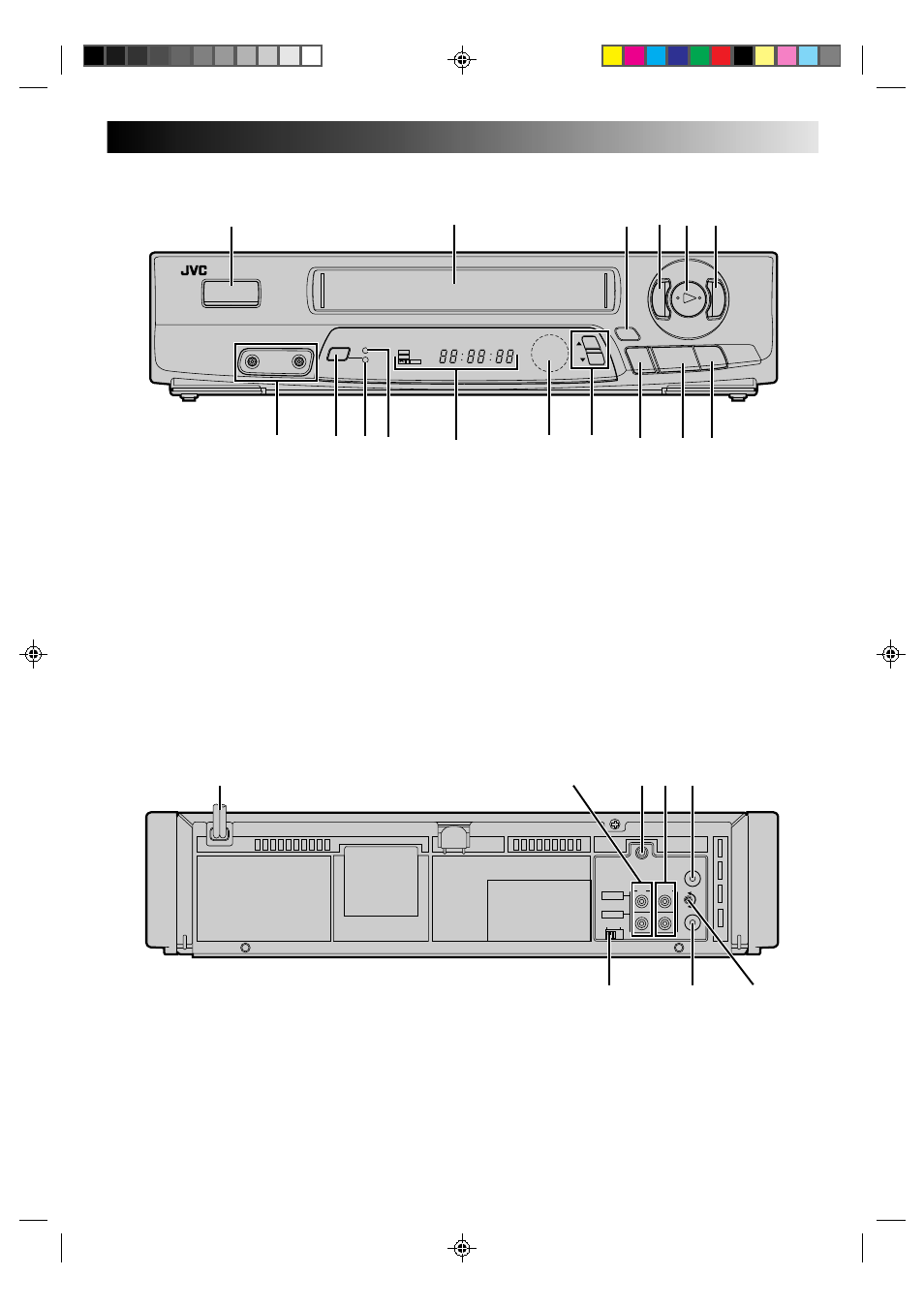

FRONT VIEW
1 OPERATE Button (
੬ pg. 4)
2 Cassette Loading Slot
3 CH SET Button (
੬
pg. 6)
4 Rewind [REW] Button (
੬ pg. 10)
5 PLAY Button (
੬
pg. 10)
OK Button (
੬
pg. 6)
6 Fast Forward [FF] Button (
੬ pg. 10)
7 VIDEO and AUDIO Input Connectors
(
੬ pg. 23)
8 AUTO SP/LP TIMER Button (
੬
pg. 21)
9 AUTO SP/LP TIMER Indicator (
੬ pg. 21)
0 INTELLIGENT PICTURE Indicator (
੬
pg. 13)
! Display Panel (
੬
pg. 28)
@ Infrared Beam Receiving Window
# TV PROG.
5/∞ Buttons (
੬
pg. 6)
$ RECORD Button (
੬ pg. 14)
% STOP/EJECT Button (
੬
pg. 10)
STORE Button (
੬
pg. 7)
^ PAUSE Button (
੬
pg. 11)
INDEX
REAR VIEW
1 Mains Power Cord (
੬
pg. 3)
2 AUDIO and VIDEO IN Connectors (
੬
pg. 22)
3 Remote PAUSE Connector (
੬
pg. 23)
4 AUDIO and VIDEO OUT Connectors
(
੬
pg. 3)
AUTO SP/LP
TIMER
INTELLIGENT
TV
PROG
VIDEO
AUDIO
q
6
5
/
8
OPERATE
OK
STORE
2
3
CH SET
R E C
TIMER
PLAY
M
SP LP
8
!
$
% ^
@
#
2
1
3 4
6
5
0
9
7
5 ANT. IN Connector (
੬
pg. 3)
6 TEST Switch (
੬
pg. 4)
7 RF OUT Connector (
੬
pg. 3)
8 RF Output Channel Adjustment Screw (
੬
pg. 4)
ANT. IN
RF OUT
IN
OUT
ON
OFF
TEST
AUDIO
PAUSE
VIDEO
33
(32)
(40)
41
1
5
4
2
7
6
8
3
