Cetra® 532 Whirlpool Bath with Integral Skirt
Model: H525, H526
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
H526 Cetra® 532 Whirlpool Bath
with Integral Skirt Right Hand
H525 Cetra® 532 Whirlpool Bath
with Integral Skirt Left Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit #D095
AccuPro™ Jet Rings Kit #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
60” L x 32” W x 20-1/2” H
(1524 mm) L x (813 mm) W x (521 mm) H
Drain/Overfl ow
A: 17-7/8” (454 mm) B: 9-3/8” (238 mm)
Cutout
58” x 30”
Total Weight
727 lb (330 kg) / 55 lb/sq. ft. (266 kg/m 2 )
Operating Gallonage
46 U.S. Gal. (174 Liters)
Product Weight
94 lb (43 kg)
Skirt Mounting
Integral
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
Rapid Heat: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional)
Requires a dedicated GFCI protected separate circuit.
Rapid Heat: P/N S750000
60"
32"
15-5/8"
2"
10" x 4"*
9-3/8"
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
L
1"
H
W

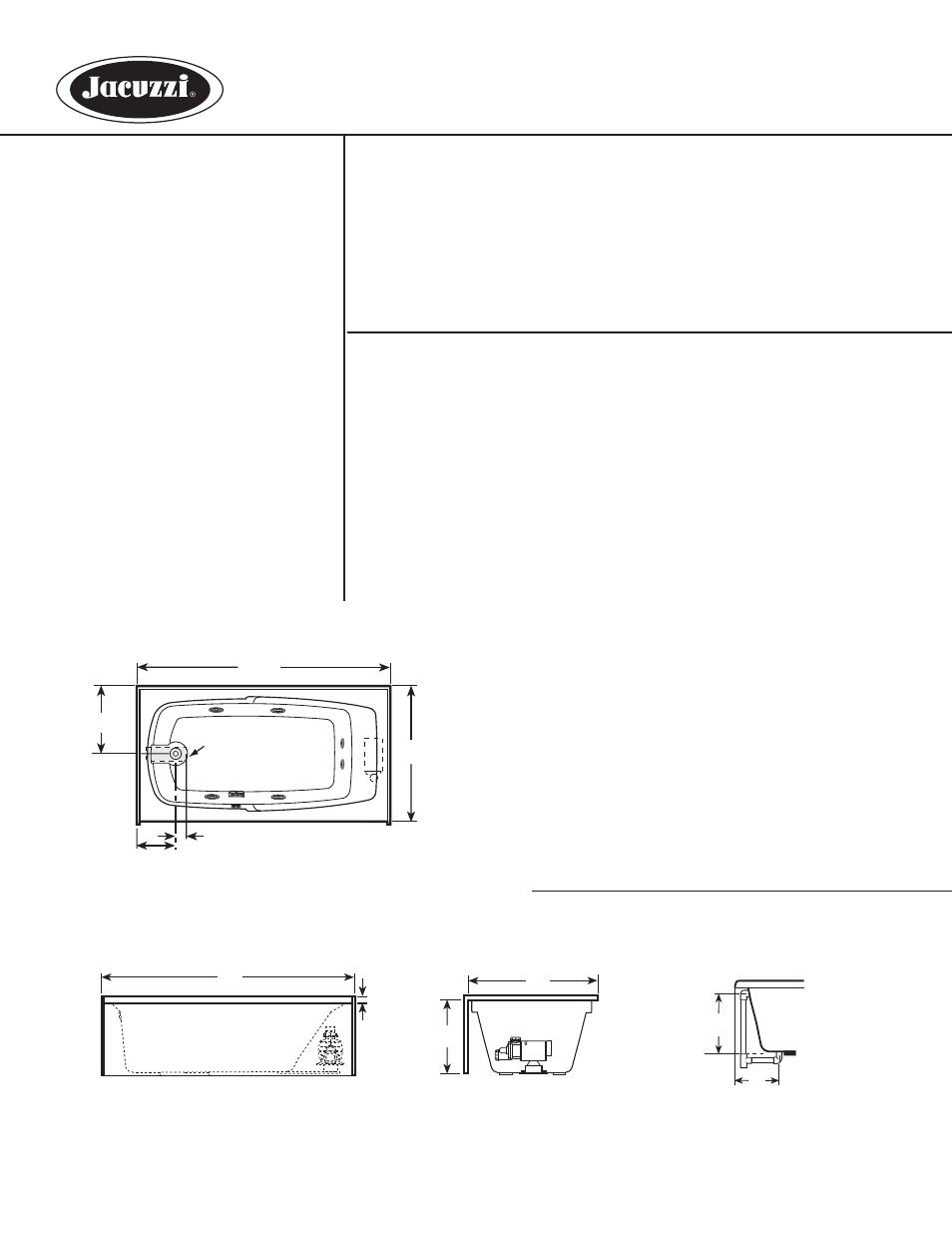

SIDE VIEW END VIEW
#FR25 07/07
DRAIN/OVERFLOW
A
B
Product Shown: Cetra® 532 Whirlpool Bath with Integral Skirt Left Hand Model: H525
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
