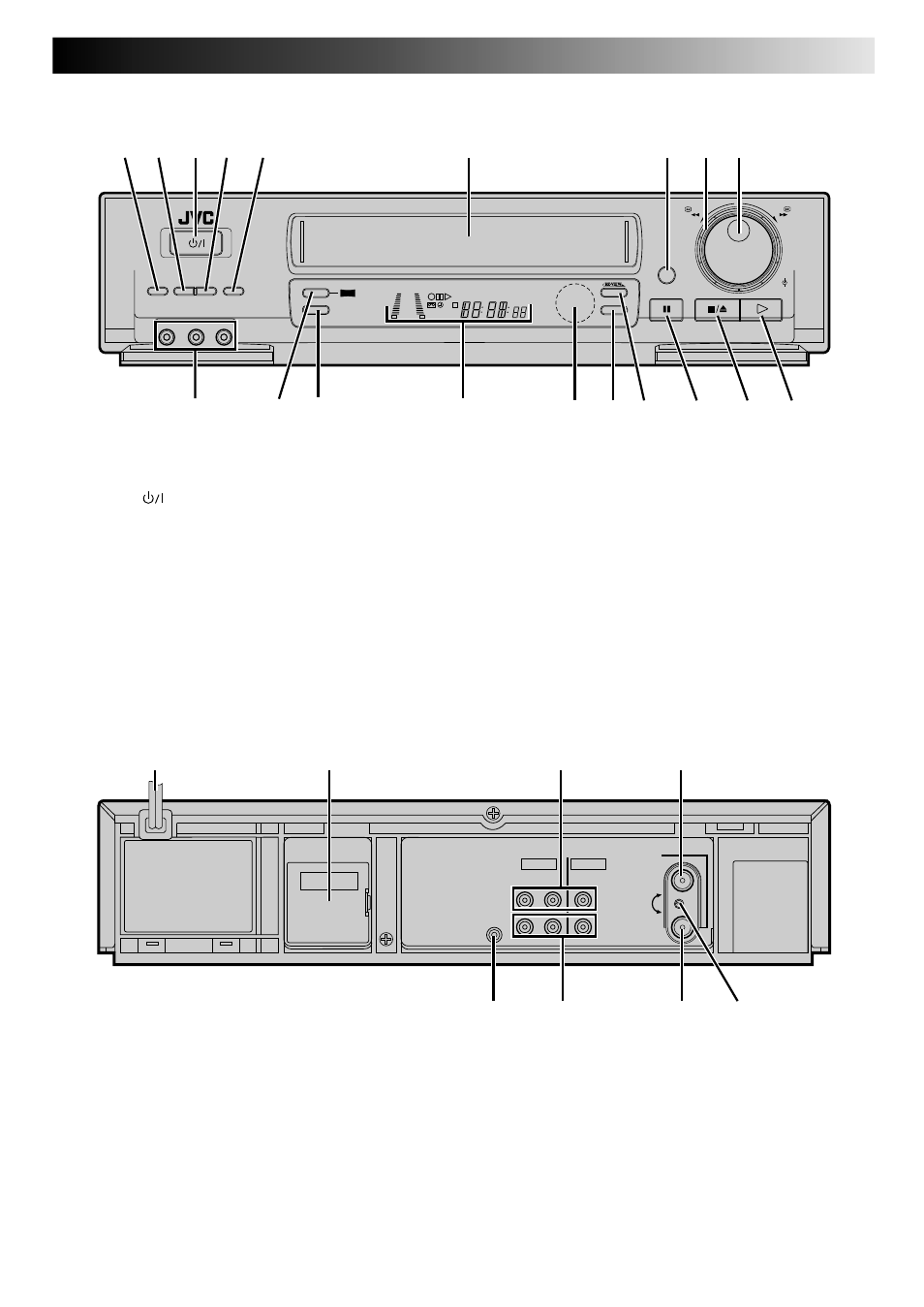

FRONT VIEW
INDEX
q
POWER
REW
FF
TV PROG /
JOG
SHUTTLE
VIDEO (MONO)L – AUDIO – R
AUTO SP/LP TIMER
DISPLAY
SIMUL
COLOUR
SYSTEM
AUDIO
MONITOR
SP/ LP/EP
+8
4
0
6
10
–20dB
NORM
L
R
M
SP
LP EP
REVIEW
WIDE
QUALITY
3
2
6
5
4
1
8
7
9
@
0
!
%
$
&
* (
#
^
1 DISPLAY Button
੬ pg.16
2 SIMUL Button
੬ pg.17
3 POWER
Button
੬ pg. 4
4 AUDIO MONITOR Button
੬ pg.14
5 COLOUR SYSTEM Button
੬ pg. 26
6 Cassette Loading Slot
7 RECORD Button
੬ pg. 15
8 SHUTTLE Ring
੬ pg. 11
9 TV PROG Dial
੬ pg. 15
JOG Dial
੬ pg. 11
0 VIDEO/AUDIO Input Connectors
੬ pg. 25
! WIDE QUALITY Button
੬ pg.12
@ AUTO SP/LP TIMER Button
੬ pg. 21
# Display Panel
੬ pg. 38
$ Infrared Beam Receiving Window
% SP/LP/EP Button
੬ pg. 15
^ REVIEW Button
੬ pg. 13
& PAUSE Button
੬ pg. 11
* STOP/EJECT Button
੬ pg. 10
( PLAY Button
੬ pg. 10
REAR VIEW
5 REMOTE PAUSE Connector
੬
pg. 25
6 VIDEO/AUDIO Output Connectors
੬ pg. 3, 24
7 RF OUT Connector
੬ pg. 3
8 RF Output Channel Adjustment Screw
੬ pg. 5
1 Mains Power Cord
੬ pg. 3
2 Lithium Battery Compartment
੬ pg. 5
3 VIDEO/AUDIO Input Connectors
੬ pg. 17
4 ANT. IN Connector
੬ pg. 3
ANT. IN
RF OUT
32
40
REMOTE
PAUSE
OUT
AUDIO
VIDEO
IN
OUT
IN
R
L
3
2
8
7
5
6
1
4
