EN
29

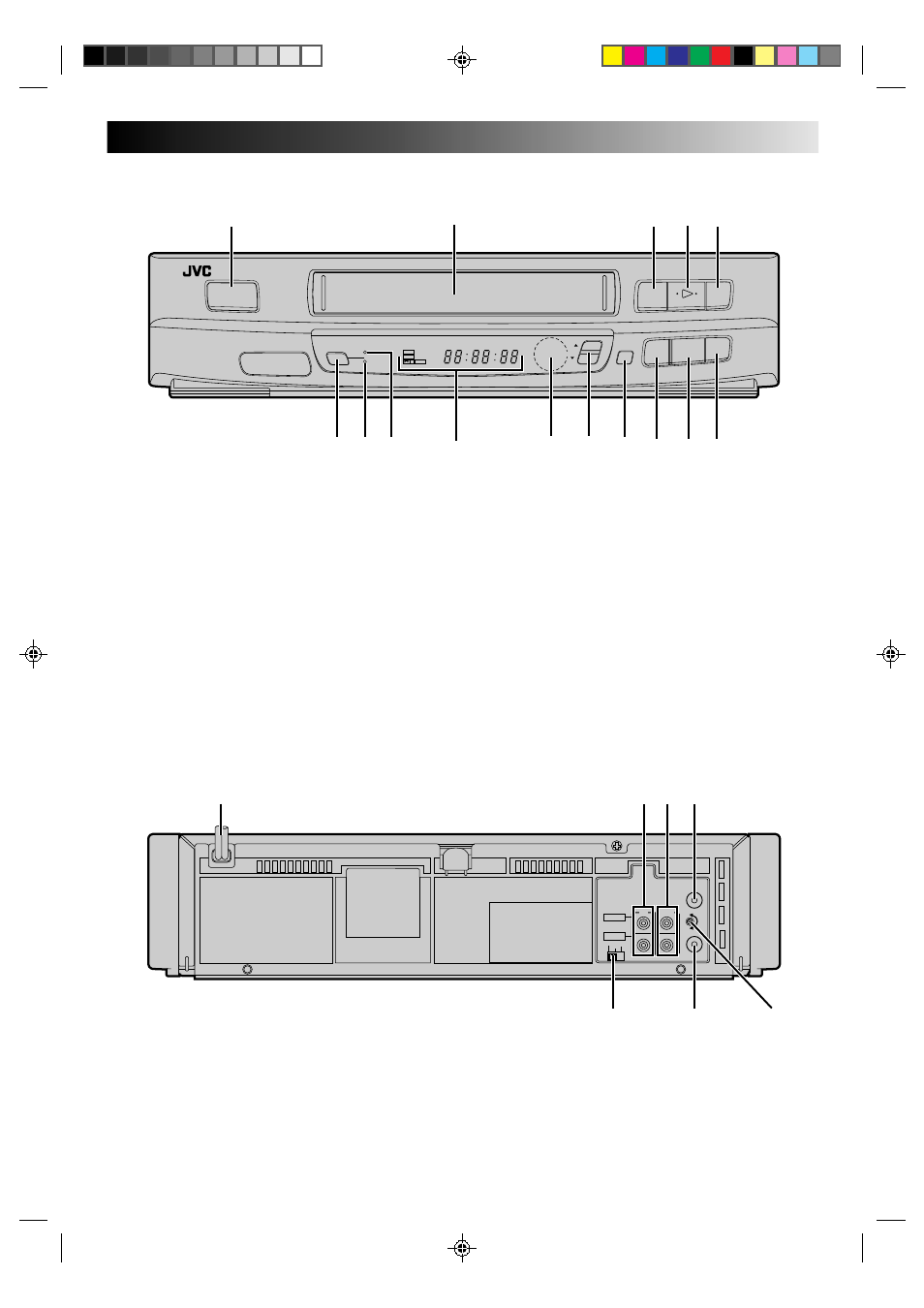

FRONT VIEW
1 Mains Power Cord (
੬
pg. 3)
2 AUDIO and VIDEO IN Connectors (
੬
pg. 20)
3 AUDIO and VIDEO OUT Connectors
(
੬
pg. 3)
4 ANT. IN Connector (
੬
pg. 3)
5 TEST/System Switch (
੬
pg. 4)
6 RF OUT Connector (
੬
pg. 3)
7 RF Output Channel Adjustment Screw (
੬
pg. 4)
REAR VIEW
1 OPERATE Button ( ੬ pg. 4)
2 Cassette Loading Slot
3 Rewind [REW] Button (
੬ pg. 10)
4 PLAY Button (
੬
pg. 10)
OK Button (
੬
pg. 6)
5 Fast Forward [FF] Button ( ੬ pg. 10)
6 AUTO SP/LP TIMER Button (
੬
pg. 19)
7 AUTO SP/LP TIMER Indicator ( ੬ pg. 19)
8 B.E.S.T. Indicator (
੬
pg. 16)
9 Display Panel (
੬
pg. 30)
0 Infrared Beam Receiving Window
! TV PROG.
5/∞ Buttons ( ੬
pg. 6)
@ CH SET Button (
੬
pg. 6)
# RECORD Button ( ੬ pg. 14)
$ STOP/EJECT Button (
੬
pg. 10)
STORE Button (
੬
pg. 7)
% COLOUR SYSTEM Button (
੬
pg. 22)
AUTO SP/LP
TIMER B.E.S.T.
2 2
q
OK
STORE CH
SET
5 / 8 COLOUR
SYSTEM
OPERATE
TV
PROG R E C
TIMER
PLAY NTSC
M
SP LP
7 9 6 @ # $ % 0 !
2 1 3 4 5
8
ANT. IN
RF OUT
IN OUT
AUDIO
VIDEO
32
40
K G TEST
1 4 3 2
6 5 7
INDEX
