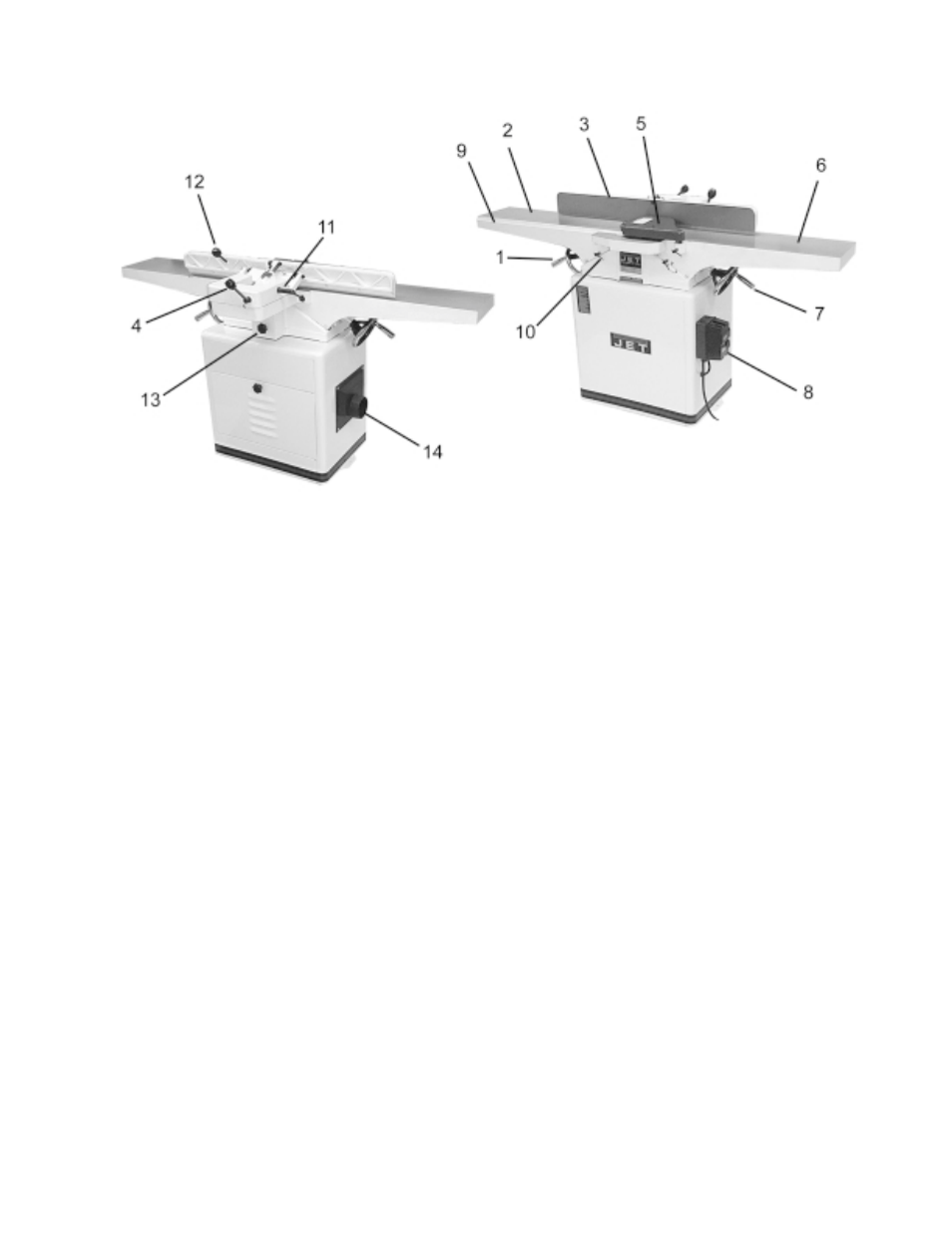

Levers and Controls
1. Handwheel for Outfeed Table 8. On/Off Switch
2. Outfeed Table 9. Rabbeting Ledge
3. Fence 10. Table Lock Knob
4. Fence Adjustment Handle 11. Fence Tilt Lock Handle
5. Cutter Guard 12. Fence Control Handle
6. Infeed Table 13. Belt Guard
7. Handwheel for Infeed Table 14. Dust Chute
Specifications: JJ-8CS
Stock Number ..................................................................................................................... 708458K
Cutting Capacity .......................................................................................................... 8” W x 1/2” D
Cutterhead Speed ............................................................................................................ 5,500 RPM
Number of Knives ............................................................................................................................ 3
Rabbeting Capacity ..................................................................................................................... 1/2”
Table Surface .......................................................................................................... 9” W x 66-1/2” L
Fence ..................................................................................................................... 4” W x 38-1/2” L
Blade Size ............................................................................................................. 8” x 11/16” x 1/8”
Fence Tilts Right and Left ............................................................................................................ 45
o
Positive Stops ....................................................................................................................... 45 o , 90 o
Motor ............................................................................................................ 2 HP, 1 Ph, 230V Only
Net Weight (approx.) ............................................................................................................ 398 lbs.
Shipping Weight (approx.) .................................................................................................... 470 lbs.
The specifications in this manual are given as general information and are not binding. JET Equipment and
Tools reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fittings,
and accessory equipment deemed necessary for any reason whatsoever.
