Technical Specifications
DimenSionS
60” L x 42” W x 26” H
(1524 mm) L x (1067 mm) W x (660 mm) H
Drain/overflow
A: 18.4” (467 mm) B: 11” (279 mm)
CuTouT
Template Provided Part Number: DA09000
ToTal weighT
999 lbs (453 kg) / 57.1 lb/sq. ft. (2279 kg/m
2 )
operaTing gallonage
Min. 77 U. S. Gal. (291 liters)
Max. 83 U.S. Gal. (314 liters)
proDuCT weighT
110 lbs (50 kg)
SkirT mounTing
Not Available
eleCTriCal SpeCifiCaTionS
requires a dedicated gfCi protected separate circuit.
Blower: 120VAC, 20AMP, 60 Hz.
Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.
heaTer (STanDarD)
requires a dedicated gfCi protected separate circuit.
RapidHeat™: P/N BN60000
© 2008 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inSTallaTion noTeS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FR31000 01/08
Duetta
™
6042
Salon ™ Spa
DZ35
Duetta™ 6042 Salon™ Spa with Chromatherapy
Right Hand
• Center Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit: #D095
Sch 40, Rotary Drain Kit: #DA34
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

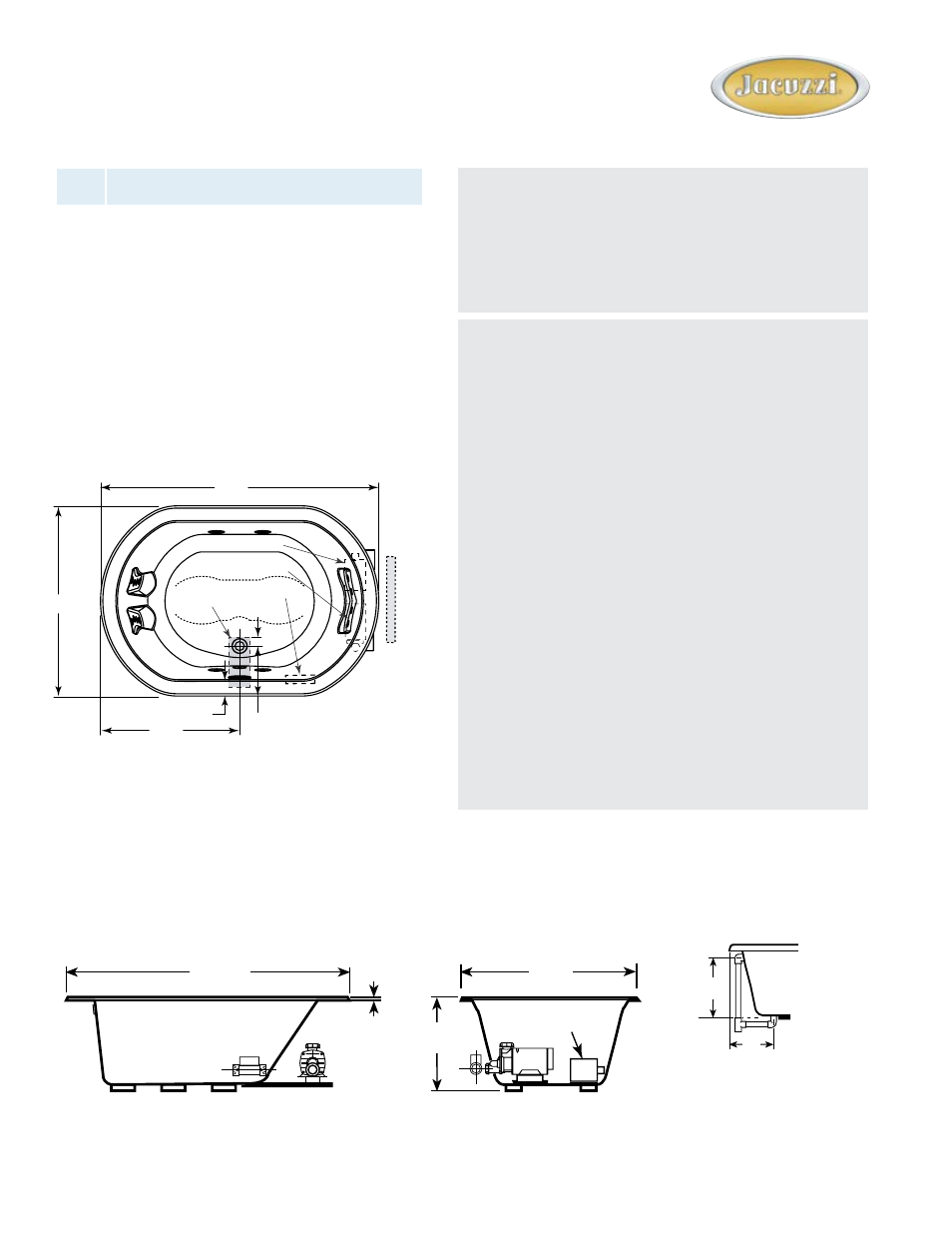

product Shown: Duetta™ 6042 Salon™ Spa
right hand model: DZ35
* Measurements inside unit represent cutout
in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
11.04"
60"
42"
30"
3.84"
13" x 4"
2"
Motor
Heater
12" H x 24"
L
Service Access
Blower
END VIEW
26"
42"
SIDE VIEW
60" 1/2"
(13 mm)
(Motor)
(Inlet Heater)
(Blower)
DRAIN/OVERFLOW
A
B
