Luxura™ 530 Whirlpool Bath with Integral Skirt
Model: N790, N795
Luxura™ 530 Bath with Integral Skirt
Model: EJ91, EJ96
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
N790 Luxura™ 530 Whirlpool Bath
with Integral Skirt Left Hand
N795 Luxura™ 530 Whirlpool Bath
with Integral Skirt Right Hand
EJ91 Luxura™ 530 Bath with Integral
Skirt Left Hand
EJ96 Luxura™ 530 Bath with Integral
Skirt Right Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
4 X HTC Jet Ring Trim Kit: #P413
2 X BMH Jet Trim Kit: #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 30” W x 20-1/4” H
(1524 mm) L x (762 mm) W x (483 mm) H
Drain/Overflow
A: 16-3/4” (425 mm) B: 9-1/4” (235 mm)
Cutout
Not Applicable
Total Weight
662 lb (300 kg) / 53 lb/ft 2 (258 kg/m 2 )
Operating Gallonage
N790, N795: 38 U.S. Gal. (144 Liters)
Max: 47 U.S. Gal. (178 Liters)
EJ91, EJ96: 40 U.S. Gal. (151 liters)
Max: 47 U.S. Gal. (178 Liters)
Product Weight
N790, N795: 95 lb (43 kg)
EJ91, EJ96: 70 lb (32 kg)
Skirt Mounting
Integral
Electrical Specifications Models N790, N795 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models N790, N795 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N U395000
2-1/2"
60"
14-3/8"
30"
12" x 5"*
9-1/4"
Motor
2-1/2" 5-7/8"
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
L
1"
H
W

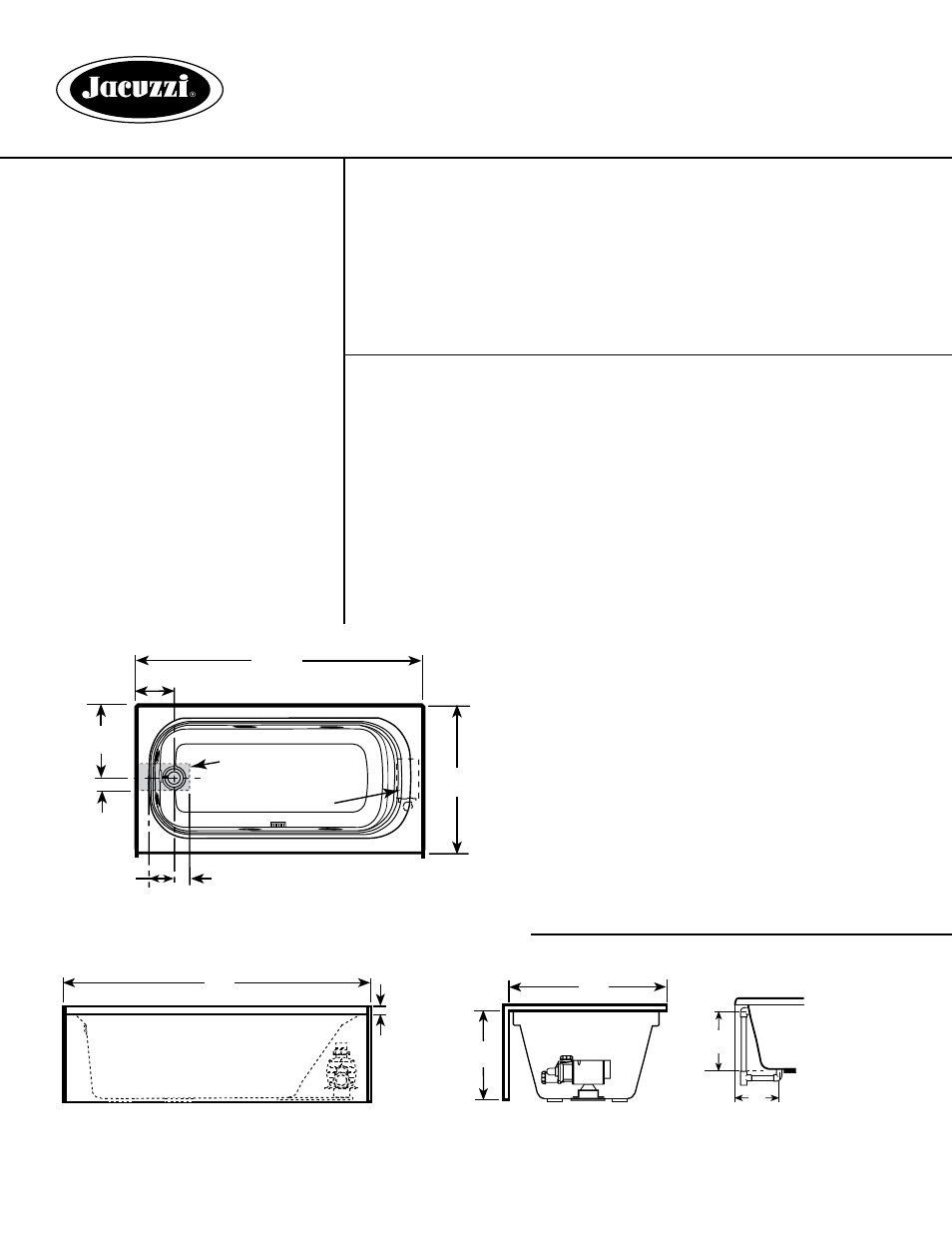

SIDE VIEW END VIEW
#FR63 12/06
DRAIN/OVERFLOW
A
B
Product Shown: Luxura™ 5 Whirlpool Bath with Integral Skirt Left Hand Model: N790
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
