Mito
™
5
pure air® ii Bath
technical Specifications
DiMenSionS
60” L x 42” W x 21” H
(1524 mm) L x (1067 mm) W x (533 mm) H
Drain/overflow
A: 17-1/2” (445 mm) B: 11-7/8” (302 mm)
Cutout
58” x 40” (1778 mm x 1016 mm)
total weight
915 lb (415 kg) / 52 lb/ft2 (255 kg/m2)
operating gallonage
56 U.S. Gal. (212 Liters)
proDuCt weight
109 lb (49 kg)
Skirt Mounting
Optional U-Frame
eleCtriCal SpeCifiCationS MoDelS
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
heater
No water heater is available on this unit. Blower has integral air heater.
© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inStallation noteS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FR69000 01/08
ea70 Mito™ 5 Pure Air ® II Bath, Right Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
30"
42"
*60"
10" x 4"
2"
11-7/8"
Blower
12" H x 18" L
Service Access
Opt. Service
Access
5-3/8"

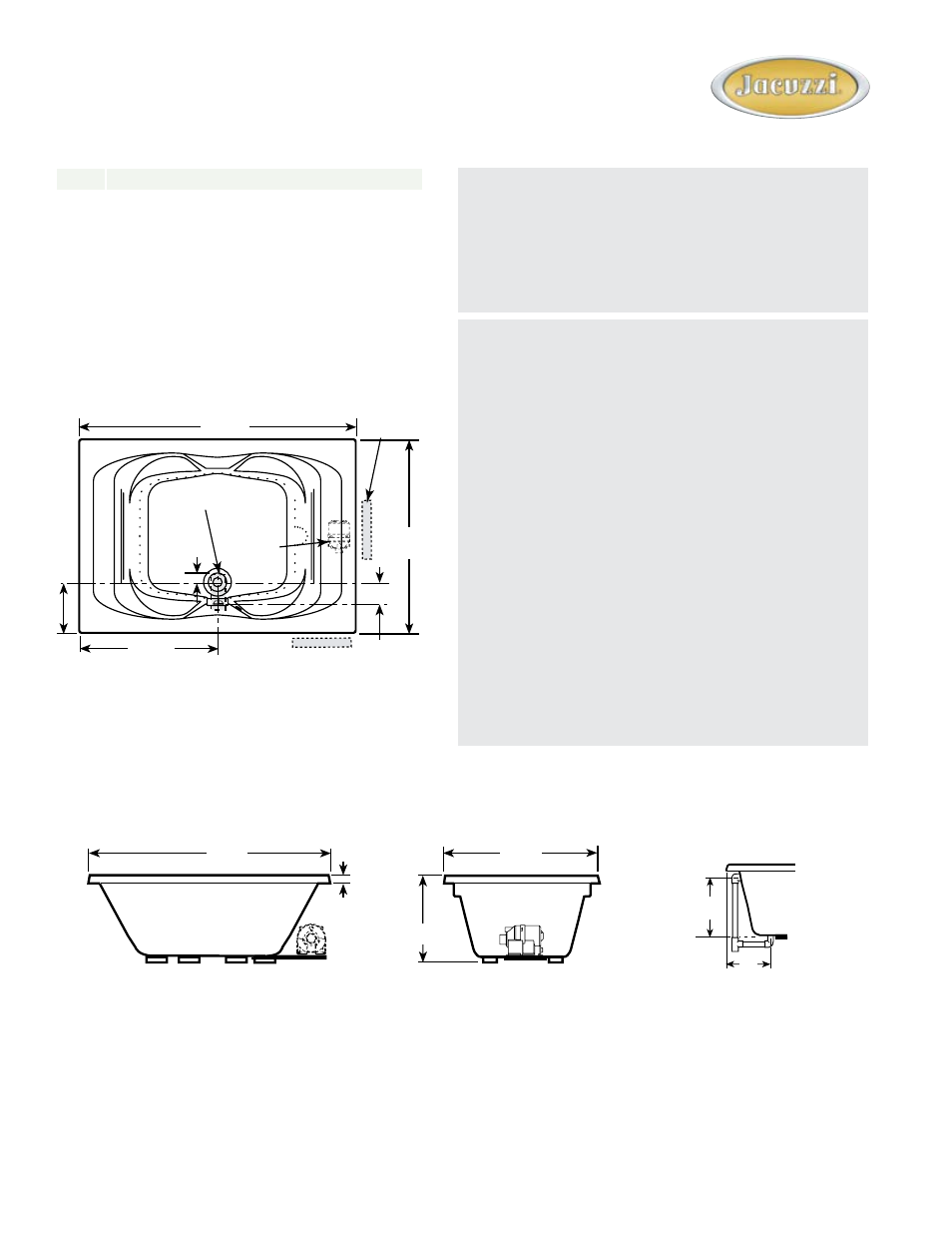

MITO® 5, RIGHT HAND AIR BATH
END VIEW
21"
42"
SIDE VIEW
60"
2"
(51 mm) (Blower)
DRAIN/OVERFLOW
A
B
product Shown: Mito ™ 5 pure air ii Bath
right hand Shown Model: ea70
* Measurements inside unit represent cutout
in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
