Basic Operation
21

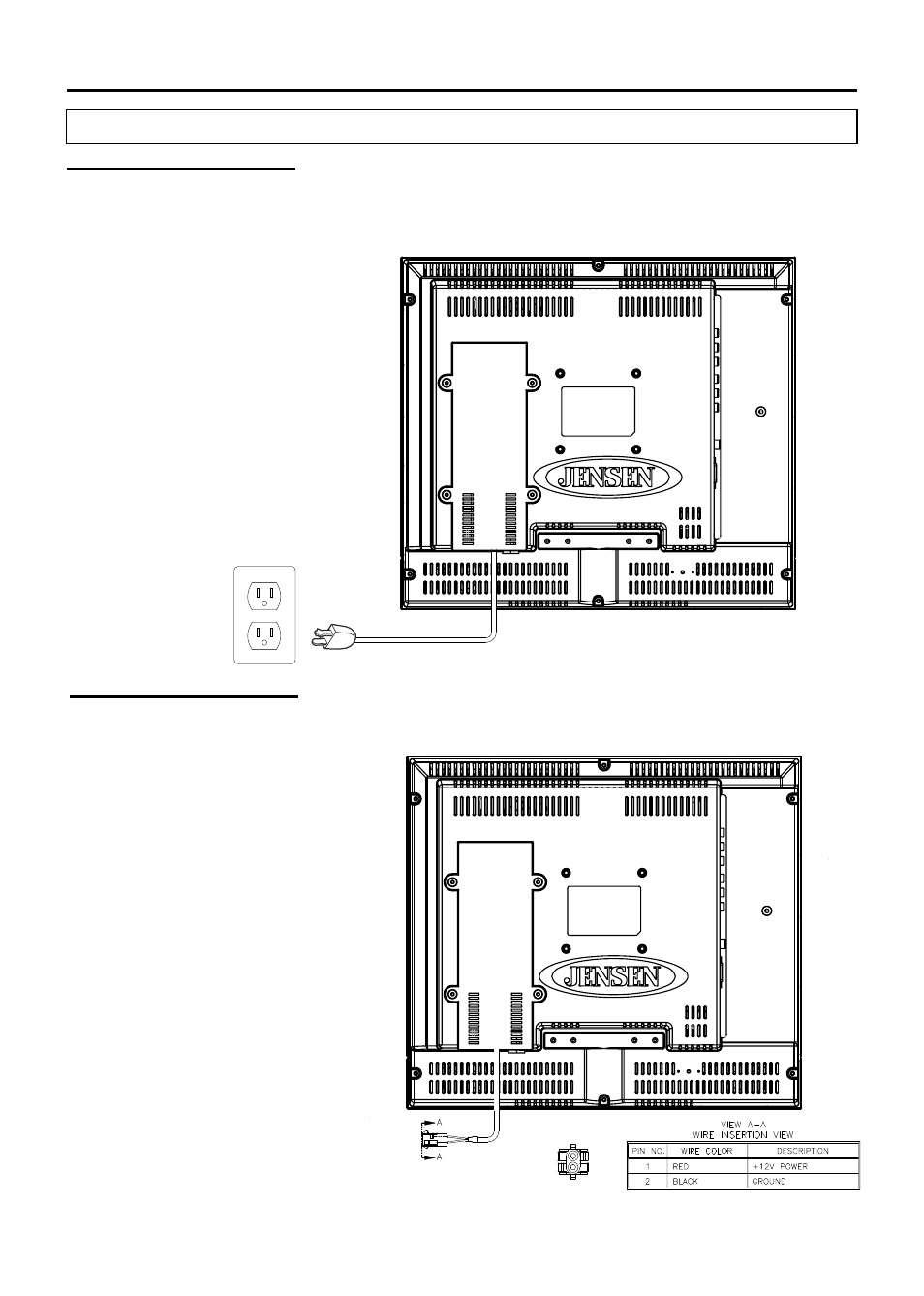

Connecting to your Power Supply
JE1507
JE1507DC
The JE1507 is equipped with a polarized AC power cord plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the
plug still fails to fit, contact your electrician to have a suitable outlet installed. Do not defeat
the safety purpose of the polarized plug by forcing it in.
The JE1507DC is equipped with a 12V DC connector for use in a vehicle. Connect the red
wire to the 12V DC connection and the black wire to the ground terminal or clean
unpainted metal part of chassis..
