Cortina® Whirlpool Bath
Model: EE35
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
EE35 Cortina® Whirlpool Bath
Right Hand
• Center Drain Location
• Accessories / Hardware:
Trim Kit: AccuPro™ Jet Rings #P556
Trim Kit: 1 X PowerPro™ Jet Rings #M952
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
72” L x 72” W x 22-1/4” H
(1829 mm) L x (1829 mm) W x (565 mm) H
Drain/Overfl ow
A: 16-3/4” (426 mm) B: 19-1/4” (489 mm)
Cutout
70” Dia. Hole
Total Weight
1293 lb (587 kg) / 36 lb/sq. ft. (176 kg/m 2 )
Operating Gallonage
100 U.S. Gal. (379 Liters)
Product Weight
210 lb (95 kg)
Skirt Mounting
Not Available
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N U395000
72"
72"
5"
16"
4"
26"
16"
9"
14"x5"*
Motor
12" H x 18" L
Service Access
Heater
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
W
H

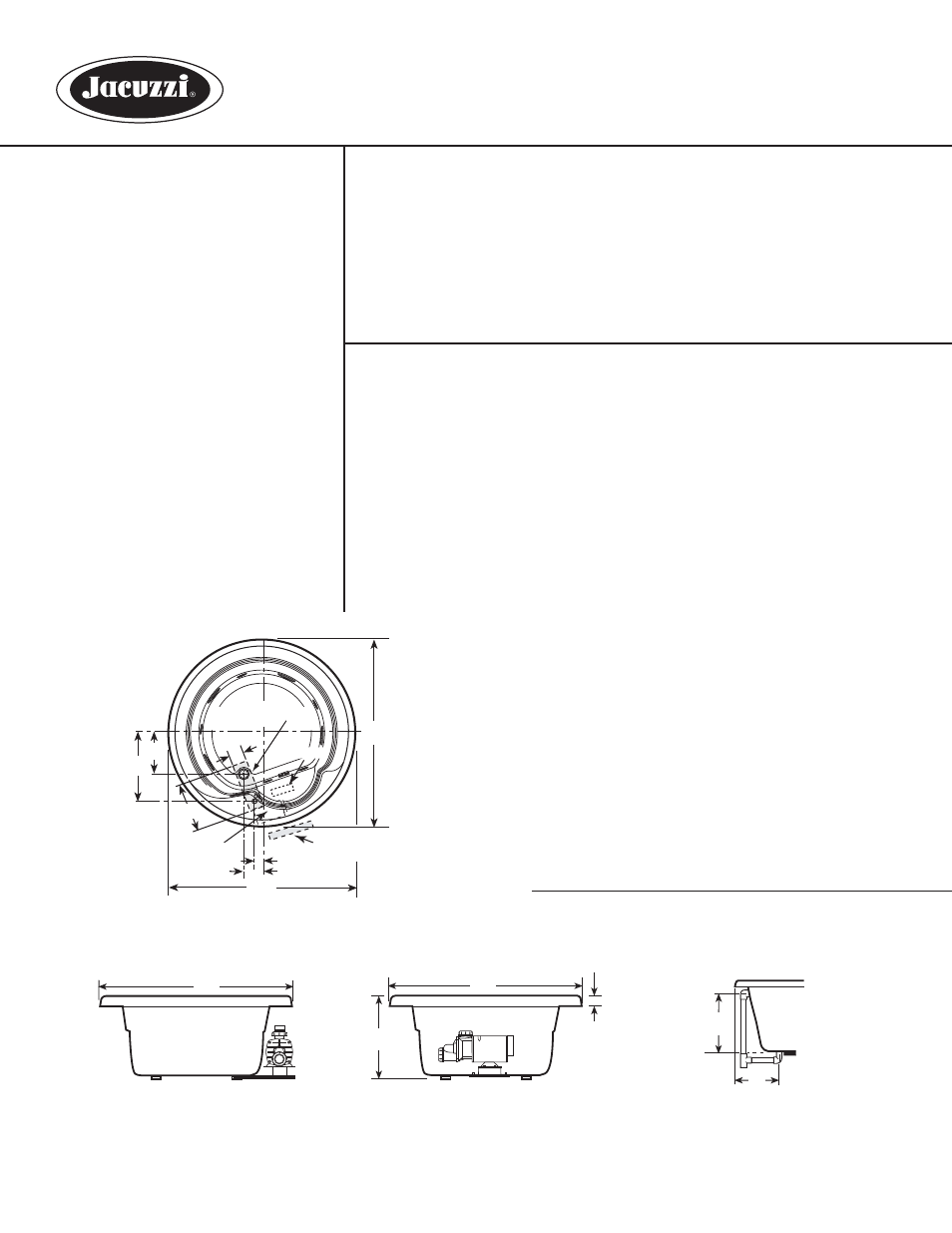

SIDE VIEW END VIEW
2-1/2"
L
#FR30 07/07
DRAIN/OVERFLOW
A
B
Product Shown: Cortina® Whirlpool Bath Right Hand Shown Model: EE35
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
