2

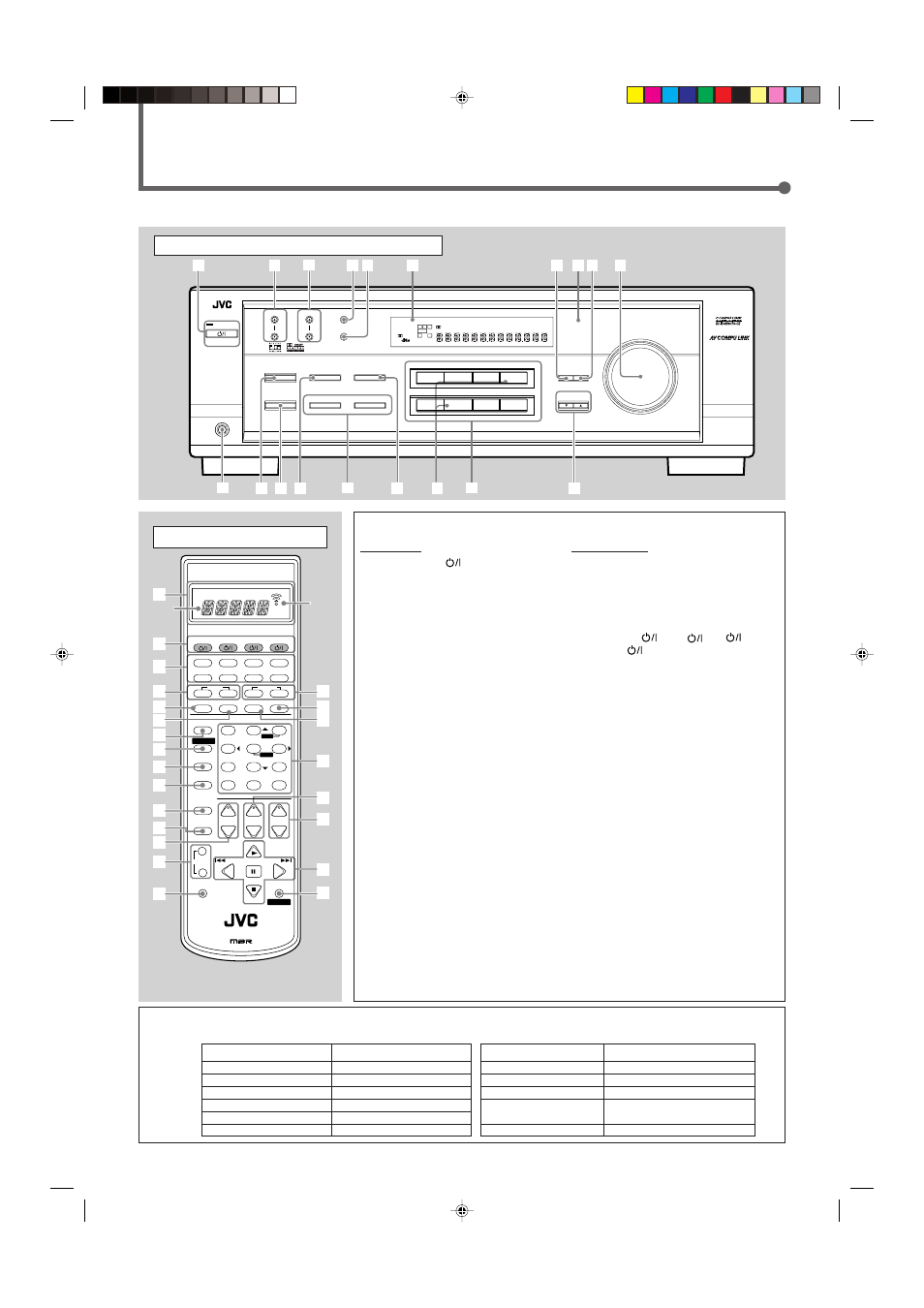

Parts Identification
Front Panel
Remote Control
Front Panel
1 STANDBY/ON button and STANDBY
lamp (10)
2 FM/AM TUNING 5/∞ buttons (21)
3 FM/AM PRESET 5/∞ buttons (21, 22)
4 FM MODE button (22)
5 MEMORY button (21, 22)
6 Display (10)
7 ADJUST button (19, 20, 27 – 29, 30)
8 Remote sensor (3)
9 SETTING button (14, 16 – 18)
p MASTER VOLUME control (11)
q PHONES jack (12)
w SURROUND ON/OFF button (25, 27, 29)
e SURROUND MODE button (25, 27, 29)
r • INPUT ANALOG/DIGITAL button (15)
• INPUT ATT button (19)
t • SPEAKERS ON/OFF 1 button (11, 12)
• SPEAKERS ON/OFF 2 button (11, 12)
y BASS BOOST button (20)
u SOURCE NAME buttons (11)
i Source selecting buttons
(10, 11, 15, 21, 22, 30)
DVD MULTI, DVD, VCR,
TV SOUND/DBS, CD, TAPE/CDR,
PHONO, FM/AM
o CONTROL UP 5/DOWN∞ buttons
(14, 16 – 20, 27 – 29, 30)
Buttons on the Remote Control Remote Control Operation Mode
FM/AM TUNER
CD CD
PHONO PHONO
TAPE/CDR TAPE
DVD DVD
DVD MULTI DVD
* When you press one of these buttons, the remote control operation mode appears on
the display window.
Buttons on the Remote Control Remote Control Operation Mode
TV/DBS TV
VCR VCR
CATV/DBS CONTROL DBS
CONTROL VCR or TAPE
or CDDSC
SOUND SOUND
1
2
3
4
t
u
y
i
o
;
a
s
d
5
6
7
8
9
p
q
w
r
e
a
b
CONTROL +
− +
− +
−
2 3 1
5 6 4
8 9 7/P
0 +10 10
BASS BOOST EFFECT
MENU
ENTER
TEST
DIMMER
MUTING
CH TV VOL
/REW FF/
VOLUME
CATV/DBS
CONTROL
TV/VIDEO
REC
TUNING
PAUSE
RETURN FM MODE 100+
CONTROL
A/V CONTROL RECEIVER
RM-SRX7022U REMOTE CONTROL
CATV/DBS VCR TV AUDIO
SURROUND
MODE INPUT ON/OFF
DVD MULTI DVD CD
TAPE/CDR
TREBLE
TV/DBS VCR PHONO
FM/AM
BASS
SURROUND ANALOG/DIGITAL SLEEP
+
−
– SUB WOOFER +
– REAR • R +
– REAR • L +
– CENTER +
− − + +
SOUND
Remote Control
1 Display window
a: Remote control operation mode indicator
b: Signal transmission indicator
Lights up when transmitting the remote
control signal
2 Power buttons (10, 36 – 39)
CATV/DBS , VCR , TV ,
AUDIO
3 Source selecting buttons
(10, 11, 15, 21, 22, 30, 34 – 39) *
DVD, DVD MULTI, CD, FM/AM, TV/DBS,
VCR, TAPE/CDR, PHONO
4 BASS +/– buttons (20)
5 SURROUND ON/OFF button (25, 26, 28)
6 SURROUND MODE button (25, 26, 28)
7 BASS BOOST button (20)
8 SOUND button (20, 27, 28, 30) *
9 DIMMER button (12)
p MUTING button (12)
q CATV/DBS CONTROL button (37) *
w TV/VIDEO button (36, 37)
e CH (channel) +/– buttons (36 – 38)
r TUNING +/– buttons (21)
t REC PAUSE button (35, 36, 38)
y TREBLE +/– buttons (20)
u SLEEP button (12)
i ANALOG/DIGITAL INPUT button (15)
o • 10 keys for selecting preset channels (22)
• 10 keys for adjusting sound (20, 27, 28, 30)
• 10 keys for operating audio/video components
(34 – 39)
; TV VOL (volume) +/– buttons (36, 37)
a VOLUME +/– buttons (11)
s Operating buttons for audio/video
components(35, 36, 38, 39)
d CONTROL button (34 – 36) *
ADJUST
RX-7022V AUDIO/VIDEO CONTROL RECEIVER
SETTING
MASTER VOLUME
CONTROL DOWN UP SURROUND MODE
PHONES
SURROUND ON/OFF
FM/AM TUNING
STANDBY
FM/AM PRESET FM MODE
MEMORY
1 2 5 4 8 7 9 p
q w t u i o
6 3
STANDBY/ON
DVD VCR TV SOUND/DBS
CD TAPE/CDR
SOURCE NAME
SOURCE NAME
FM/AM
DVD MULTI
PHONO
y r e
L C
S.WFR
LS RS
CH-
S
LFE
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING TUNED STEREO
VOLUME
BASS BOOST
INPUT ATT
SLEEP
DIGITAL AUTO
ANALOG
DIGITAL
LINEAR PCM
1 2
R
BASS BOOST
INPUT ANALOG/DIGITAL
SPEAKERS ON/OFF
INPUT ATT
1 2
See pages in the parentheses for details.
