11
GB
m odel W G 1130 T
dim ensions w idth cm 59,5
height cm 85
depth cm 51
capacity 1 - 5 Kg
electrical
connections
voltage 240 Volt 50Hz
m axim um absorbed pow er 2300 W
w ater
connections
m axim um pressure 1 M Pa (10 bar)
m inim um pressure 0,05 M Pa (0,5 bar)
drum capacity 40,5 litres
spinning speed up to 1050 rpm
Control
program s in
com pliance
w ith IEC
regulation 456
Cotton program :
Turn knob A to the "program 2"setting;
Turn knob B to the "60°C"setting.
This appliance conform s w ith the follow ing E.E.C.
directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and
subsequent m odifications
- 89/336/EEC of 03/05/89 (Electrom agnetic
Com patibility) and subsequent m odifications
Technical characteristics

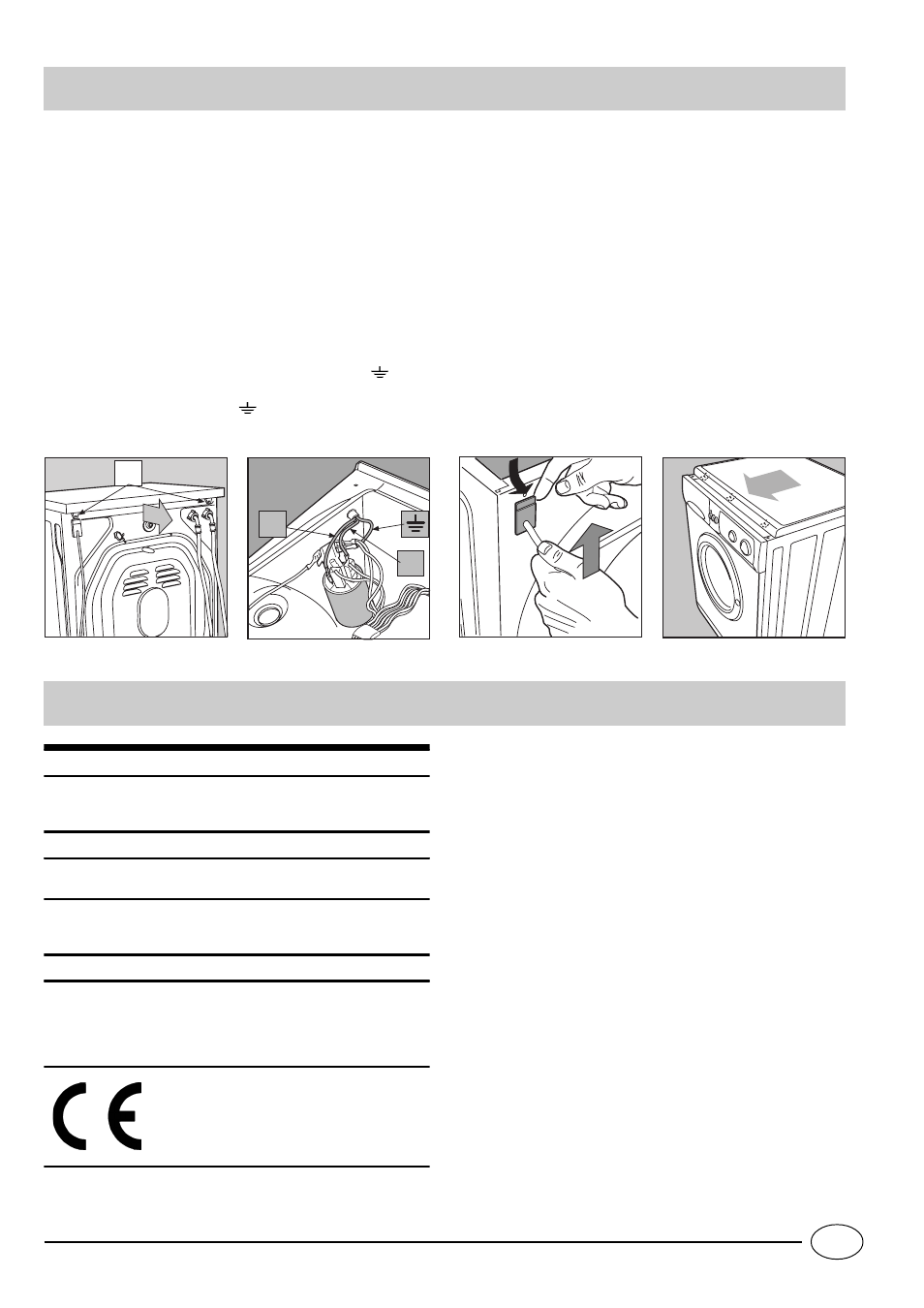

Replacing the power supply cord
The power supply cord is specifically for this washing
machine and is only available from our authorised
Technical Assistance Service Centres.
To replace it, follow the instructions below:
- Make sure that the washing machine is not connected
to the electricity supply by unplugging the appliance from
the wall socket.
- Remove the covering lid by removing the two I screws and
pulling it towards you (Fig. 9).
- Disconnect the small cables from the radio interference
suppressor F (Fig. 10) taking care as to their position (small cable:
Blue=N; small cable: brown=L), leaving the Earth small
cable til last.
N.B.: The letters L, N and the symbol are written on the
radio interference suppressor.
Fig. 11 Fig. 12 Fig. 9 Fig. 10
- Move the upper part of the cord lead slightly away from
the back panel, pull the power supply cable upwards and
then remove it (Fig. 11).
To connect the new power supply cable, do the reverse.
To replace the covering lid, rest it onto the washing machine
(Fig. 12) and let it slide forwards until the hooks on the front
of it are inserted into the appropriate eyelets formed into
the control panel, then fasten the screws tightly back on.
N
L
F
I
