Ice-O-Matic
™
®
Part: 1006B

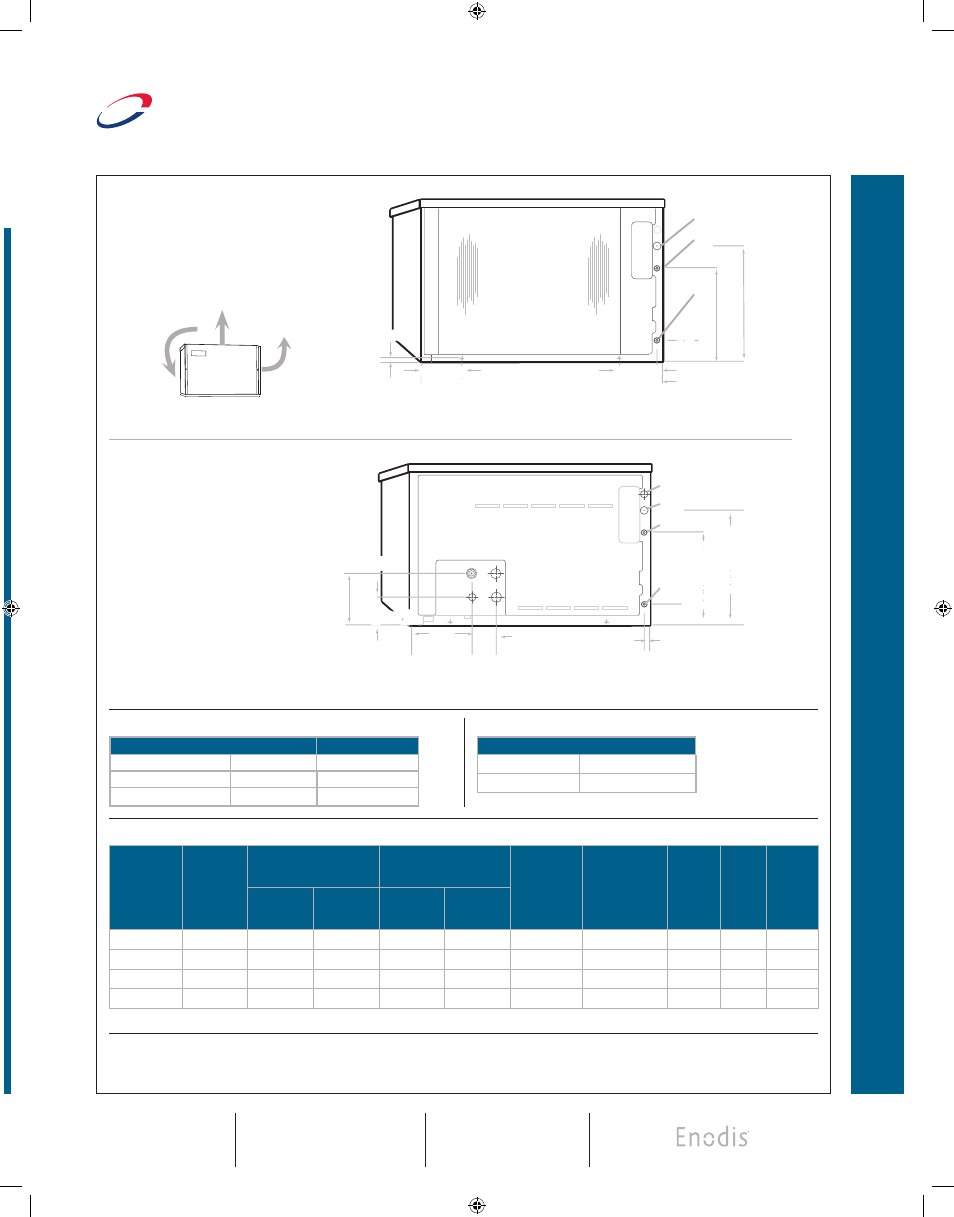

Air Cooled
Please note: air-cooled units require 6. (152 mm) clearance for
air intake and exhaust.
Ice maker potable water in, 3/8" FPT. A.
Ice maker water out, 3/4" FPT. B.
Hole for electrical connections, 7/8". C.
Electrical connection junction box. d.
Air In–
Rear
Standard Side
Discharge
30"
(762mm)
24
20" (508 mm)
24"
(610mm)
Optional Top Discharge– No Side Clearance Required
B.
C.
D.
A.
2.6"
(66.8 mm)
.7" (17.8 mm)
5" (127mm)
Bin Hanger
5" (127mm)
Bin Hanger
.62" (16mm)
14.3" (363 mm)
11.7" (297.1 mm)
Air Cooled
Water Cooled/Remote
Ice maker potable water in, 3/8" FPT. A.
Ice maker water out, 3/4" FPT. B.
Hole for electrical connections, 7/8". C.
Electrical connection junction box. d.
Condenser water in, 3/8" FPT. E.
Condenser water out, 1/2" FPT. F.
Liquid line, 3/8" male quick connect G.
coupling for precharged line set
(remote only).
Discharge line, 1/2" male quick connect
H.
coupling for precharged line set
(remote only).
Hole for remote electrical connections,
I.
7/8" (remote only).
.70"(17.8 mm)
2.6"(66.8 mm)
14.5" (368.3 mm)
7.5"
(190.5 mm)
10.5"
(266.7 mm)
11.7" (297.1 mm)
6.5" (165.1 mm)
E.
D.
F.
B.
C.
A.
3.5" (88.9 mm)
G. H.
3.0" (76.2 mm)
I.
Water Cooled
Operating Requirements
Minimum Maximum
Ambient Temp. Range Air 50˚F (10˚C) 100˚F (38˚C)
Water Temp. 40˚F (4.4˚C) 100˚F (38˚C)
Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)
Dimensions
All Models
W x D x H (inches) 30 x 24 x 20
W x D x H (mm) 762 x 610 x 508
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable Condenser
ICE0500A Air 600 (273) 458 (208) 24.0 - 6.2 115/60/1 19.1 20 9,835
ICE0500T Air, Top Dis. 586 (266) 452 (205) 25.8 - 6.3 115/60/1 19.1 20 9,790
ICE0500R Remote* 567 (258) 455 (207) 28.2 - 6.8 115/60/1 14.9 20 10,278
ICE0500W Water 596 (271) 513 (233) 24.2 120 4.9 115/60/1 14.3 20 9,777
*Requires VRC 1001 Remote Condenser and precharged line set.
NOTES:
Number of Wires:
3 (including ground)
Approx. Shipping Weight lbs (kg): ICE0500A 170 (77) • ICE0500T 170 (77) • ICE0500R 170 (77) • ICE0500W 170 (77)
Refrigerant Type: R404A
