Part No. 1061347 3 MOBILE SHOWER CHAIR
MOBILE SHOWER CHAIR

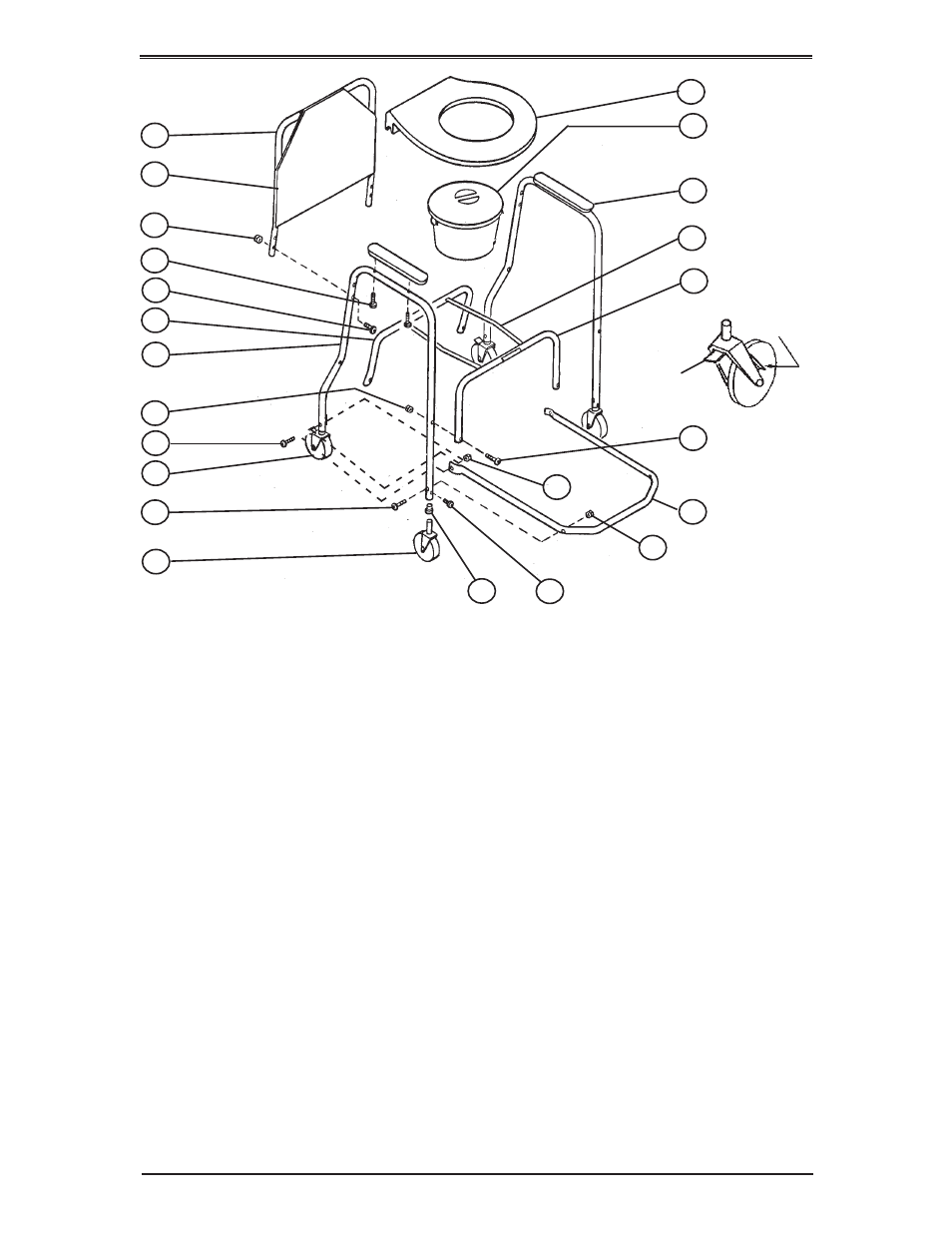

FIGURE 1 - ASSEMBLING THE SHOWER CHAIR/ INSTALLING AND
REMOVING COMMODE SEAT AND LID
FRONT OF
CHAIR
PARTS LIST
ITEM DESCRIPTION
1. Foot Support Tube
2. 5” Caster Assembly w/o wheel Lock
5” Caster Assembly w/ wheel lock
3. Pail with Lid
4. N.E. Nut with Nylon (1/4”-20)
5. Side Frame
6. Seat Rail - Front
Seat Rail - Rear
7. Screw Ph Hd Mach (#10-32X1/2”)
8. Armrest - 2 pc Desk Length
9. Pail Holder-Aluminum
10. Back Frame Tube
11. Upholstery - Nylon Back
12. Toilet Seat Ring
13. Locknut (1/4”-20)
14. Screw Ph Rd Hd (1/4”-20X2-1/4”)
15. Locknut (#10-32)
16. Screw Ph Rd Hd (#10-32X1-3/8”)
17. Screw (#10-32x1-3/4”)
18. Ph. Pan Head Screw (#8-32x5/16”)
19. Screw Ph. Hd. (1/4”-20x1-1/4”)
20. Caster Bearing Sleeve
21.
Rivnut (#10-32)
1
2
3
4
2
5
6
6
7
8
9
10
11
13
14
16
17
18
15
20
LOCK
LEVER
19
RELEASE
LEVER
12
21
