3
MAINTENANCE SECTION

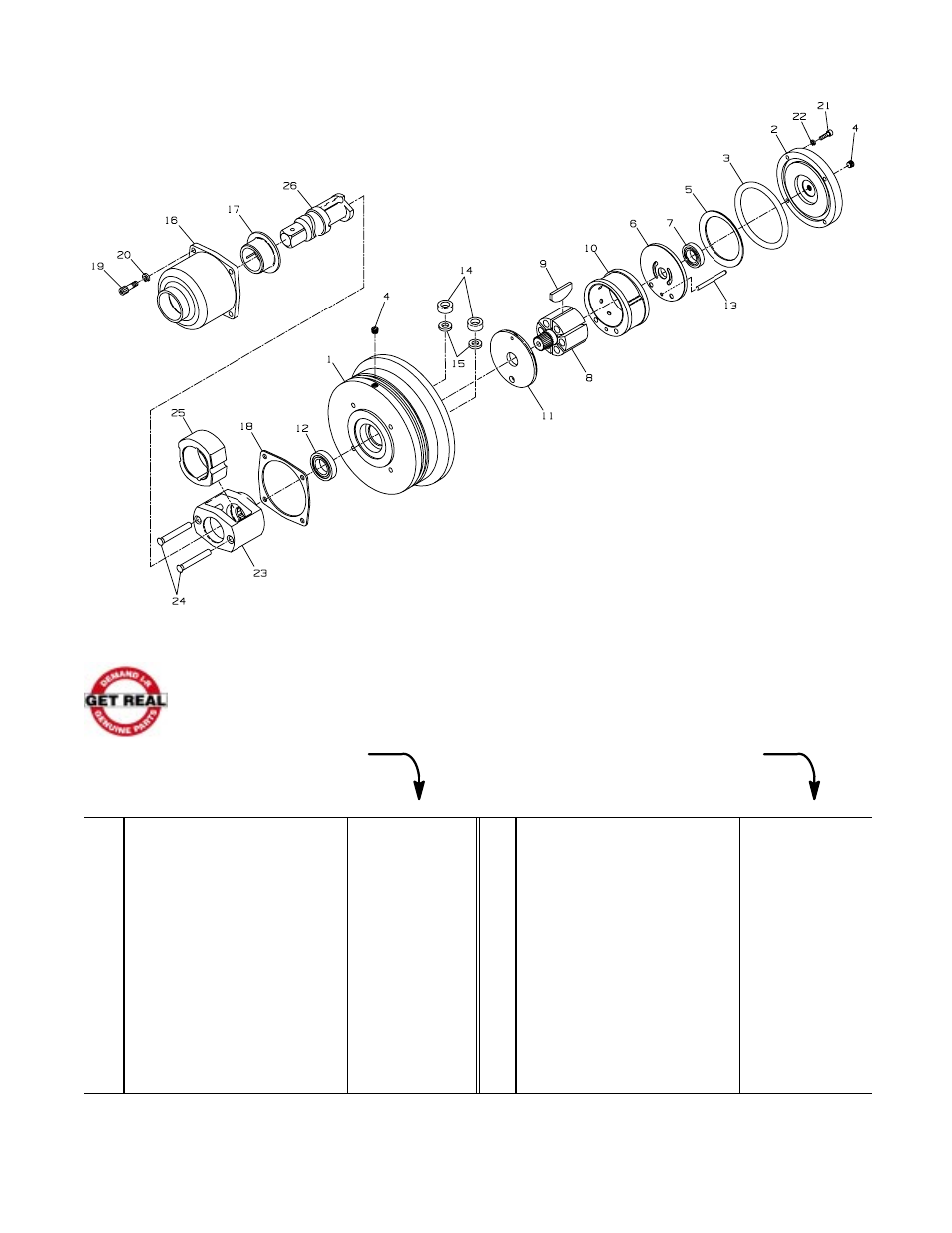

(Dwg. TPA1387)
PART NUMBER FOR ORDERING PART NUMBER FOR ORDERING
1 Motor Housing . . . . . . . . . . . . . . VW–1036 15 Gasket Support (2) . . . . . . . . . . . 2940–200
2 Back Cap . . . . . . . . . . . . . . . . . . VW–1037 16 Hammer Case Assembly . . . . . . VW–1065
3 Seal . . . . . . . . . . . . . . . . . . . . . . . 588–216 17 Hammer Case Bushing . . . . . 2934–641
4 Plug (2) . . . . . . . . . . . . . . . . . . . . R2–227 * Hammer Case Label . . . . . . . WARNING–2–99
5 Clamp Washer . . . . . . . . . . . . . . 2934–207 18 Hammer Case Gasket . . . . . . . . . 2934–36
6 Rear End Plate . . . . . . . . . . . . . . 2934–12 19 Hammer Case Cap Screw (4) . . . 834–638
7 Rear Rotor Bearing . . . . . . . . . . 508–97 20 Hammer Case Lock Washer (4) . 34U–58
8 Rotor . . . . . . . . . . . . . . . . . . . . . VW–1043 21 Back Cap Cap Screw (4) . . . . . . P225–146
9 Vane Packet (set of 6) . . . . . . . . . 2934–42–6 22 Back Cap Lock Washer (4) . . . . VSM–1453
10 Cylinder . . . . . . . . . . . . . . . . . . . VW–1042 23 Hammer Frame Assembly . . . . . 2934–704
11 Front End Plate . . . . . . . . . . . . . . 2934–11 24 Hammer Pin (2) . . . . . . . . . . 2934–704
12 Front Rotor Bearing . . . . . . . . . . 810–97 25 Hammer . . . . . . . . . . . . . . . . . . . 1712–724
13 Cylinder Dowel . . . . . . . . . . . . . 2934–98 26 1” Square Drive Anvil . . . . . . . . 1712–726
14 Air Port Gasket (2) . . . . . . . . . . . R44H–210A
* Not illustrated.
