GETTING STARTED

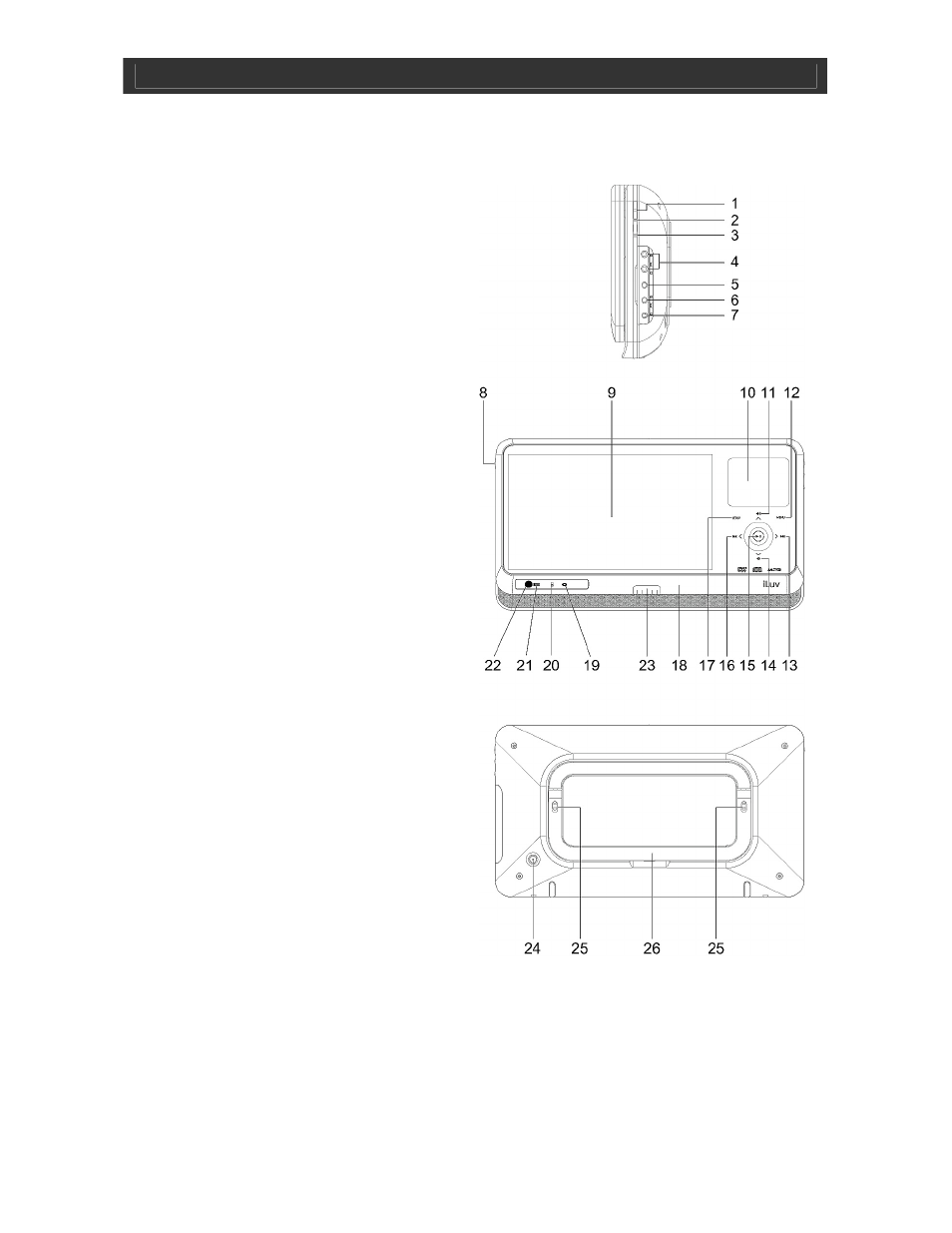

Location of Controls on the Main Unit
Right View
1. Mode/Key
Lock Button
2. Volume Up Button
3. Volume Down Button
4. Phones Jacks
5. S-Video Jack (black)
6. Video Jack (yellow)
7. Audio Jack (white)
Front View
8.
Power On/Off Switch
9. 8.4” TFT LCD Screen
10. iPod Dock Compartment
11. Navigation Up Control
12. Menu
Control
13. Navigation / Skip Forward Control
14. Navigation Down Control
15. Play / Pause Control
16. Navigation / Skip Reverse Control
17. Setup
Control
18. Disc / Dock Cover
19. Disc
Mode Indicator
20. iPod Mode Indicator
21. Battery Indicator
22. Remote Control Sensor
23. Open Button
Back View
24. DC
IN Jack
25. Holds for Desktop Stand
26. Desktop
Stand
