INGERSOLL RAND COMPANY LTD

209 NORTH MAIN STREET -- BRYAN, OHIO 43506

(800)

495-0276

y

FAX (800)

892-6276

© 2010

CCN 15275290

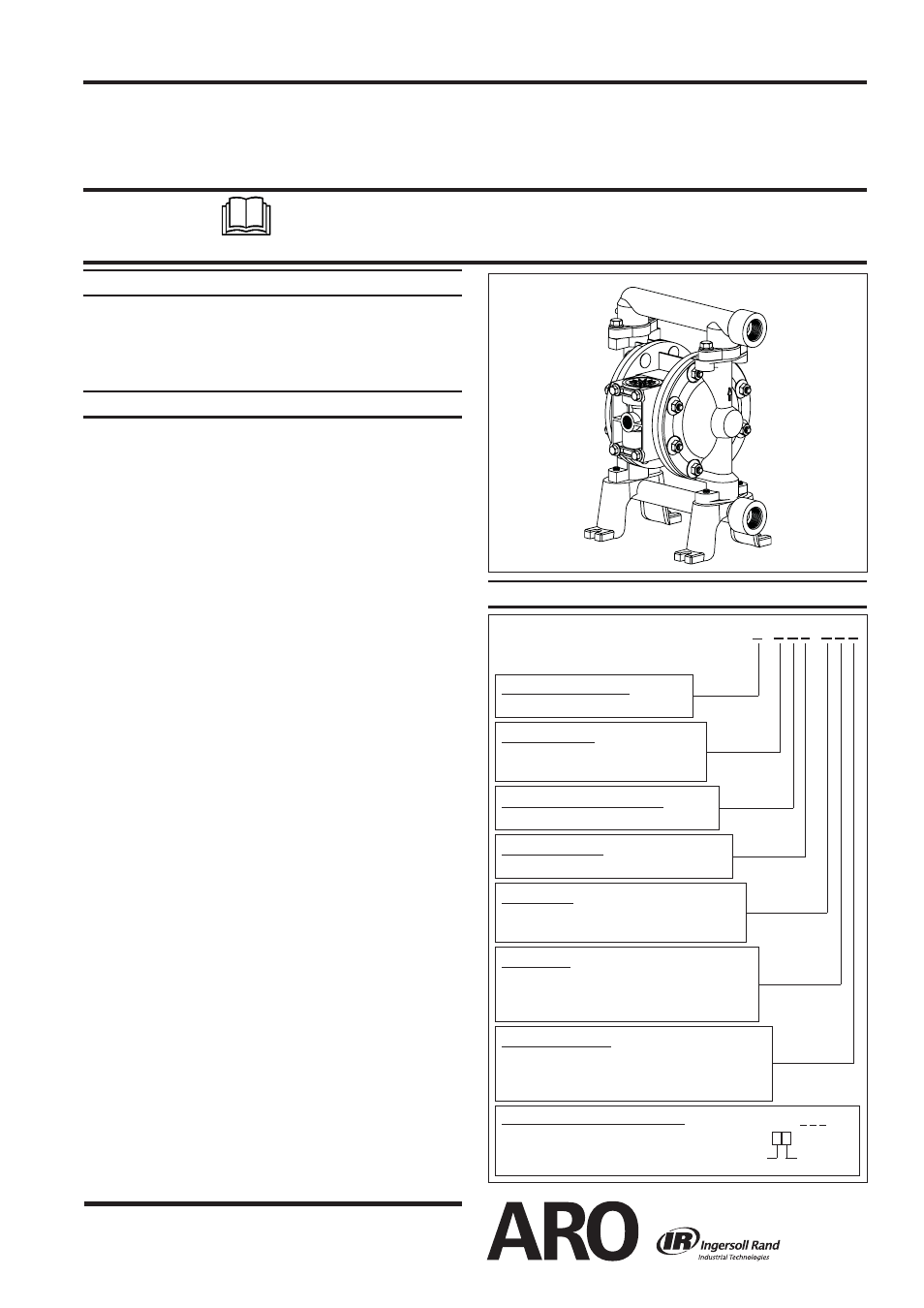

OPERATOR’S MANUAL

PD07X-X-X

INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

RELEASED: 2-20-07
REVISED:

5-21-10

(REV. 04)

3/4" DIAPHRAGM PUMP

1:1 RATIO (METALLIC)

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

Refer to Model Description Chart to match the pump mate-

rial options.

637427-XX for fl uid section repair (see page 4).
637428 for air section repair (see page 6).

PUMP DATA

Models . . . . . . . . . . . . . see Model Description Chart for “-XXX”
Pump Type . . . . . . . . . Air Operated Double Diaphragm
Material . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.74 lbs (3.96 kgs)
Maximum Air Inlet Pressure . . . . . . . . 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 100 p.s.i.g. (6.9 bar)
Air Consumption @ 40 p.s.i. . . . . . . . 1 c.f.m. / gallon (approx.)
Maximum Flow Rate

(fl ooded inlet)

. . . 13.6 g.p.m. (51.5 l.p.m.)

Displacement / Cycle @ 100 p.s.i.g. . 0.030 gal. (0.11 lit.)
Maximum Particle Size . . . . . . . . . . . . . 3/32” dia. (2.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat

material)

Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)

Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . . 75.0 db(A)c

c The pump sound pressure levels published here have been updated to

an Equivalent Continuous Sound Level (L

Aeq

) to meet the intent of ANSI

S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.

NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.

MODEL DESCRIPTION CHART

PD07R - X A S - X X X

Center Section Material
R - Polypropylene

Fluid Connection
A - 3/4 - 14 N.P.T.F. - 2
B - Rp 3/4 (3/4 - 14 BSP, parallel)

Ball Material
A - Santoprene
C - Hytrel
T - PTFE

Fluid Section Service Kit Selection

EXAMPLE: Model #PD07R-AAS-PCC
Fluid Section Service Kit # 637427-CC

PD07R - XAS - X X X

Ball

Diaphragm

637427 - X X

Fluid Cap & Manifold Material
A - Aluminum

Diaphragm Material
A - Santoprene
C - Hytrel
T - PTFE / Santoprene

Seat Material
F - Aluminum
P - Polypropylene

Hardware Material
S - Stainless Steel

Figure 1
