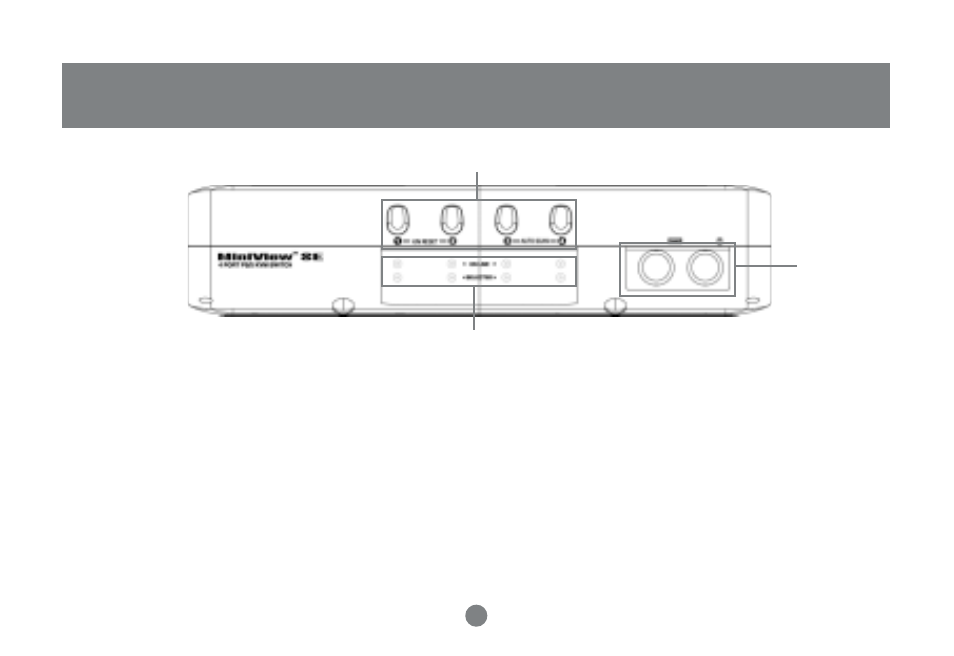

Front View
1. Port Selection Switches
Pressing a push button switch shifts access to the computer connected to its corresponding port.
2. Port LEDs (designed into the port selection switches)
• The On Line LED lights ORANGE to indicate that the computer connected to the port it corresponds to is up and running.
• The Selected LED lights GREEN when the port it corresponds to is the currently selected port. Depending on the port’s
status, the LED may flash according to a specific pattern (see the table in the Appendix for details).
3. Console keyboard and mouse ports
The cables from your keyboard and mouse plug in here.
Each port is identified by an appropriate icon.
Introduction
