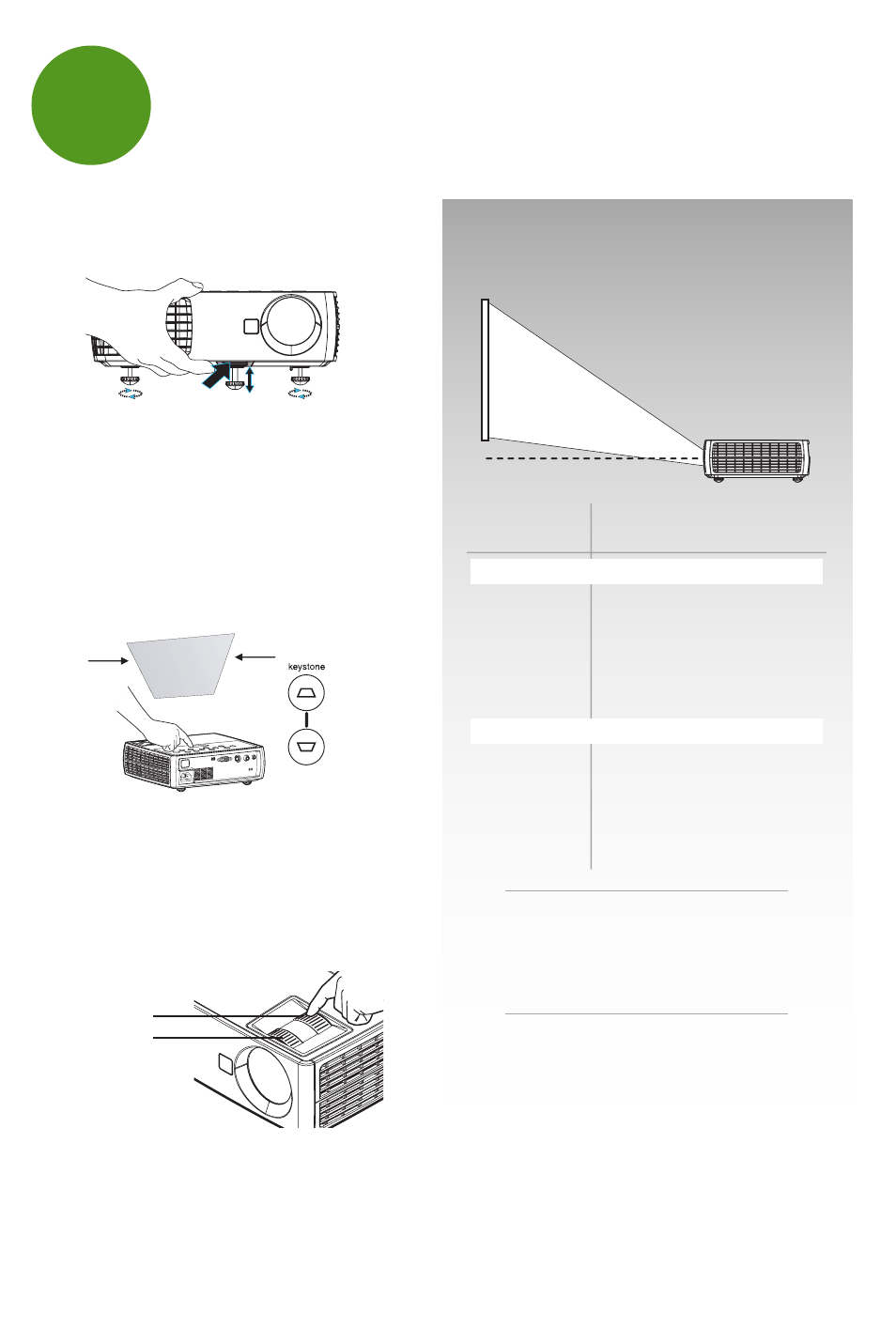

Adjust the picture
1
Height
1 Hold down the release button
under the front of the projector.
2 Lift the front of the projector to
the desired height.
3 Release the button.
2
Keystone
Press the keystone buttons to
make the picture square.
3
Zoom and focus
Adjust zoom fi rst, then focus the
center of the image.
Projector Location
Focus (front)
As distance increases, the
image gets larger and moves
upwards.
Lens center line
Diagonal
Screen Size
Distance to Screen
Minimum Maximum
7'10"/2.4m
10'5"/3.2m
11'8"/3.6m
19'6"/5.9m
60"/1.5m
80"/2.0m
90"/2.3m
150"/3.8m
8'7"/2.6m
11'6"/3.5m
12'11"/3.9m
21'6"/6.6m
5
6'7"/2.0m
8'10"/2.7m
9'11"/3.0m
16'5"/5.0m
60"/1.5m
80"/2.0m
90"/2.3m
150"/3.8m
7'2"/2.2m
9'7"/2.9m
10'10/3.3m
18'0"/5.5m
1
2
Zoom (rear)
Interactive Screen Size and Distance
Calculator
www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories
www.infocus.com/store
IN1100
IN1102
