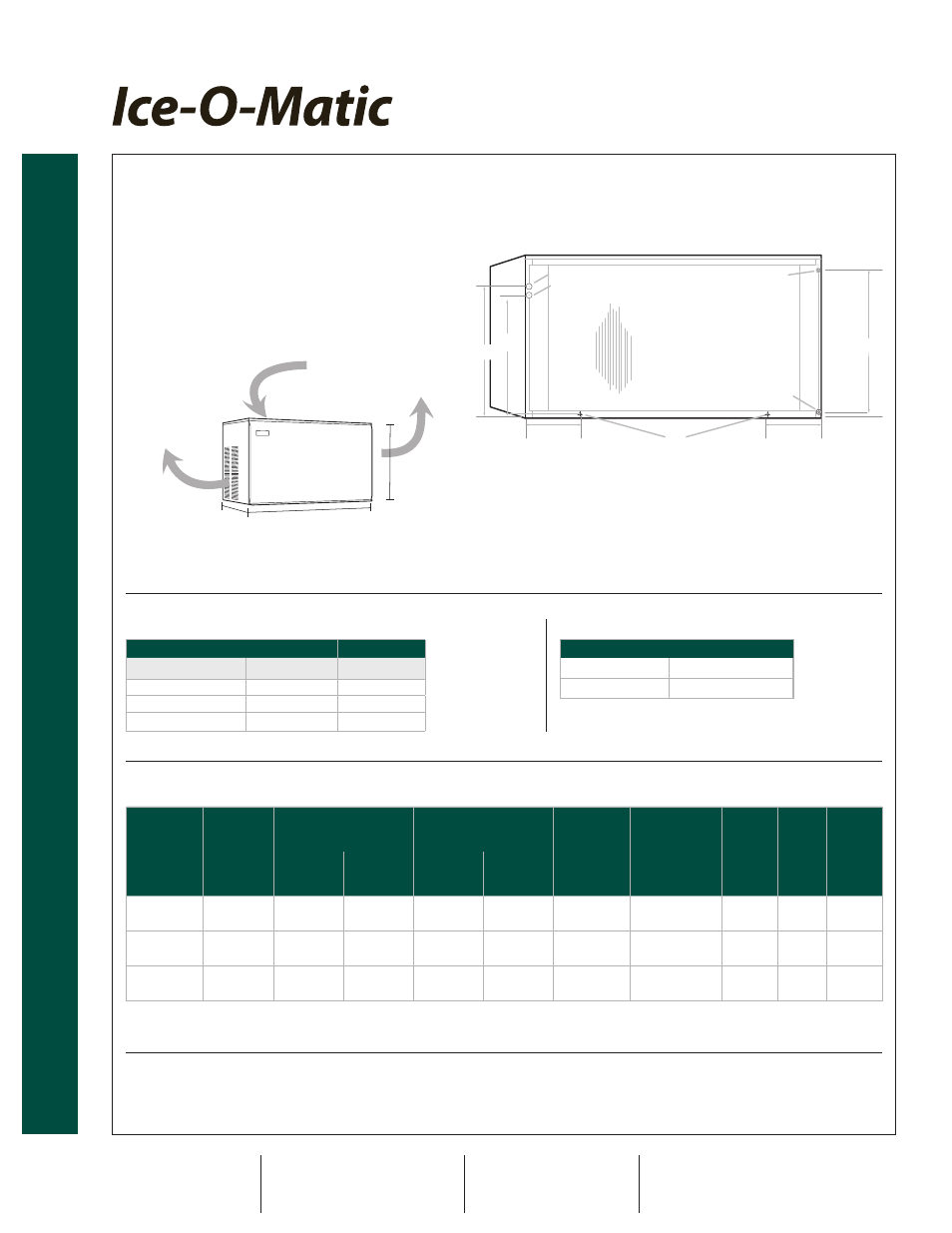

11100 E. 45th Avenue
Denver, CO 80239
Phone: 1. 866. PURE. ICE
Fax:
303. 371.6296
www.iceomatic.com
Rev:
A-01/09
Part:
2007
®
EM
F2
30
6
Fla
ke
Ic
e M
ak
er
EM
F2
30
6
Fla
ke
Ic
e M
ak
er
Air, Remote and Water Cooled
Please note: air-cooled units require 6" (152 mm) clearance
for air intake and exhaust.
a. Ice maker potable water in, 1/4" male flare.
B. Ice maker water out, 9/16" inner
diameter plastic tubing.
C. Hole for electrical connections, 7/8".
d. Hole for electrical connections, 7/8"
remote condenser fan leads
(remote only).
e. Holes for strap mounting to bin
Air Out– Side
Air Out– Side
Air In– Back
26" (660 mm)
24"
(610 mm)
48
"
(1,219 mm)
21"
(532mm)
23.5"
(597 mm)
.5" (13 mm)
9" (229 mm)
Bin Straps
9" (229 mm)
Bin Straps
.75" (19 mm)
A.
B.
E.
C.
D.
19.4"
(494 mm)
Rear View
Operating Requirements
Minimum
Maximum
60 Hz
Ambient Temp. Range Air
50˚F (10˚C)
100˚F (38˚C)
Water Temp.
40˚F (4.4˚C)
80˚F (26.7˚C)
Water Pressure
20 PSIG (1.4 BAR)
60 PSIG (4.1 BAR)
Dimensions
all Models
W x D x H (inches)
48 x 24 x 26
W x D x H (mm)
1,219 x 610 x 660
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable
Condenser
EMF2306AS
Air
2,400 (1089)
1,836 (833)
12.0
-
3.0
208-230/60/1
9.4
15
17,807
EMF2306WS
Water
2,624 (1190)
2,192 (994)
12.0
62.0
2.2
208-230/60/1
8.5
15
19,607
EMF2306RS
Remote*
2,132 (967)
1,868 (847)
12.0
-
2.8
208-230/60/1
10.4
15
18,627
*Requires VRC 2061B Remote Condenser
NOTES:
Number of Wires:
3 (including ground)
Approx. Shipping Weight lbs (kg): EMF2306AS 370 (168) • EMF2306WS 370 (168) • EMF2306RS 370 (168)
Refrigerant Type:
R404A
