5
19" 720p LED HDTV/ 22" 1080p LED HDTV
www.insigniaproducts.com

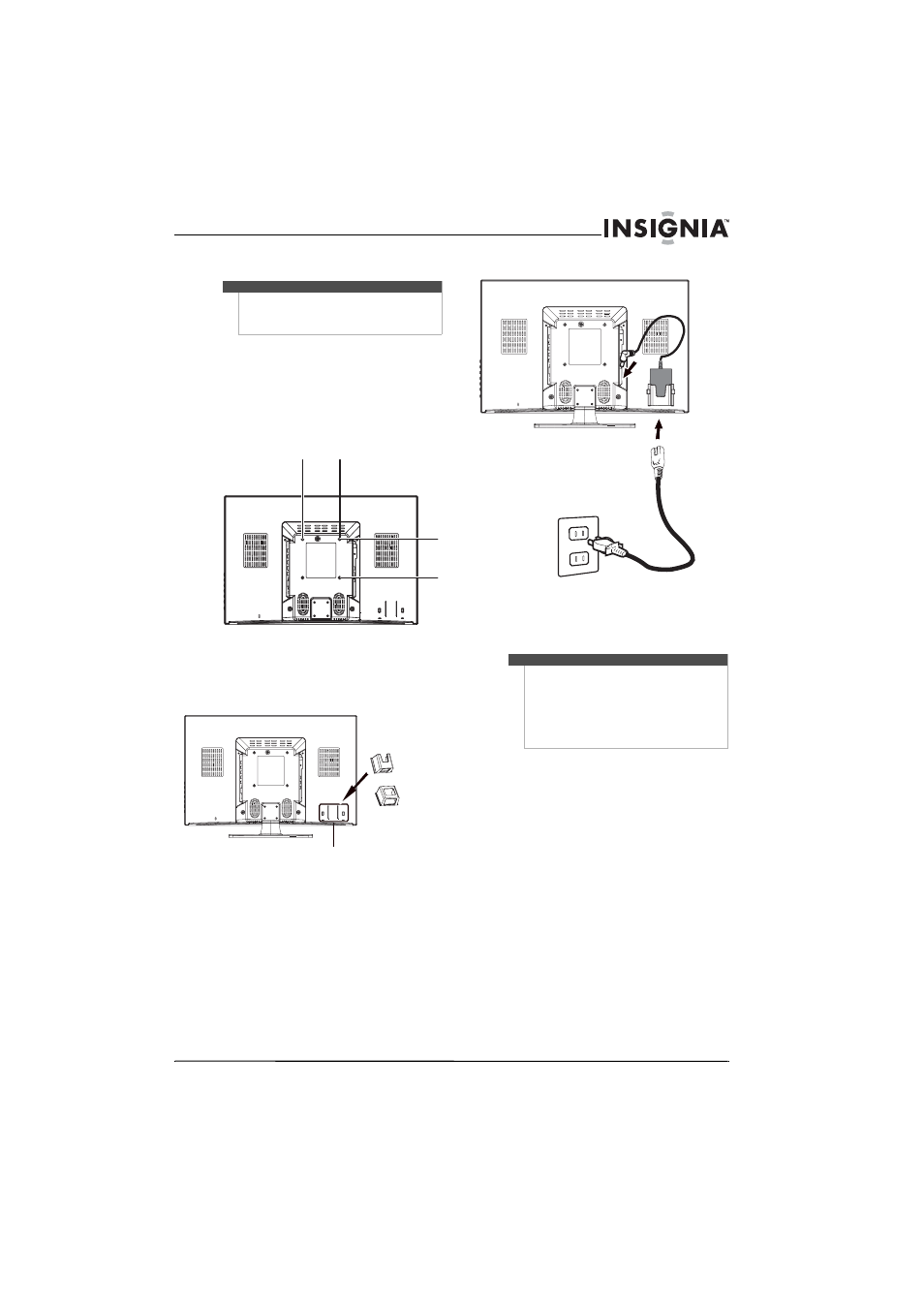

Attaching a wall-mount bracket
To attach a wall-mount bracket:
1 If the stand is installed, remove the four screws
that secure the stand to the TV, then remove the
stand.
2 Secure the wall-mount bracket (not provided) to
the back of your TV using the screws that
secured the stand to your TV. These are M4*12
(4 mm diameter and 12 mm screw thread
length) screws.
Connecting the power cord
To connect the power cord:
1 Slide the AC power adapter holder into the
holder mounting hole on the back of the TV.
2 Place the AC power adapter into the holder.
3 Insert the power cord into the AC adapter, then
insert the AC power adapter into the DC IN 12V
jack on the back of your TV.
4 Plug the power cord into a power outlet.
Warning
These instructions are for use by qualified service
personnel only. To reduce the risk of damage or
injury, do not wall-mount your TV unless you are
qualified to do so.
3.937"
(100 mm)
3.
93
7"
(1
00
mm)
Adapter holder
For
NS-19E430A10
For
NS-22E430A10
Holder mounting hole
Warning
• If you wall mount your TV, make sure that you
use the AC power adapter holder.
• If you place your TV on a flat surface, such as a
table, you do not have to use the AC power
adapter holder.
• When your TV is turned off, power is still flowing
into it. To completely disconnect power, unplug
the power cord.
AC adapter
Power cord
