1. Introduction

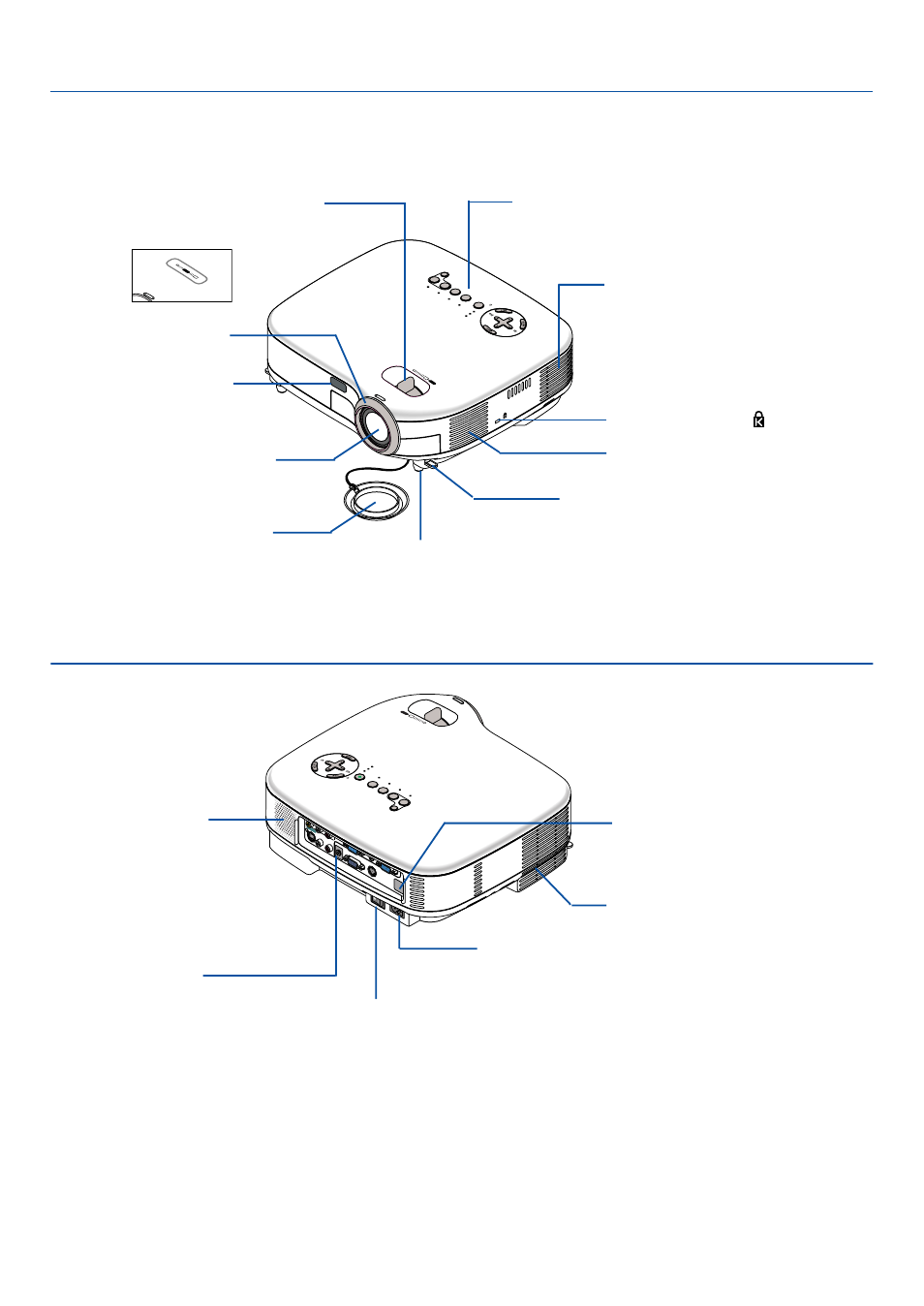

ᕣ Part Names of the Projector
ZOOM
FO CU S
SEL EC T
LA MP ST AT US PO WE R
VID EO
S-V ID EO CO MP UT ER -1 CO MP UT ER -2
ON /ST AN D B Y
AU TO AD J.
AC IN
ZOOM
FOCU S
SE LEC T LAM P STAT US POW ER
VIDEO
S-VIDEO
COM PU TER-1 COM PUTER-2
ON/STAND B
Y
AU TO ADJ.
AUDIO OUT
S-VIDEO IN
COMPUTER 1 IN
COMPUTER OUT
PC CONTROL
AUDIO
AUDIO
COMPUTER 2 IN
VIDEO IN
AUDIO L/MONO
R
AUDIO L/MONO
R
Zoom Lever (VT676/VT670/VT575/VT470)
Digital Zoom Button (VT47)
(See page 25 )
Controls
(See page
6 )
Lens
Lens Cap
Built-in Security Slot ( )*
Focus Ring
(See page 25 )
Adjustable Tilt Foot Lever
(See page
24 )
Adjustable Tilt Foot
(See page
24 )
Remote sensor
(See page 10 )
Ventilation (inlet) / Filter Cover
(See page
48 )
Ventilation (inlet)
Front/Top
AC Input
Connect the supplied power cable's two-pin plug here, and
plug the other end into an active wall outlet. (See page
20 )
Main Power Switch
When you plug the supplied power cable into an active wall outlet
and turn on the Main Power, the POWER indicator turns orange
and the projector is in standby mode.
(See page
21 )
Remote sensor
(See page
10 )
Terminal Panel
(See page 7 )
Monaural Speaker
(1W)
Rear
* This security slot supports the MicroSaver ® Security System. MicroSaver ® is a registered trademark of
Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Ventilation (outlet)
Heated air is exhausted from here.
FO CU S
ZO OM
