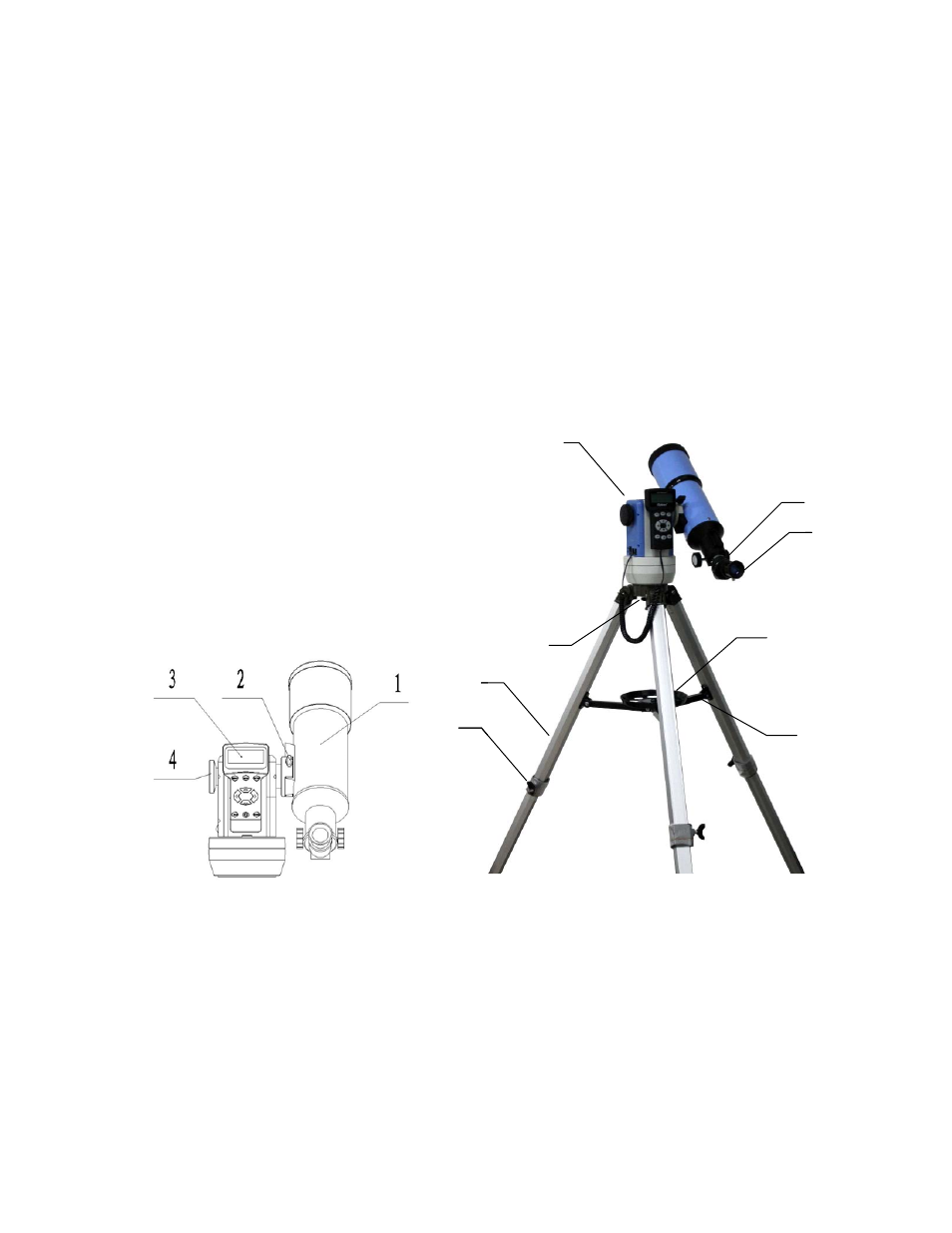

1.2. SmartStar
®
R-80 Assembly Terms
1. Telescope
2. Dovetail Lock
3. Hand Controller
4. Altitude Lock
5. Mount
6. Diagonal
7. Eyepiece
8. Accessory Tray
9. Tripod Support Bracket
10. Tripod Leg Lock
11. Tripod
12. Azimuth Lock
6
7
5
11
10
8
9
12
6
7
5
11
10
8
9
12
