Door Latch Assembly Installation Instructions
© 2004, IMI Cornelius Inc. - 3 - Publication Number: 729011146INS

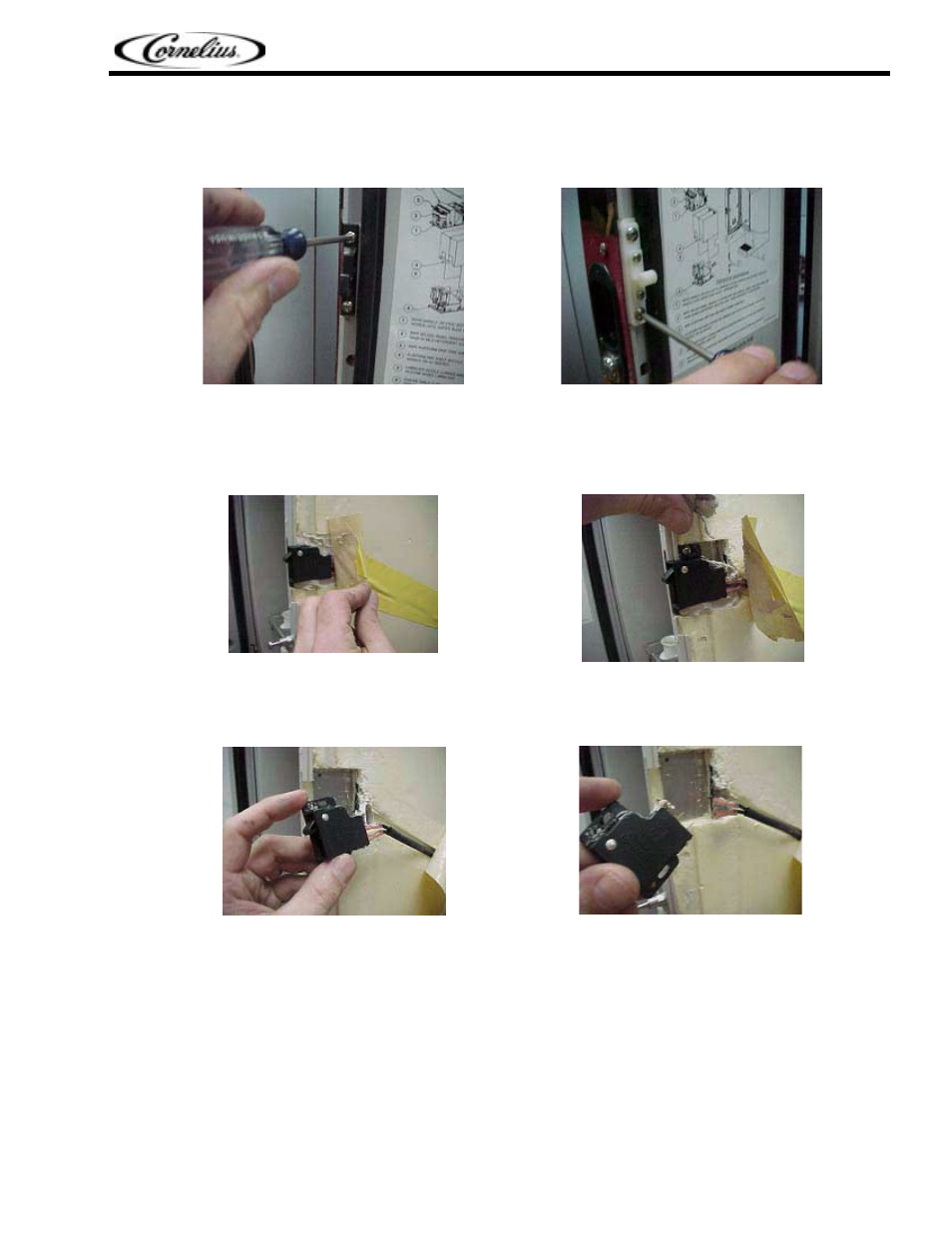

3. Remove and replace door catch.
A. Remove (2) 8-32 screws holding existing
door catch.
B. Replace catch with new catch assembly.
Fasten to door with 8-32 x 5/8” screws.
FIGURE 8
FIGURE 9
4. Remove and replace cabinet catch.
A. Pull back tape back exposing catch/switch. B. Remove and save insulation putty to be rein-
stalled later.
FIGURE 10
FIGURE 11
C. Remove (2) 6-32 screws holding existing
latch/switch.
D. Remove latch/switch from wire harness.
FIGURE 12
FIGURE 13
