9
www.insigniaproducts.com
Making connections
Connecting the power
To connect the power:
• Plug the power cord into the AC IN jack on the
back of your TV, then plug the other end of the
cord into a power outlet.

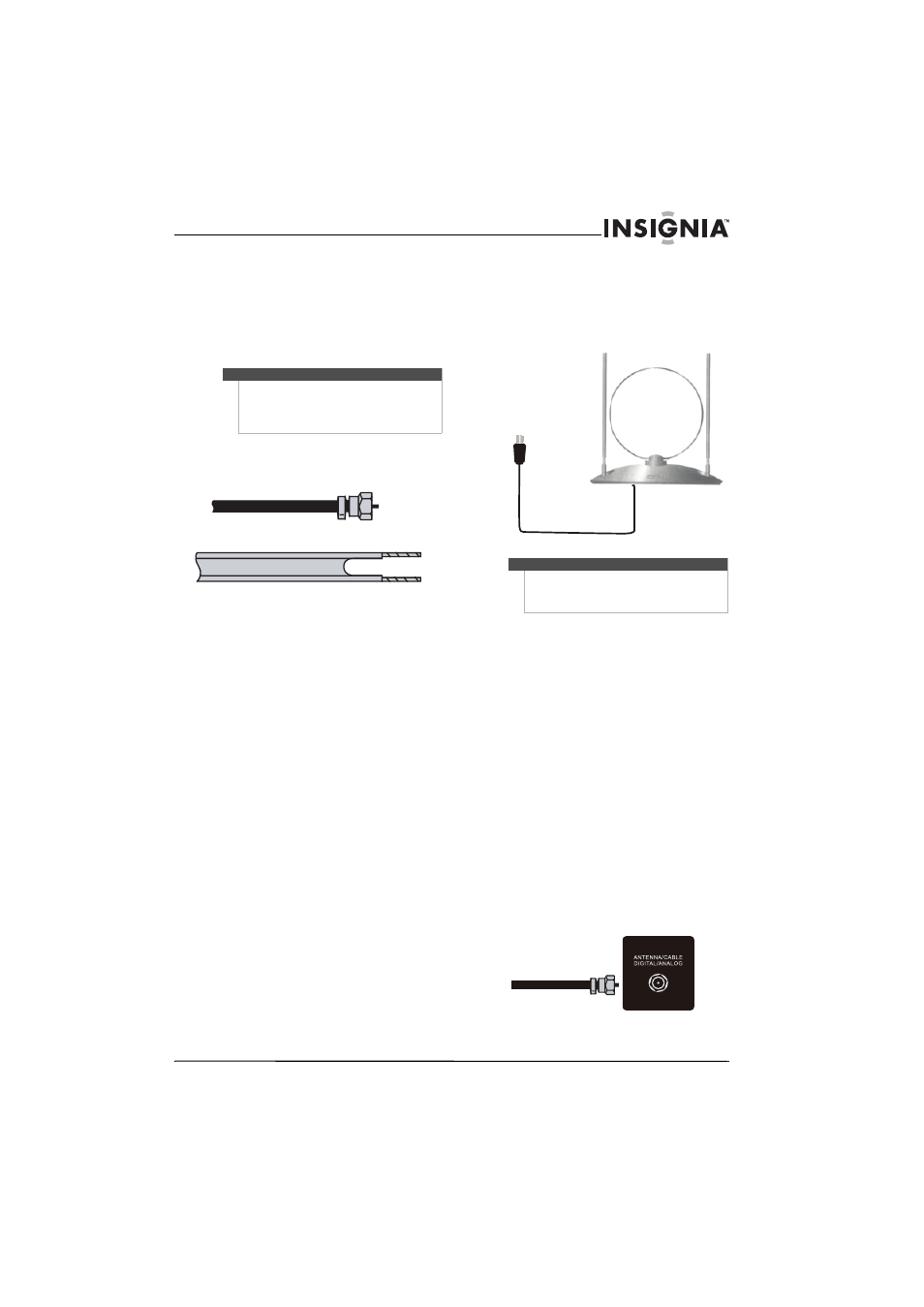

Connecting an outdoor antenna
Antenna cables come in two types: 75 ohm and
300 ohm.
To connect an outdoor antenna:
1 Turn off your TV and all connected equipment.
2 If your antenna cable has a 75 ohm connector,
connect the cable to the ANTENNA/CABLE
DIGITAL/ANALOG jack on the back of your TV.
Or,
If your antenna cable has a 300 ohm
connector, connect the cable to a 300-75 ohm
adapter (not included), connect the adapter to
a 75 ohm cable, then connect the other end of
the 75 ohm connector to the
ANTENNA/CABLE DIGITAL/ANALOG jack on
the back of your TV.
3 Connect the other end of the cable to the
antenna jack.
Connecting an indoor antenna
To connect an indoor antenna:
1 Turn off your TV and all connected equipment.
2 Connect a dual-telescoping dipole antenna (not
included) to the ANTENNA/CABLE
DIGITAL/ANALOG jack on the back of your TV.
Connecting cable TV
Your TV has a 75 ohm jack for connecting cable TV.
Some cable TV providers scramble the signals for
“premium” (pay) channels. To view these channels,
you need a converter/descrambler box.
If you do not require a converter/descrambler box,
you can connect your cable TV directly to your TV.
For more information, see “No
converter/descrambler box” on page 9.
If you require a converter/descrambler box, you can
connect your cable TV using an RF switch (not
included). For more information about connecting
a converter/descrambler box, see “With
converter/descrambler box” on page 10 and
contact your cable TV provider.
You can also connect cable TV using an HDMI,
component video, S-Video, or AV connection,
depending on your cable box. For more
information, see “Connecting cable TV via a cable
TV box” on page 10.
No converter/descrambler box
To connect cable TV without a
converter/descrambler box:
1 Connect one end of a 75 ohm cable to the
coaxial jack on the back of your TV.
2 Connect the other end of the cable to the cable
TV wall outlet.
Cautions
• Make sure that you use the correct type of
power. See the label on your TV.
• If you do not intend to use your TV for an
extended period of time, unplug the power
cord from the power outlet.
75 ohm cable
300 ohm cable
Note
Distance from the transmitting source, a man-made
shelter, or natural atmospheric conditions might
influence the reception, which is not related to
antenna performance.
