Owner’s Manual/Installation Guide – 3
For your convenience, we’ve included several application
diagrams to help you plan your own system installation.
Figures 1 through 3 show how to configure the Kappa 54a
for stereo, bridged-mono, and tri-mode operation.
For system expansion ideas, see the next page.
NOTE: For simplicity, Figures 1 through 3 do not show power,
remote, and input connections.
REM
R
–
–
+
+
L
R
–
–
+
+
L
+
-
+
-
+
-
+
-
Set Front Mode
To STEREO
(on top panel)
Set Front Filters
To FLAT & F+R (on AUX)
(on top panel)
Set Rear Mode
To STEREO
(on top panel)
Set Rear Filter
To FLAT
(on top panel)
KAPPA 54a
(rear panel)
LR Speaker
RR Speaker
RF Speaker
LF Speaker
REM
R
–
–
+
+
L
R
–
–
+
+
L
+
-
LF
System
+
-
RF
System
-
+
Set Front Mode
To STEREO
(on top panel)
Set Front Filters
To HP & F+R (on AUX)
(on top panel)
Set Rear Mode
To BRIDGE
(on top panel)
KAPPA 54a
(rear panel)
Rear
Subwoofer
Set Rear Filter
To LP
(on top panel)

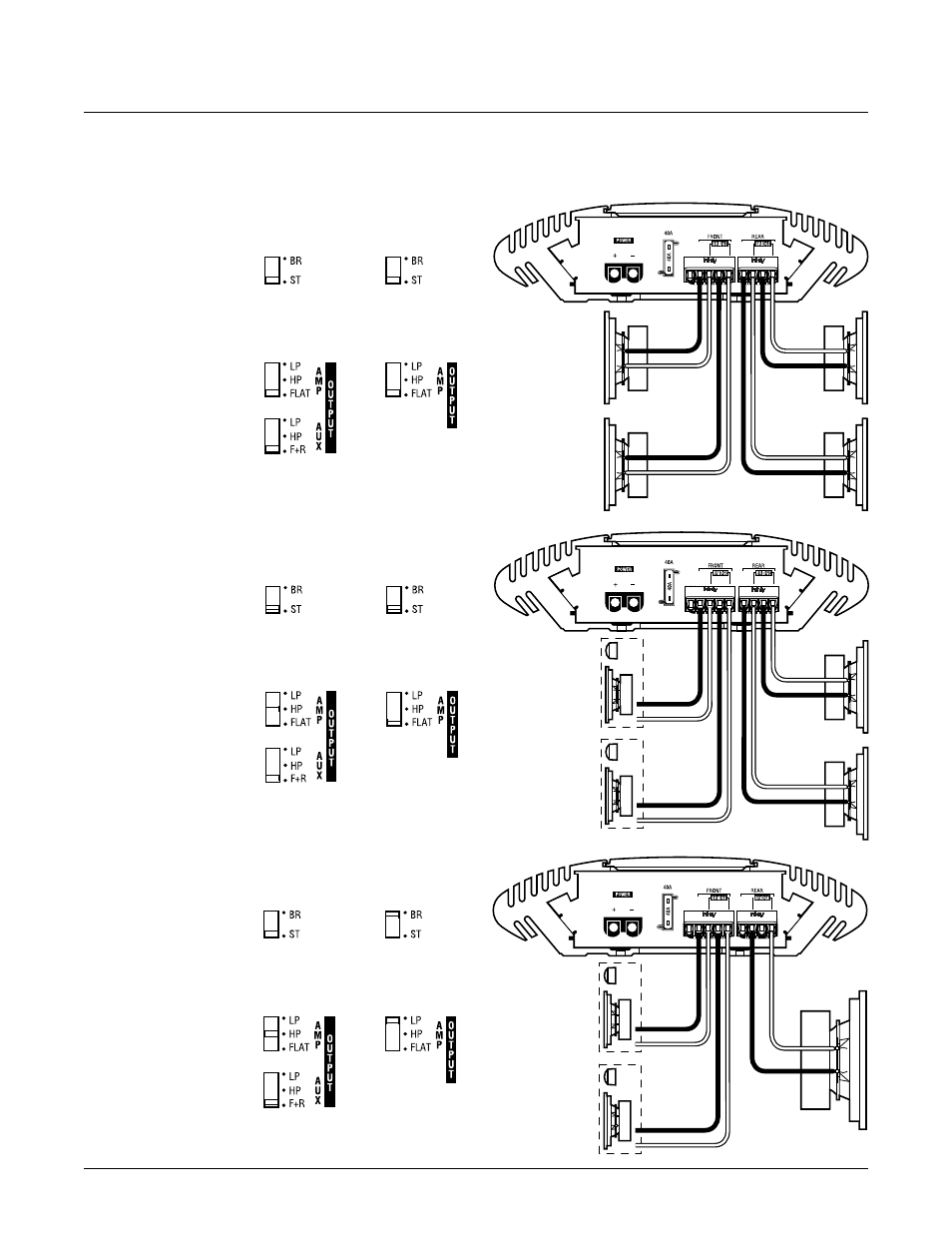

Figure 1. This wiring
diagram shows a
Kappa 54a amplifier
driving front and rear
pairs of full-range
speakers.
Figure 2. This wiring
diagram shows a
Kappa 54a amplifier
driving a front pair of
tweeter/midrange
systems and a rear pair
of full-range speakers.
Figure 3. This wiring
diagram shows a
Kappa 54a amplifier set
for tri-mode operation
to drive a front pair of
tweeter/midrange
systems and a single
rear subwoofer.
REM
R
–
–
+
+
L
R
–
–
+
+
L
+
-
+
-
+
-
LF
System
+
-
RF
System
Set Front Mode
To STEREO
(on top panel)
Set Front Filters
To HP & F+R (on AUX)
(on top panel)
Set Rear Mode
To STEREO
(on top panel)
KAPPA 54a
(rear panel)
LR Speaker
RR Speaker
Set Rear Filter
To FLAT
(on top panel)
A P P L I C A T I O N S
