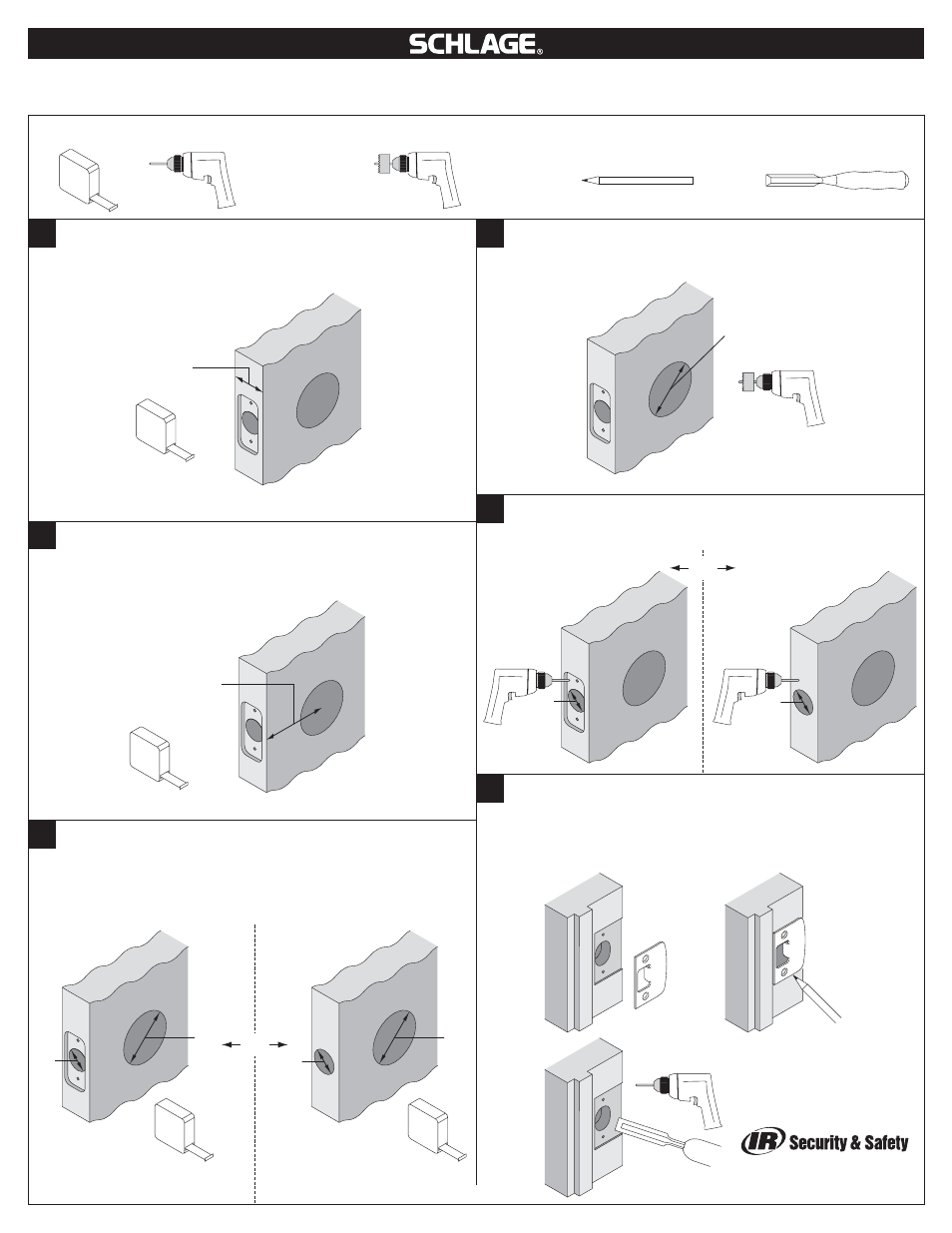

FE575/FE595 Door Preparation Instructions

For Door With Existing Holes

Measure Door Width

If the door is thinner than 1

³⁄₈” or thicker than 1³⁄₄”, then the lock will not

fit properly on the door.

1

1

³⁄₈” to 1³⁄₄”

Measure for Backset

If existing backset is not 2

³⁄₈” or 2³⁄₄”, then the lock will not fit properly

on the door.

2

2

³⁄₈” or 2³⁄₄”

Measure Hole Sizes

If hole sizes are larger than those shown, then the lock will not fit
properly on the door.
If hole sizes are smaller than those shown, see steps 4 and 5.

3

2

¹⁄₈”

⁷⁄₈”

2

¹⁄₈”

1”

OR

Tools Needed

If Needed, Enlarge Hole in Door

If hole in door is smaller than 2

¹⁄₈”, then use 2¹⁄₈” hole saw to enlarge

hole.

4

2

¹⁄₈”

If Needed, Enlarge Hole in Door Edge

If hole in door edge is smaller than

⁷⁄₈”, then use ⁷⁄₈” or 1” drill bit to

enlarge hole.

5

1”

OR

6

©2005 Ingersoll-Rand Company
Printed in U.S.A
Rev. 11/05

Tape

Meas

ure

Tap

e

Meas

ure

Tap

e

Measu

re

Tap

e

Measu

re

Drill Bits Needed:
¹⁄₈”, ⁷⁄₈”, 1”

2¹⁄₈” Hole Saw

Pencil

Chisel

Tap

e

Measure

Check Strike (Door Jamb) Preparation

a.

Place new strike against door jamb.

b.

If strike does not fit properly, use pencil to trace around strike and
mark hole positions.

c.

If needed, use chisel and drill to correct door jamb preparation.

a

c

b

2

¹⁄₈” Hole Saw
