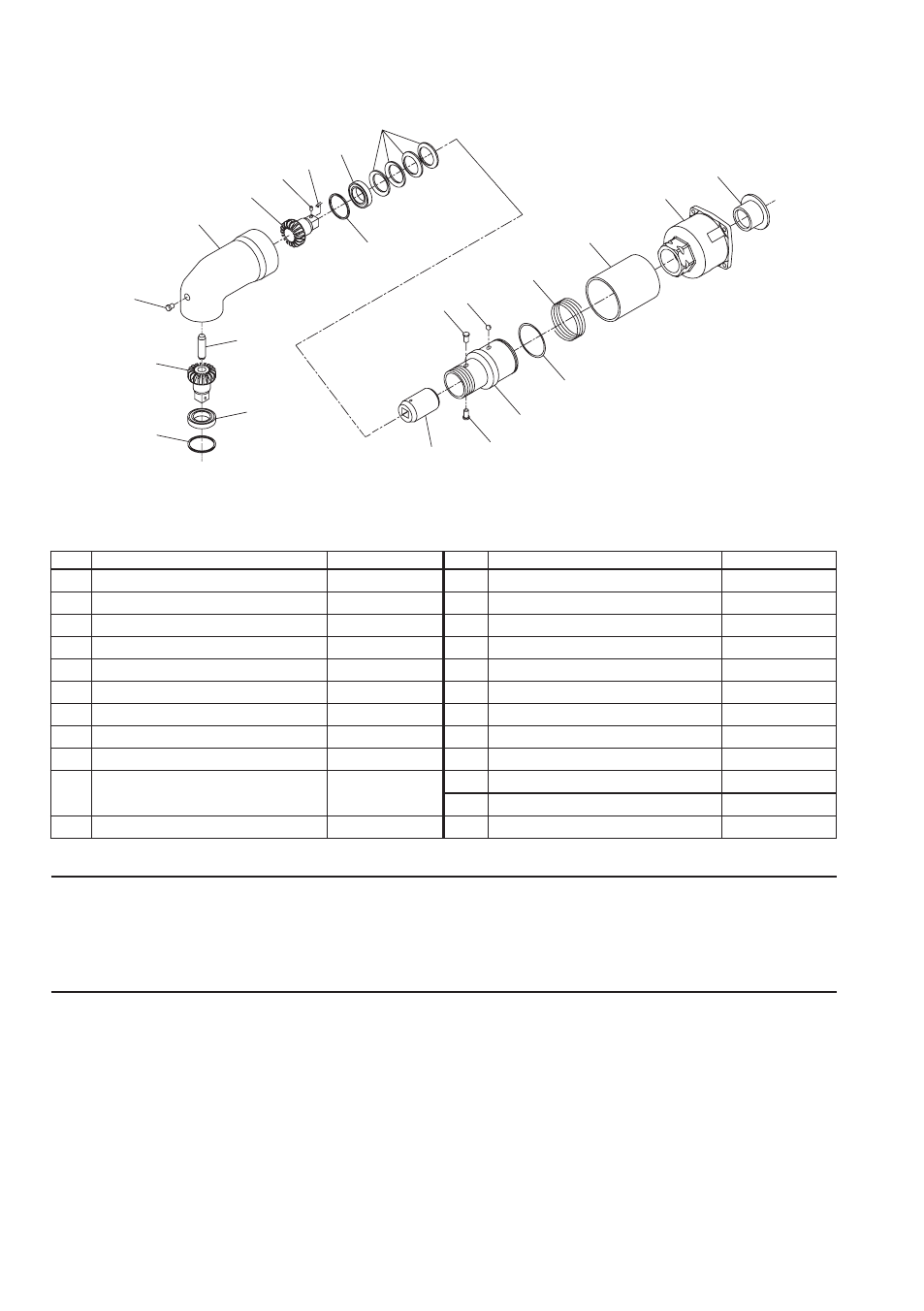

Model 2934B9 Air Impact Wrench with No. 2934A90 Angle Attachment
100
101
102
103
104
105
106
107
107
108
109
110
111
112
113
114
116
117
118
119
115
115
(Dwg. TPC357-1)
The 2934 Series Air Impact Wrench can be furnished with a 1” square drive 2934A90 Angle Attachment and when so furnished is designated
as 2934B9. Following are the parts used only in the 2934B9. All parts not listed are the same as for a 2934 Series Air Impact Wrench with Inside
Trigger Handle, Side Spade Handle and a 1” square drive standard length Anvil.
Item Part Description Part Number Item Part Description Part Number
100 Hammer Case Assembly 2934-A827 109 Bevel Pinion Driver 2934A90-563
101 Hammer Case Bushing 2934-641 110 Bevel Pinion Clamp Washer (4) 808-207
* Hammer Case Label WARNING-2-99 111 Bevel Gear 436A90-601
Angle Attachment Assembly 2934A90 112 Bevel Gear Spindle 436A90-607
102 Angle Housing Assembly 436A90-A600 113 Bevel Gear Bearing Retainer 436A90-632
103 Grease Fitting 130SR-188 114 Angle Housing Connector 436A90-680
104 Bevel Pinion Assembly 436A90-A602 115 Connector Lock Pin (2) 436A90-609
105 Retainer Plunger 8U-715 116 Connector Retaining Sleeve 436A90-681
106 Retainer Plunger Spring 5UHD-718 117 Retaining Sleeve Spring 436A90-682
107 Bevel Pinion Bearing or Bevel Gear
436A90-593
118 Connector Retaining Sleeve Stop 3BM-303
Bearing (2) 119 Connector Retaining Ball (3) 8U-722
108 Bevel Pinion Spacer 436A90-608 * Socket Retainer RR10015S
* Not illustrated.
Parts and Maintenance
When the life of the tool has expired, it is recommended that the tool be disassembled, degreased and parts be separated by material so
that they can be recycled.
Tool repair and maintenance should only be carried out by an authorized Service Center.
Refer all communications to the nearest Ingersoll Rand Office or Distributor.
Related Documentation
For additional information refer to:
Air Impact Wrench Product Safety Information Manual 04580916.
Air Impact Wrench Product Information Manual 04584835.
Air Impact Wrench Maintenance Information Manual 04584298.
Manuals can be downloaded from www.ingersollrandproducts.com.
