56

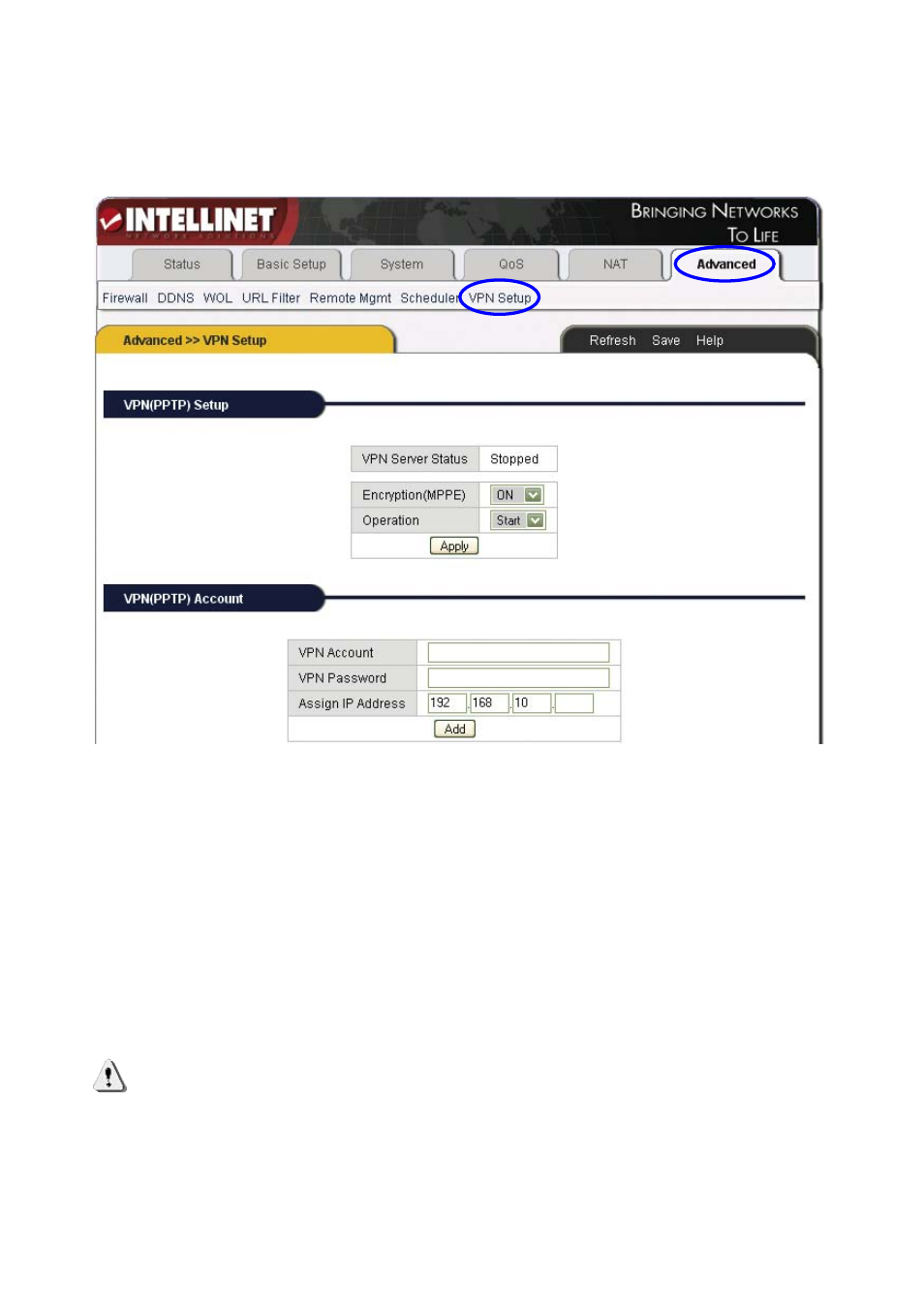

4.10.7 VPN Setup
Click “Advanced” ➝ ”VPN Setup.”
The device allows five users to establish a VPN tunnel (PPTP) to the router. A VPN
tunnel is a secure and encrypted connection between the client and the server. The
router supports the PPTP (Point-to-Point Tunneling Protocol) implementation of
VPN with optional Microsoft Point-to-Point Encryption (MPPE). You can set up five
different users with different passwords. Each user gets its own IP address. The
connection state of each user is shown on this page, as well.
Setup Method:
1. Start the VPN Service: Select “Operation” ➝ “Start” and click “Apply.” The router
performs a restart, after which the VPN server is active.
2. Create VPN Users: Enter a VPN username and password. Assign an IP address
to the username (e.g., 192.168.1 0.200). Click “Add.” Repeat for additional users.
3. Delete VPN Users: Select the user in the table shown under VPN (PPTP)
Account and click “Del.”
NOTE: Save the router configuration after completion; otherwise, the
configuration will be lost after the router is restarted.
