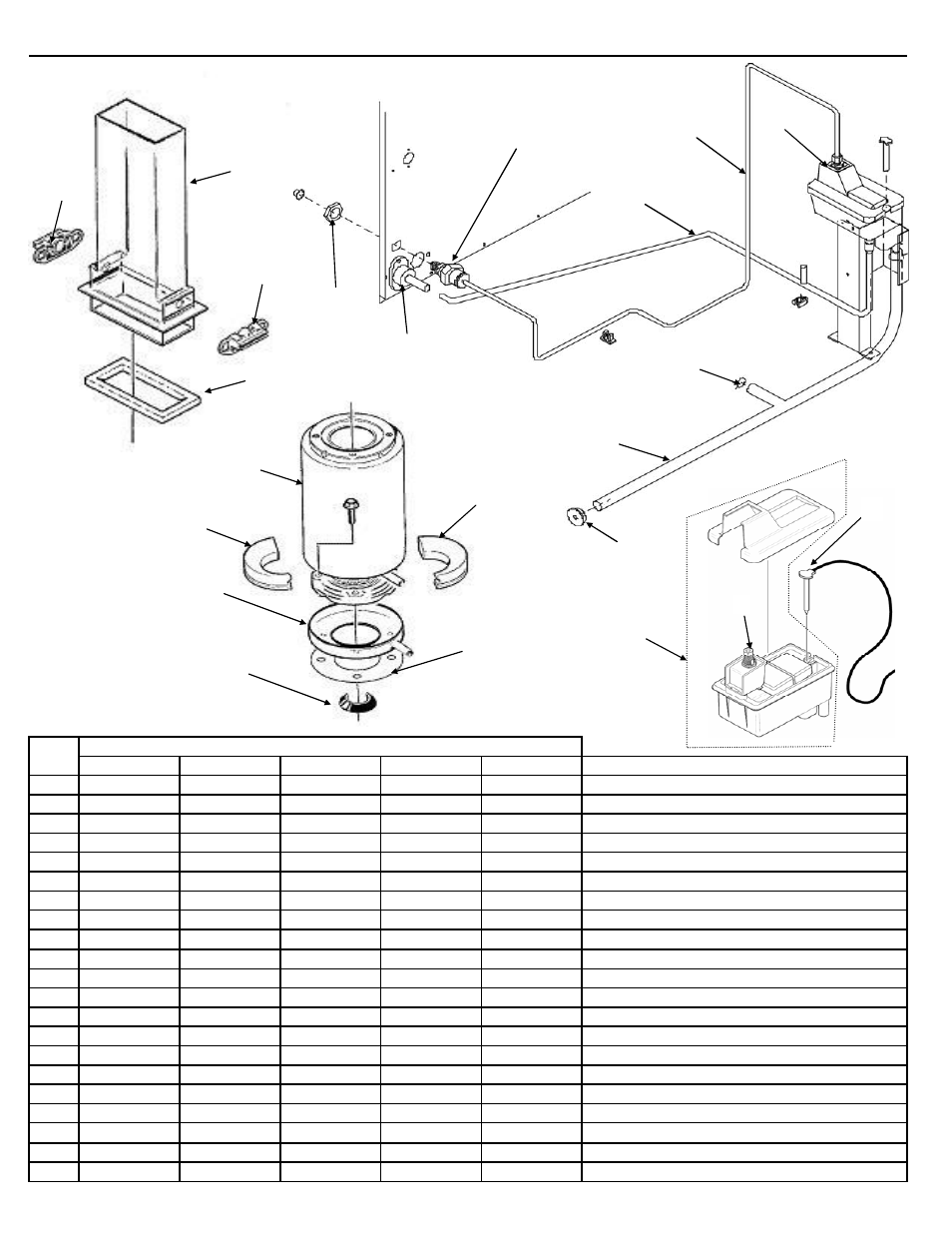

MFI Series Service Parts Down Chute/Water System
Item
No. MFI0500AS MFI0805AS MFI0800AS MFI1255AS MFI1256AS Description
1 1011380-15 1011380-15 1011380-15 1011380-15 1011380-15 Float Assembly (Does Not Include Sensor)
2 1011380-16 1011380-16 1011380-16 1011380-16 1011380-16 Float Valve Only
3 1011380-78 1011380-78 1011380-78 1011380-78 1011380-78 Water Level Sensor
4 1011380-06 1011380-06 1011380-06 1011380-07 1011380-07 Ice Chute Lower
5 1011380-223 1011380-223 1011380-223 1011380-223 1011380-223 Bin Controls Assembly (Set of 2)
6 1011380-176 1011380-176 1011380-176 1011380-176 1011380-176 Chute Gasket
7 1011380-220 1011380-220 1011380-220 1011380-220 1011380-220 Evaporator Water Inlet Tube
8 1011380-84 1011380-84 1011380-84 1011380-84 1011380-84 Rubber Cap
9 1011380-03 1011380-03 1011380-03 1011380-03 1011380-03 Hose Clamp
10 1011380-25 1011380-25 1011380-25 1011380-25 1011380-25 Overflow Tube
11 1011380-23 1011380-23 1011380-23 1011380-23 1011380-23 Drain Fitting
12 1011351-71 1011351-71 1011351-71 1011351-71 1011351-71 Inlet Tubing (4 feet required)
13 1011351-31 1011351-31 1011351-31 1011351-31 1011351-31 Pal Nut
14 1011351-74 1011351-74 1011351-74 1011351-74 1011351-74 Water Inlet Fitting
15 1011351-75 1011351-75 1011351-75 1011351-75 1011351-75 Male Connector
16 1011382-09 1011382-09 1011382-09 1011380-172 1011380-172 Evaporator
17 1011380-27 1011380-27 1011380-27 1011380-27 1011380-27 Drip Pan
18 1011380-83 1011380-83 1011380-83 1011380-83 1011380-83 Drip Pan Gasket
19 1011380-85 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
20 1011380-178 1011380-178 1011380-178 1011380-178 1011380-178 Insulation Collar
21 1011380-179 1011380-179 1011380-179 1011380-179 1011380-179 Insulation Collar
Model Number
1
2
4
5
5
6
8
9
10
11
7
13
14,15
17
16
1
12
18
19
20
21
3
