11
SN 29343136 DPS-5.2E

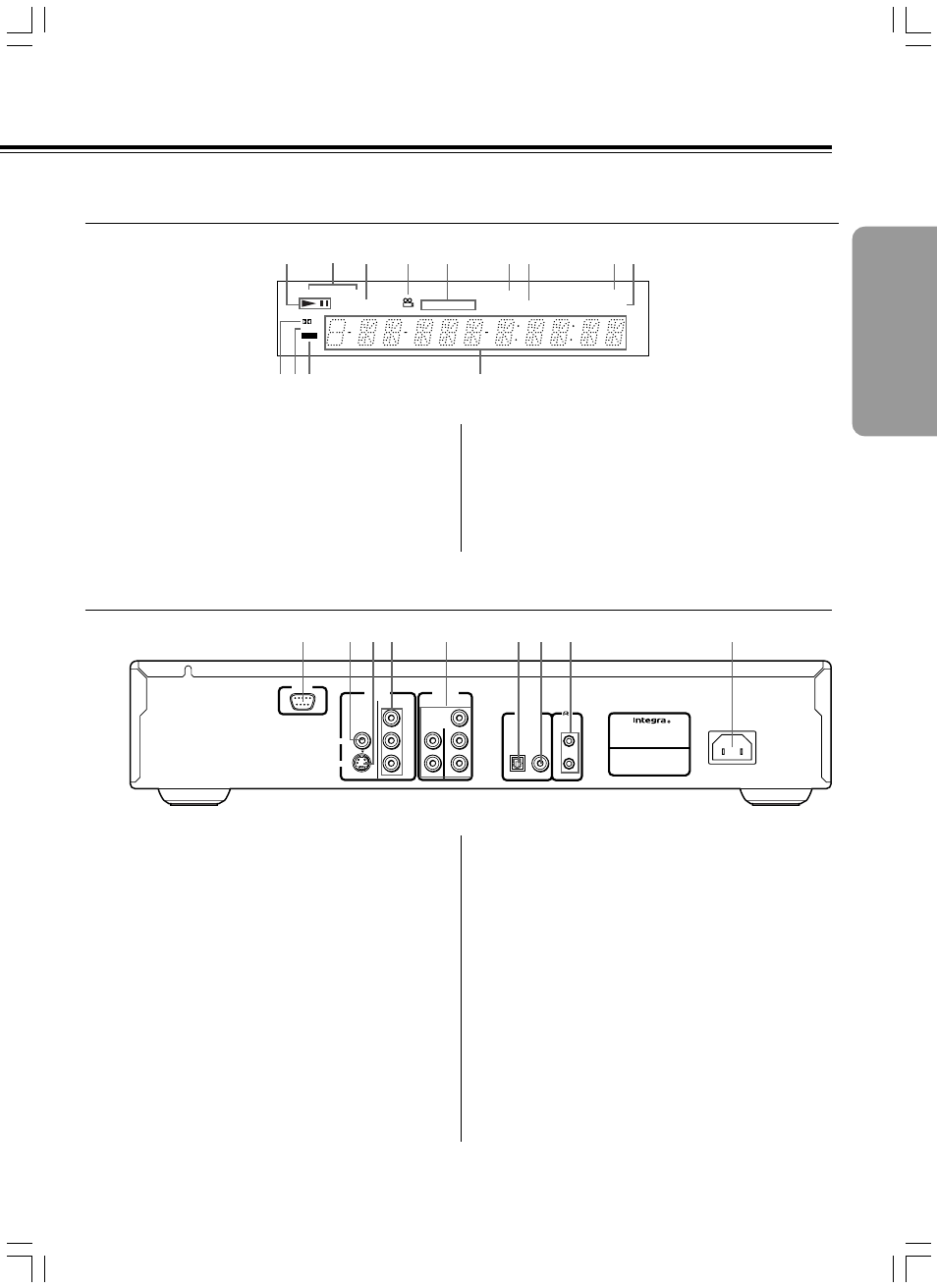

■ Rear panel
■ Display
TITLE CHAPTER TRACK REMAIN
LAST
COND.
DTS
REPEAT DVD V C D
D
GUI
1 2 3 4 5 6 7 8 9
~ = - 0
L
MONO
R
L
R
VIDEO
OUTPUT
Y
P B
P R
COMPONENT
OPTICAL COAXIAL
REMOTE
CONTROL
ANALOG
OUTPUT
DIGITAL
OUTPUT
VIDEO
S VIDEO
RS-232
AC INLET DVD PLAYER
MODEL NO. DPS-5.2
3 2 1 4 5 6 7 8 9
1 £/8 indicator
2 Inserted disc indicator
3 TITLE indicator
4 Angle icon indicator
5 CHAPTER/TRACK indicator
6 REPEAT indicator
7 REMAIN indicator
8 LAST indicator
9 COND. indicator
0
ŸD indicator
- DTS indicator
= GUI (Graphical User Interface) indicator
Indicates an on-screen menu operation is being performed. On-
screen menu helps you set up the player.
~ Multifunctional indicator
(e.g. operating status and error messages)
1 RS-232 port
This port is to be used in conjunction with an external controller to
control the operation of the DPS-5.2 using an external device.
2 VIDEO OUTPUT VIDEO jack [13]
Connect to the video input on a TV or monitor or AV amplifier or
receiver with video input capability.
3 VIDEO OUTPUT S VIDEO jack [13]
If your TV or monitor has an S video input, clear picture
reproduction is possible by connecting the player to your TV or
monitor via the S Video jack.
You can switch between [S1] and [S2] S-video output from the
Setup menu.
4 VIDEO OUTPUT COMPONENT jacks [13]
If your TV or monitor has component video inputs, you can
produce a higher quality picture on your TV or monitor by
connecting to the component video outputs on this unit.
5 ANALOG OUTPUT jacks [13, 14]
Use to output two-channel audio (analog) to the audio stereo
inputs on a TV or stereo amplifier. If you are connecting to a
receiver that has both digital and analog input jacks for DVD
player connection, it may be beneficial to make both connections.
6 DIGITAL OUTPUT OPTICAL jack [14]
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the optical output jack to an AV
amplifier or receiver.
7 DIGITAL OUTPUT COAXIAL jack [14]
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the coaxial output jack to an AV
amplifier or receiver.
8 z jack [14]
Use to connect this player to another component bearing the z
mark. This lets you control this unit as though it were a
component in a system.
9 AC INLET [15]
Use to connect the power cord to the wall outlet.
