11100 E. 45th Avenue
Denver, CO 80239 Phone: 1. 866. PURE. ICE
Fax:
303. 371.6296
www.iceomatic.com
®
Rev: A-01/09
Part: 7011
M
FI0
80
0/
08
06
/0
80
5
Fla
ke
Ic
e M
ak
er
M
FI0
80
0/
08
06
/0
80
5
F
la
ke
Ic
e M
ak
er

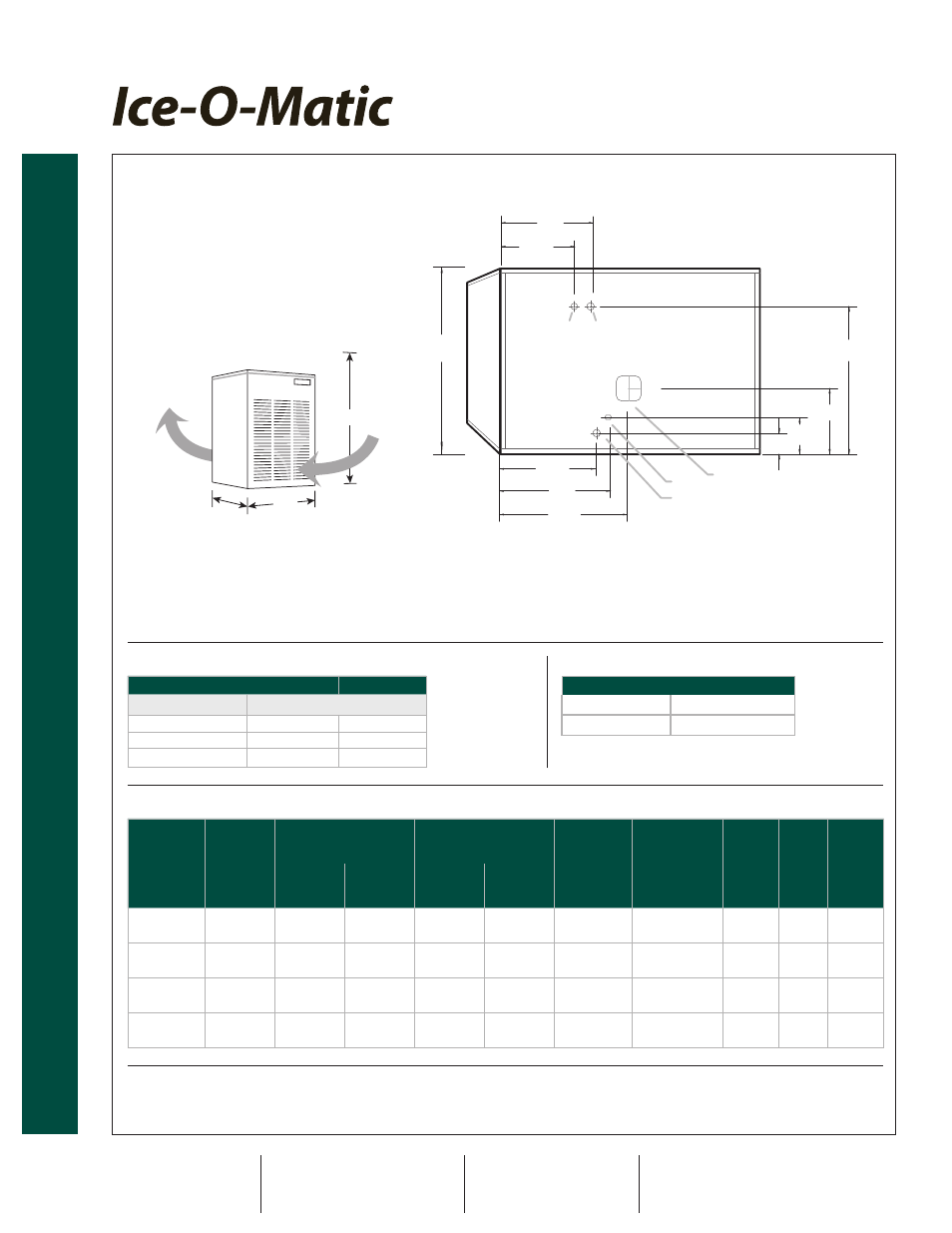

Air Cooled
Please note: air-cooled units require 6" (152 mm) clearance
for air intake and exhaust. Please note: air-cooled units
require 6" (152 mm) clearance for air intake and exhaust.
a. Ice maker potable water in, 3/8" Male Flare.
B. Drain, 3/4" FPT.
C. Hole for electrical connection.
d. Condenser drain (water cooled only)
1/2" FPT.
e. Condenser inlet (water cooled only)
3/8" FPT
Air-Out
Back
21"
(533 mm) 24"
(610 mm)
27" (686 mm)
Air
In-Front
27"
(686 mm)
18.80"
(478 mm)
9.43"
(240 mm)
21.66"
(550 mm)
20.84"
(529 mm)
5.25"
(133 mm) 3.00"
(76 mm)
12.43"
(316 mm)
15.53"
(394 mm)
17.80"
(452 mm) A. C.
B.
D. E.
Air/Water Cooled
Operating Requirements
Minimum Maximum
60 Hz
Ambient Temp. Range Air 50˚F (10˚C) 100˚F (38˚C)
Water Temp. 40˚F (4.4˚C) 80˚F (26.7˚C)
Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)
Dimensions
all Models
W x D x H (inches) 21 x 24 x 27
W x D x H (mm) 533 x 610 x 686
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable Condenser
MFI0800AS Air 760 (342) 595 (270) 12.0 - 4.9 115/60/1 19.5 30 7,400
MFI0805AS Air 760 (342) 595 (270) 12.0 - 4.1 230/50/1 10.1 15 7,400
MFI0806AS Air 760 (342) 520 (236) 12.0 - 4.9 208-230/60/1 10.2 15 5,600
MFI0806WS Water 810 (368) 585 (265) 12.0 82.3 3.8 208-230/60/1 10.2 15 4,400
NOTES:
Number of Wires: 3 (including ground)
Approx. Shipping Weight lbs (kg): MFI0800AS 205 (93) • MFI0805AS 205 (93) • MFI0806 205 (93)
Refrigerant Type: R404A
