Page 2: Water cooled/remote, Operating requirements, Dimensions, Specifications
11100 E. 45th Avenue
Denver, CO 80239
Phone:
303. 371.3737
Fax:
303. 371.6296
www.iceomatic.com
Rev:
A-05/08
Ice-O-Matic
™
®
Part:
1016

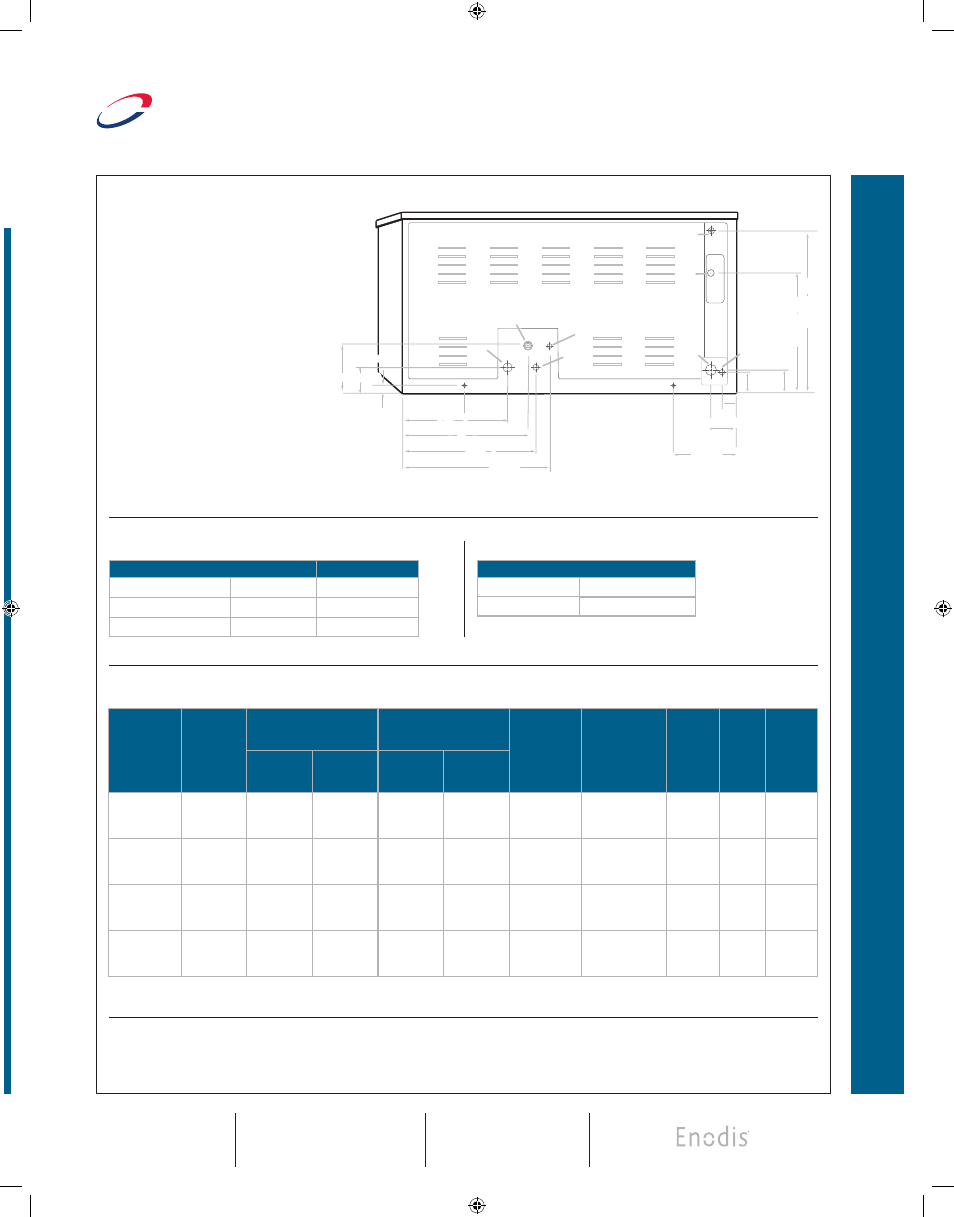

Water Cooled/Remote
Ice maker potable water in, 3/8" FPT.
A.
Ice maker water out, 3/4" FPT.
B.
Hole for electrical connections, 7/8".
C.
Electrical Junction Box.
d.
Condenser water in, 3/8" FPT.
E.
Condenser water out, 1/2" FPT.
F.
Liquid line, 3/8" male quick connect
G.
coupling for precharged line set
(remote only).
Discharge line, 1/2" male
H.
quick connect coupling for
precharged line set (remote only).
Hole for remote electrical
I.
connections, 7/8" (remote only).
1.75" (44.5 mm)
2.9"
(73.5 mm)
3.2"
(81.2 mm)
.75" (19 mm)
8.9"
(229 mm)
18"
(460 mm)
18"
(460 mm)
19.1"
(485 mm)
19.1"
(485 mm)
21.2"
(536 mm)
21.2"
(536 mm)
15"
(381 mm)
15"
(381 mm)
6.7" (170 mm)
6.7" (170 mm)
3.4"
(86.4 mm)
3.4"
(86.4 mm)
8.9"
(229 mm)
8.9"
(229 mm)
17.2" (565 mm) 17.2" (565 mm)
23.3" (565 mm) 23.3" (565 mm)
C.
F.
E.
G.
I.
H.
A.
B.
3.6" (92 mm)
D.
Water Cooled & Remote
Operating Requirements
Minimum
Maximum
Ambient Temp. Range Air
50˚F (10˚C)
100˚F (38˚C)
Water Temp.
40˚F (4.4˚C)
100˚F (38˚C)
Water Pressure
20 PSIG (1.4 BAR)
60 PSIG (4.1 BAR)
Dimensions
All Models
W x D x H (inches)
48 x 26 x 24
W x D x H (mm)
1,219 x 660 x 610
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable
Condenser
ICE2106R
Remote*
1,998 (908)
1,714 (779)
21.1
-
5.7
208-230/60/1
33.7
50
35,192
ICE2106W
Water
1,939 (881)
1892 (860)
24.9
110
4.3
208-230/60/1
25.3
30
33,970
ICE2107R
Remote*
1,991 (905)
1,716 (780)
21.5
-
5.6
208-230/60/3
23.2
25
35,077
ICE2107W
Water
1,953 (888)
1,847 (839)
26.5
151
4.3
208-230/60/3
16.6
20
33,179
*Requires Remote ERC 5061 Condenser and precharge line set.
NOTES:
Number of Wires:
3 (including ground)
Approx. Shipping Weight lbs (kg):
ICE2106R 340 (155) • ICE2106W 310 (141) • ICE2107R 340 (155) • ICE2107W 340 (155)
Refrigerant Type:
R404A
