3
GB
DAT A PL AT E
Dim en sions
wid th c m 4 3.5
h eig ht cm 32
d ep th c m 40
Vo lu m e lt. 5 6
Elec trica l
c on ne ctio ns
vo lta ge : 2 30 -2 40 V ~ 50 Hz
m axim u m po wer ab s orbe d
2 25 0W -24 00W
Dire ctive 2 0 02/4 0 /EC on the lab el
o f e lec tric o vens .
Stan d ard EN 5 030 4
EN ER G Y L AB EL
En e rgy c on sum p tion fo r N atu ra l
c on vec tio n – he a ting m o d e:
Co n vec tion m od e
De c la re d ene rg y co n sum ption for
F orc ed co nve c tion C la ss – hea ting
m od e: Mu lti-c ooking
Th is ap plianc e c on fo rm s to the
fo llowin g Europ ea n Ec o nom ic
Co m m unity d ire ctiv es :
- 2 00 6 /9 5 /EE C of 1 2/1 2/0 6 (Low
Vo ltage ) a nd su bse q uen t
a m e nd m ents;
-8 9/3 36 /EE C of 0 3 /05/89
(E le ctro m agn e tic Com pa tibility) an d
s ubs eq ue nt a m en dm e n ts ;
- 9 3/68/EE C o f 22/07/9 3 a n d
s ubs eq ue nt a m en dm e n ts .
- 2 00 2 /9 6 /EC
Electrical connection
! Ovens with a three-pole power supply cable are
designed to operate with alternated current at the
supply frequency and voltage indicated on the data
plate (at the bottom of the oven dashboard). The
earthing conductor of the cable is the yellow-green
conductor.
Two types of connection are provided:
Connection n° 1
Connecting the power supply cable to the mains.
Fit a normalized plug to the cable, which corresponds
to the load indicated on the data plate; if the cooker is
connected directly to the mains, an omnipolar circuit-
breaker with a minimum opening of 3 mm between the
contacts, suitable for the load indicated and
complying with current directives, must be installed
between the appliance and the mains (the earthing
wire must not be interrupted by the circuit-breaker).
The power supply cable must be positioned so that it
does not exceed room temperature by 50°C at any
point of its length. Before making the connection
check that:
• the circuit breakers or fuses of the home system
can support appliance load (see data plate);
• the power supply system has an efficient earthing
connection which complies with the provisions of
current regulations and the law;
• there is easy access to the socket or the omnipolar
circuit-breaker once the cooker has been installed.
! do not use reducers, adapters or shunts as these
could cause heating or burning.
Connection n° 2
Disposing of the plug.
! THIS APPLIANCE MUST BE EARTHED.
Ensure that before disposing of the plug itself, you
make the pins unusable so that it cannot be
accidentally inserted into a socket. Instructions for
connecting cable to an alternative plug:
! the wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow -Earth
Blue -Neutral
Brown -Live
If the colours of the wires in the mains lead do not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows.
Connect Green & Yellow wire to terminal marked “E”
or 6 or coloured Green or Green & Yellow.
Connect Brown wire to terminal marked “L” or
coloured Red. Connect Blue wire to terminal marked
“N” or coloured Black. If a 13 amp plug (BS 1363) is
used it must be fitted with a 13 amp fuse.
A 15 amp plug must be protected by a 15 amp fuse,
either in the plug or adaptor or at the distribution
board.If you are in any doubt about the electrical
supply to your machine, consult a qualified electrician
before use.

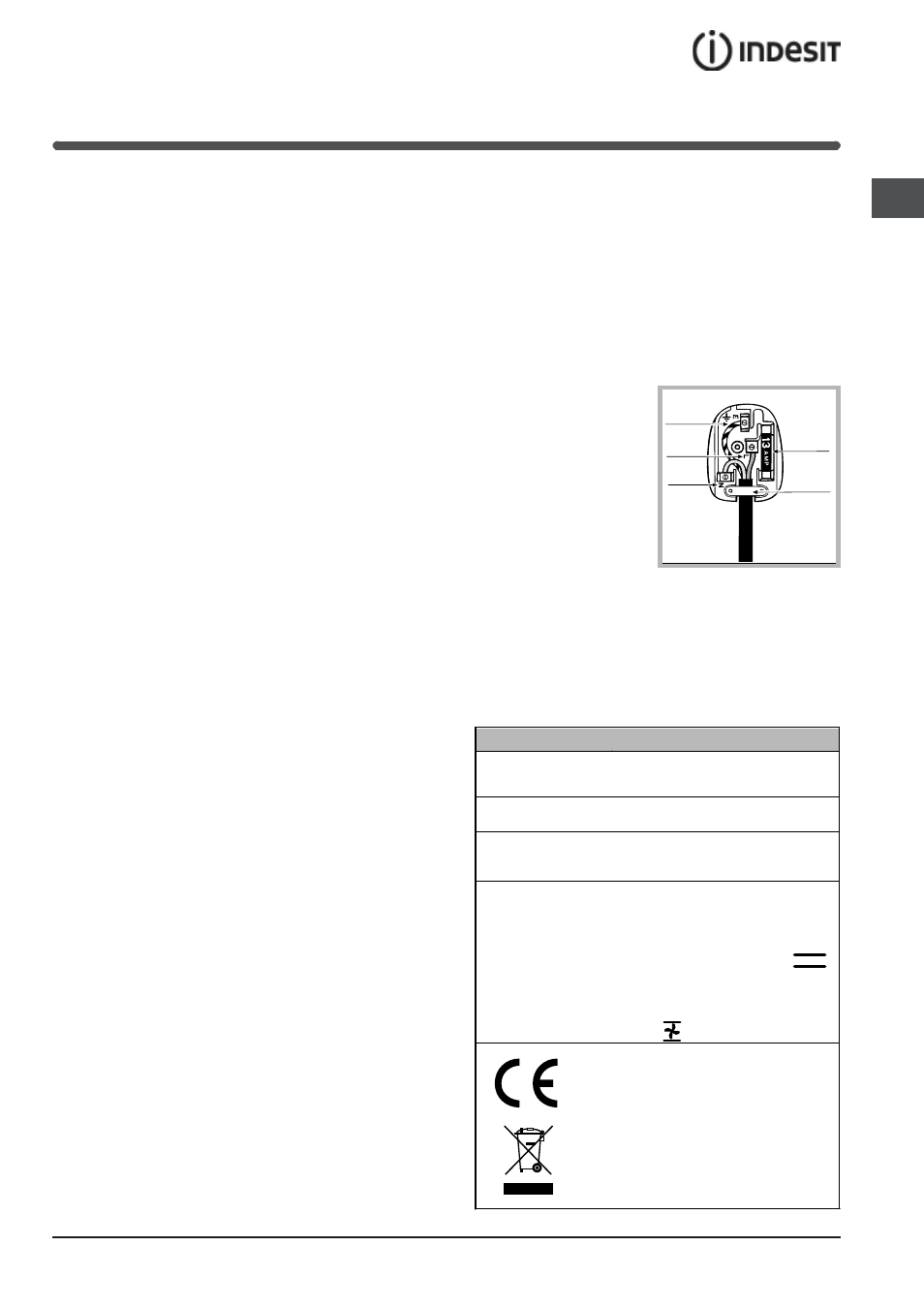

How to connect an alternative plug
The wires in this mains
lead are coloured in
accordance with the
following code:
BLUE “NEUTRAL” (N)
BROWN “LIVE” (L)
GREEN AND YELLOW
“EARTH” (E)
Disposing of the appliance
When disposing of the appliance please remove the
plug by cutting the mains cable as close as possible
to the plug body and dispose of it as described
above.
! The plug and socket must be easily accessible.
GREEN &
YELLOW
BROWN
BLUE
13 amp fuse
CROSS-BAR
CORD GRIP
