INFINITY CLASSIA PSW310W (120V)
S
YSTEM
C
ONNECTIONS

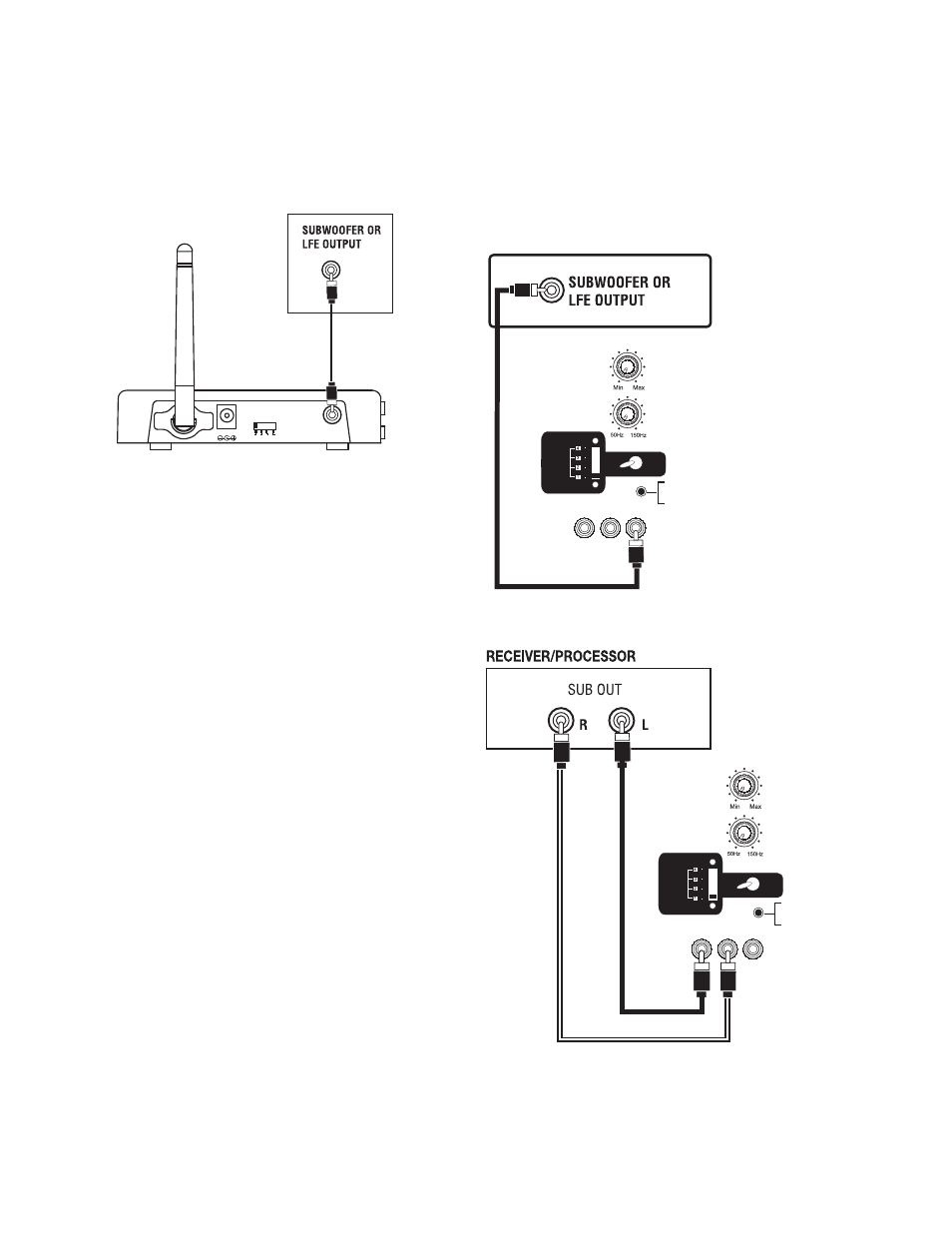

Choose either Wireless or Wired connection, then follow the appropriate instructions.
WIRELESS
If your receiver/processor does not contain a Dolby Digital
or DTS processor but has subwoofer outputs:
Line In Sub In
LFE L R
Crossover
[Hz]
Level
Wireless
ID Code ff O n O
Low-Pass
Green: Sub On
Orange: Sub On and
Wireless Link Active
Red: Standby
Crossover
[Hz]
Level
Line In Sub In
LFE L R
ff O n O
Low-Pass
Wireless
ID Code ff O n O
Low-Pass
Green: Sub On
Orange: Sub On and
Wireless Link Active
Red: Standby
Connecting the Subwoofer for Wired Applications
If you have a Dolby ® Digital or DTS ® receiver/processor with
a low-frequency effects (LFE) or subwoofer output:
NOTE: If your receiver/processor has only one sub out, you
may use either the L or R input.
WIRED
Connecting the Subwoofer for Wireless Applications
Step 1.
Connect a subwoofer cable from the subwoofer or LFE output of
your receiver to the Sub In
H on the transmitter.
Step 2.
Plug the transmitter module into the wall outlet, and connect the
included power supply and power cord to the transmitter
F. Make
sure the Transmitter Antenna
E is extended upward.
Step 3.
Set the ID code on the transmitter and subwoofer (
G and §
) to
the same position, as described on page 4. When connected properly,
the LED ¢ on the rear of the subwoofer will be orange.
Step 4.
Set the Low-Pass Selector ∞ to the “Off” position.
NOTE: Some receivers have two subwoofer outputs. In that case, use
either one of the connectors.
Sub In
ID
CODE
DC18V
1 2 3 4
