16 Assembly
10

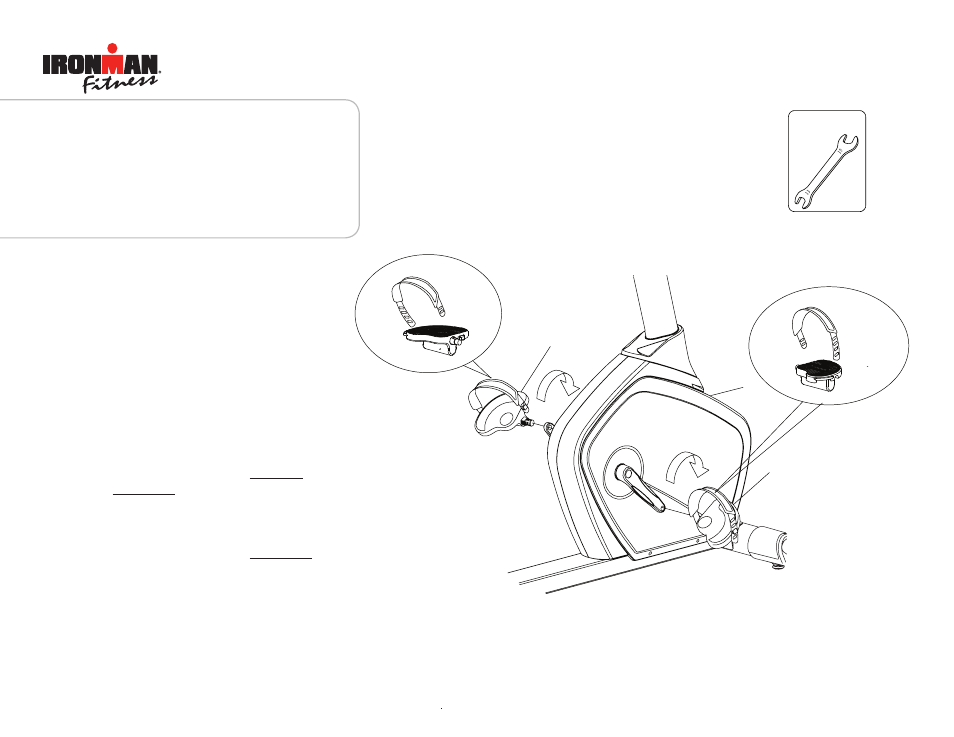

ASSEMBLY FOR PEDALS
Step 1:
Attach left pedal strap (l1) to left
pedal (l-l) and right pedal strap (l2)
to right pedal (l-R).
Step 2:
Thread the left pedal (l-l) into the
pedal crankshaft in the counter-
clockwise direction.
Step 3:
Thread the right pedal (l-R) into the
pedal crankshaft in the clockwise
direction.
A1
L-(L)
L-(R)
L-(L)
L1
L-(R)
L2
CLOCKWISE
COUNTER-CLOCKWISE
Use Tool
15mm
13mm
